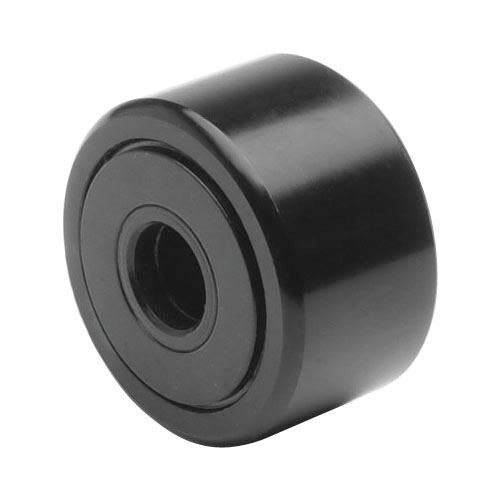

Smith Bearing® YR-3/4-X Cylindrical Yoke Type Needle Bearing Cam Follower, 1/4 in Dia Bore, 3/4 in Dia x 1/2 in W Roller, 2140 lb Dynamic/4170 lb Static Load, 52100 Steel Roller
Yoke type needle roller bearings are recommended where running loads and shock loads are moderate. Manufactured from high alloy bearing quality steel.
-
BrandSmith Bearing®
-
UPC651041104259
-
Manufacturer Part NumberYR-3/4-X
-
CountryUSA
-
Load Capacity2140 lb Dynamic/4170 lb Static
-
Closure TypeSealed
-
TypeCylindrical Yoke Type
-
Roller Diameter3/4 in
-
Roller Material52100 Steel
-
Roller Width1/2 in
-
SeriesYR-X
-
Bore Diameter1/4 in
-
Overall Width9/16 in
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 11Y185 |
-
UNSPSC31171530
-
Warranty12 months
-
Catalog
-
Full Engineering Drawing
