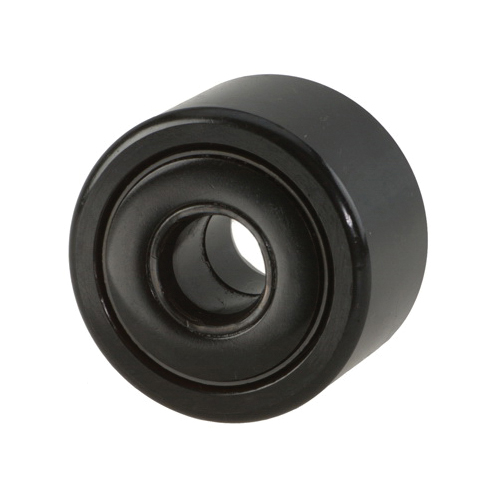

Koyo YCRS-36 Inch Series Uncaged Yoke Type Needle Bearing Track Roller, 5/8 in Dia Bore, 2-1/4 in Dia x 1-1/4 in W Roller, 7800 lbf Dynamic/16500 lbf Static Load
Track rollers (also known as cam followers) are characterized by their thick-walled outer rings that run directly on a track. The thick outer rings permit high load-carrying capability while minimizing both distortion and bending stresses. Sealed designs with internal thrust washers help extend service life under conditions of infrequent lubrication.
-
BrandKoyo
-
UPC605790189067
-
Manufacturer Part NumberYCRS-36
-
CountryUSA
-
Load Capacity7800 lbf Dynamic/16500 lbf Static
-
Temperature Rating-25 to 225 deg F
-
FinishBlack Oxide
-
Maximum Speed1700 rpm Grease
-
Closure TypeSealed
-
TypeUncaged Yoke Type
-
Roller Diameter2-1/4 in
-
Roller Width1-1/4 in
-
SeriesYCRS Inch Series
-
Bore Diameter5/8 in
-
Overall Width1-5/16 in
- Non-separable unit with outer ring, a full complement of needle rollers, inner ring, self-lubricating resin internal thrust washers and two retaining washers securely fastened to the inner ring
- Tolerance limits for outer diameters of stud and outer ring refer to "single mean diameter"
- Seals in counter bores of outer ring seal against the retaining washers, retain lubricant and exclude foreign matter
- High load-carrying capability with minimized distortion and bending stresses
- Extended service life under conditions of infrequent re-lubrication
-
Alternative Part NumberYCRS36PBL449
-
UNSPSC31171541
-
Standards/ApprovalsANSI/ABMA 18.2
-
