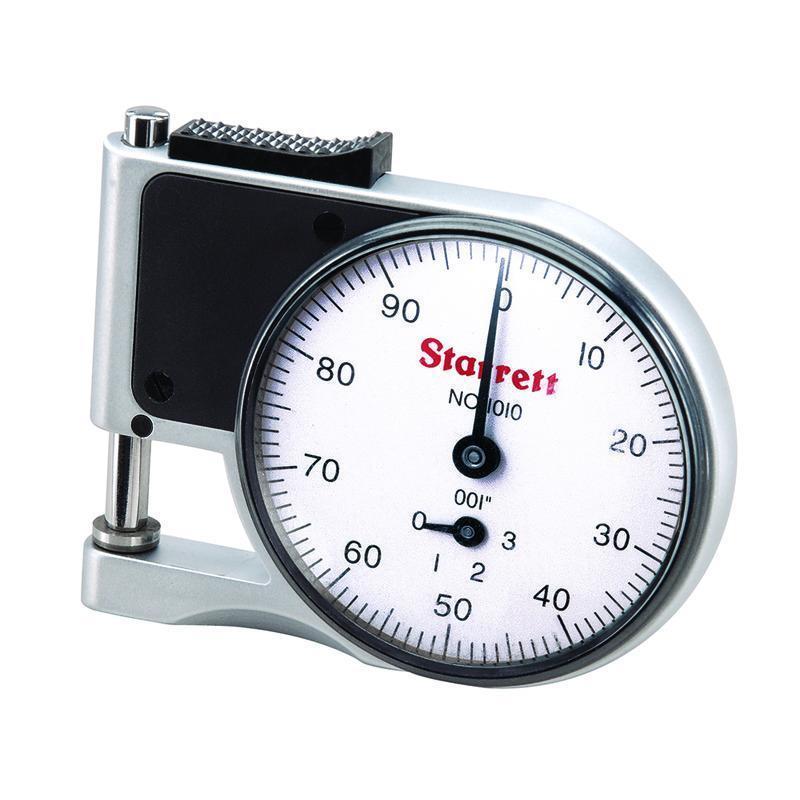

Starrett DIAL INDICATOR POCKET GAGES STR 1010-Z
Handy pocket gage is approximately the size of a thin pocket watch. Ideal for inspectors, purchasing agents and salespeople to check the size of materials up to 3/8" or 9mm thick. The gage fits naturally in the curve between the thumb and index finger. A slight pull on the serrated top plate raises the spindle. 0-.375" Range, 0-100 Dial, .001" Grad, Flat Contacts.
-
BrandStarrett®
-
UPC049659531145
-
Manufacturer Part Number1010Z
-
CountryUSA|Canada
-
FinishPolished Chrome
-
MaterialSteel
-
Throat Depth1/2 in
-
Measuring Range3/8 in
-
Resolution0.001 in
-
TypeFlat Contact
-
Graduations0.001 in
-
Series1010
-
Dial ColorWhite
-
Dial Size1-3/4 in
- Chrome plated case, unbreakable crystal dial cover
- Approximately the size of a thin pocket watch
- Gage has a small count hand for recording each revolution of large hand
- Furnished in attractive, protective case
- The gage fits naturally in the curve between the thumb and index finger
- A slight pull on the serrated top plate raises the spindle
- 0 - 100 dial reading
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 2ZUN4 |
| Fastenal | 0324747 |
-
Alternative Part Number53114
-
UNSPSC41111623
-
Standards/ApprovalsPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Package DescriptionEACH
