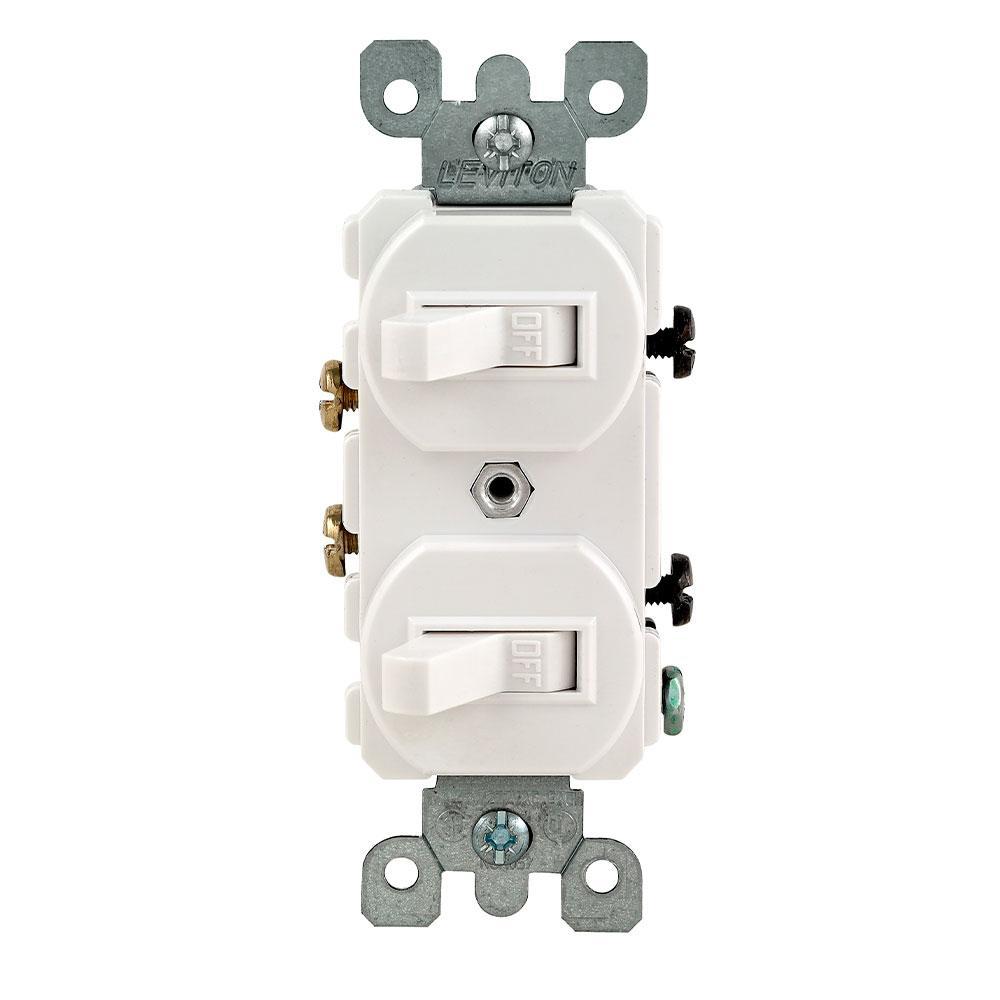

LEVITON WHITE TWO-S/POLE GROUNDED SWITCHES LEV 5224-2-W
With Leviton® extensive assortment of combination devices, you can fill a 1-gang space with two switches, a switch and receptacle, even a switch and GFCI. From sensor guide lights to multi-purpose styles and tamper resistant receptacles, we accommodate your every need. These devices come in a range of colors and are backed by a limited 2-years warranty. Built to last and designed to save space, these attractively styled devices are at home in any setting.
-
BrandLeviton®
-
UPC078477226483
-
Manufacturer Part Number5224-2W
-
CountryUSA
-
MaterialThermoplastic
-
ColorWhite
-
TypeDuplex Grounding
-
MountingSurface/Wall Plate
-
Contact Rating15 A at 120/277 VAC
-
Number of Poles1
-
Size4.2 in H x 1.62 in W x 16 in D
-
Operating Cycles100 Cycles
-
Electrical Ratings15 A, 125 VAC, 1800 W
-
EnclosureNEMA 5-15R
-
Environmental Conditions-40 to 120 deg C Operating Temperature
- AC quiet switches have silver cadmium oxide contacts and receptacles have double wire contacts for maximum conductivity
- Terminal screw accept up to #12 AWG copper or copper clad wire
- Fits standard wallboxes
- Break-OFF tabs on devices with switches permit conversion to separate feeds
- Steel strap and thermoplastic toggle actuator
- Side wired terminal
- Dielectric voltage withstands 1500 VAC for 1 min
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 5Z858 |
-
Alternative Part Number7365317
-
UNSPSC39122231
-
IDEA Index ID7365317
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C-73|UL 20 File No. E7458|CSA C22.2 No.111/152105/LR3413|NOM 057|NEMA WD-1/WD-6|UL94 V-2
-
Warranty2 Years Limited
-
