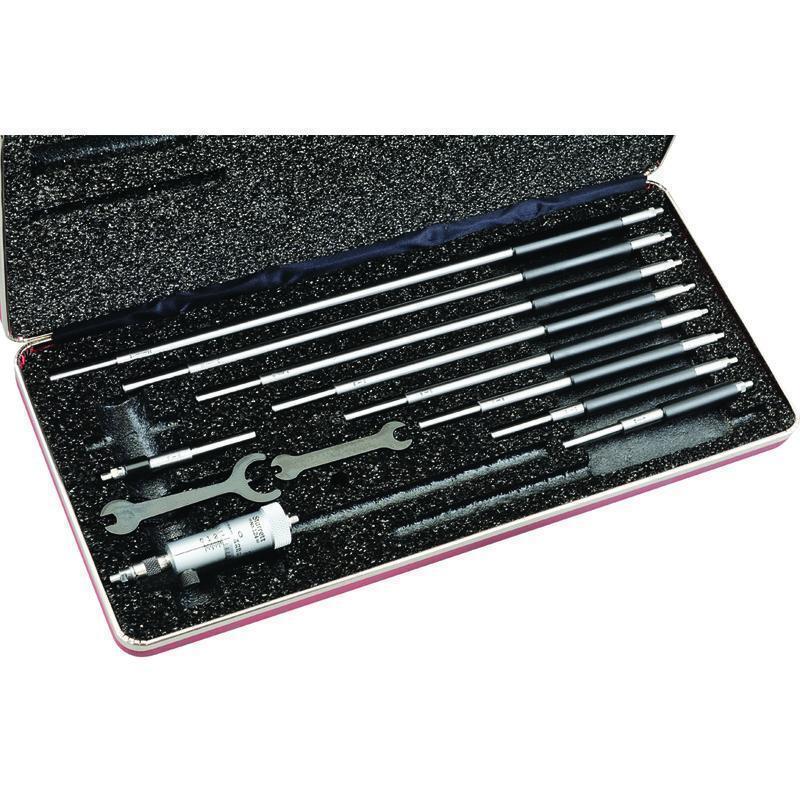

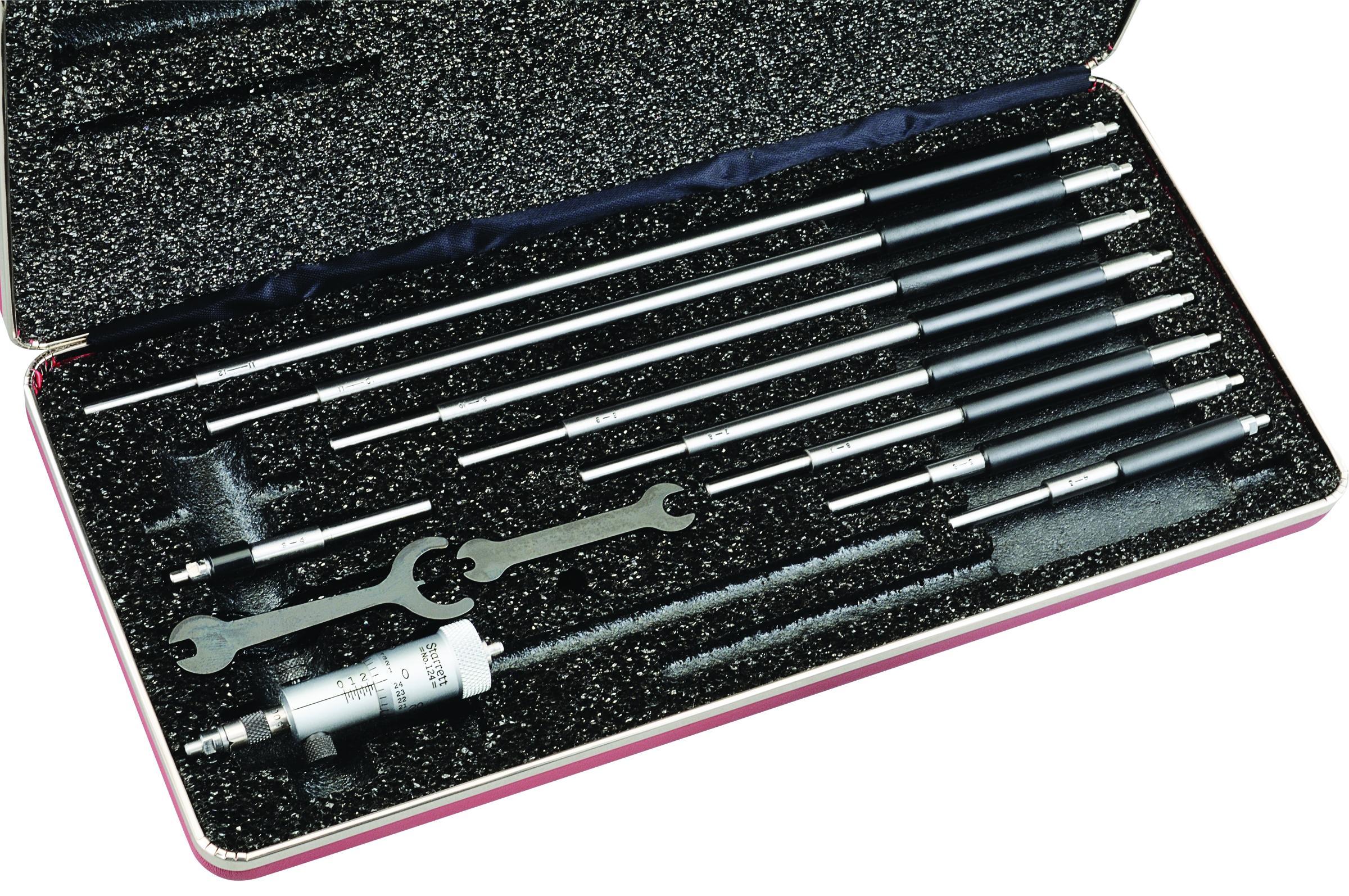

Starrett® 124BZ Solid Rod Inside Micrometer Set, 2 to 12 in, Graduations: 0.001 in, Steel
The Starrett 124 Solid -Rod Inside Micrometer Sets are the most popular inside micrometers because of their lightness, ease of use, and range. They are very useful for measuring inside diameters of cylinders and rings and measuring parallel surfaces. The desired range is obtained by assembling rods and spacing collars to the micrometer head. Measuring rods are provided with a shoulder that is set accurately in the micrometer head and locked in position. When assembling rods to the A and B heads, the reading line on the micrometer head should be lined up with the marking on each rod (except for the 50-75mm (2-3") rods). Rod diameters are approximately 6mm (1/4") on the A and B sizes, and approximately 8.5mm (11/32") on the C size. Each rod has individual length adjustment for the anvil by means of special wrenches furnished. 2-12" Range, .001" Grad, 10 Measuring Rods with Case.
-
BrandStarrett®
-
UPC049659505467
-
Manufacturer Part Number124BZ
-
CountryUSA
-
MaterialSteel
-
Measuring Range2 to 12 in
-
Resolution0.001 in
-
TypeSolid Rod
-
Graduations0.001 in
-
Accuracy+/-0.0001 in
-
Anvil TypeAdjustable
-
Series124
-
Dimensions1 in L x 1.4 in W x 11.3 in H
- Insulated rods marked with length
- Measuring rods are solid
- Hardened and ground anvils
- Quick-reading figures
- 6-1/2 in (165mm) long handle is available (124H)
- Features a shoulder to set in the micrometer head that locks in position to ensure accuracy
- Lightweight for ease of use
- 6-1/2 in (165mm) long handle is available (124H)
- One 1/2 in spacing collar
| Competitor Name | Competitor Part Number |
|---|---|
| MSC | 86405453 |
| Grainger | 2ZUC5 |
| Fastenal | 0324852 |
-
Alternative Part Number50546
-
UNSPSC41111601
-
IncludesInside Micrometer Head Only, Nut, .375-52, Body, English #124A B, Handle, Short, Screw, 110-52 Lock x 0.186 Long, 01535-0 Shell, Outside, Spindle Scr, .297-40, Cap, Shell, Collar, Small, Rod With Anvil 2-3 in, Rod With Anvil 3-4 in, Rod With Anvil 4-5 in, Rod With Anvil 5-6 in, Rod With Anvil 6-7 in, Rod With Anvil 7-8 in, Rod With Anvil 8-9 in, Rod With Anvil 9-10 in, Rod With Anvil 10-11 in, Rod With Anvil 11-12 in, Wrench #3, Point Wrench, Case Only, Steel/Vinyl and Rod PT With Nut
-
Package DescriptionEACH
-
Standards/ApprovalsPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Catalog
-

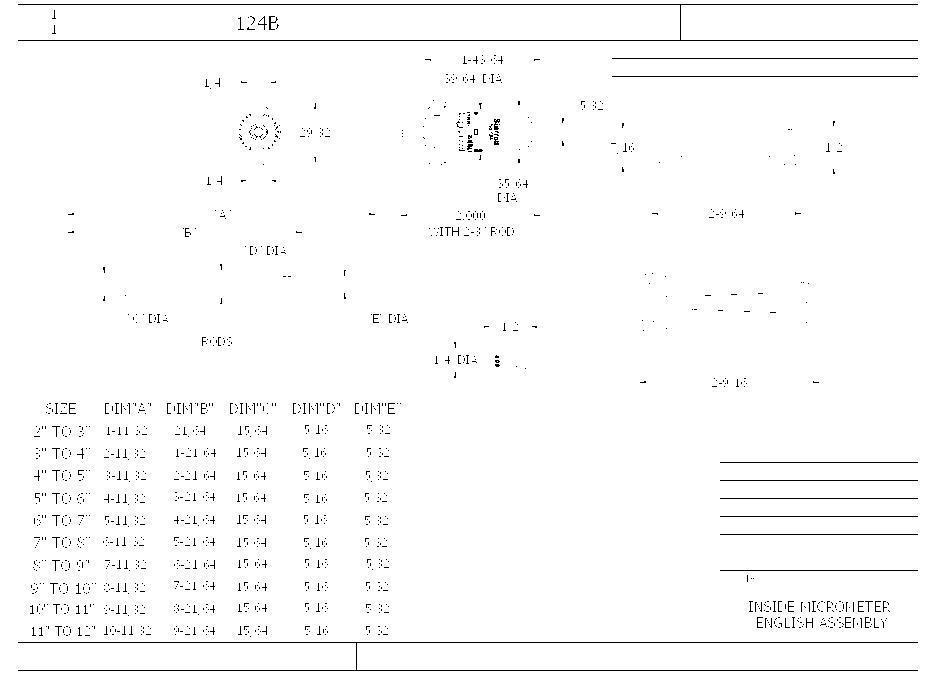

Full Engineering Drawing
