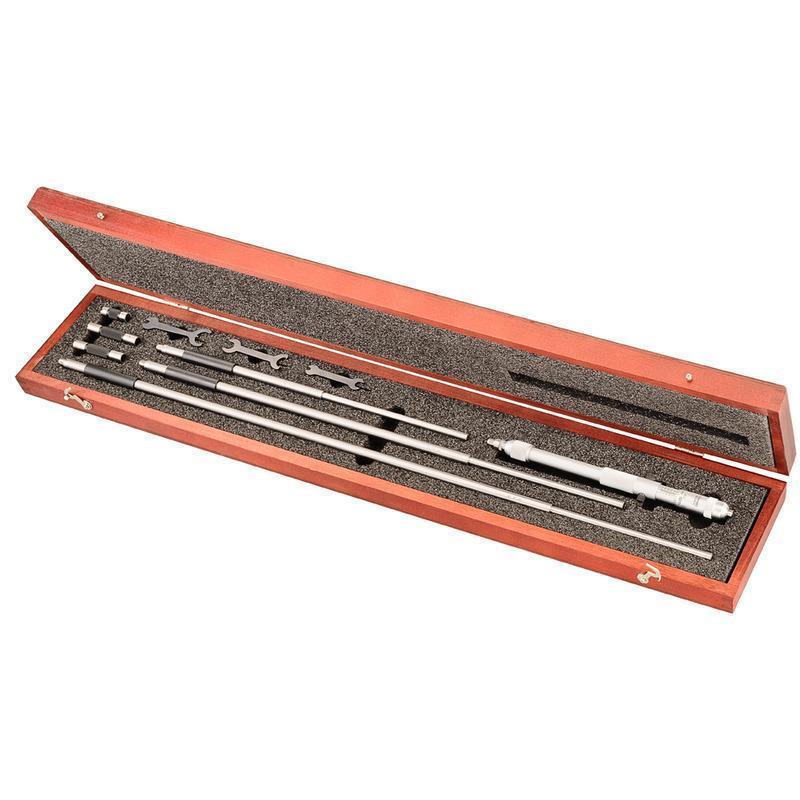

Starrett® 124CZ Solid Rod Inside Micrometer, 8 to 32 in, Graduations: 0.001 in, Steel
The Starrett 124 Solid -Rod Inside Micrometer Sets are the most popular inside micrometers because of their lightness, ease of use, and range. They are very useful for measuring inside diameters of cylinders and rings and measuring parallel surfaces. The desired range is obtained by assembling rods and spacing collars to the micrometer head. Measuring rods are provided with a shoulder that is set accurately in the micrometer head and locked in position. When assembling rods to the A and B heads, the reading line on the micrometer head should be lined up with the marking on each rod (except for the 2-3" and the 50-75mm rods). Rod diameters are approximately 1/4" (6mm) on the A and B sizes, and approximately 11/32" (8.5mm) on the C size. Each rod has individual length adjustment for the anvil by means of special wrenches furnished. 8-32" Range, .001" Grad, 4 Measuring Rods with Case.
-
BrandStarrett®
-
UPC049659505504
-
Manufacturer Part Number124CZ
-
CountryUSA
-
MaterialSteel
-
Measuring Range8 to 32 in
-
Resolution0.001 in
-
TypeSolid Rod
-
Graduations0.001 in
-
Accuracy+/-0.0001 in
-
Anvil TypeAdjustable
-
Series124
- Insulated rods marked with length
- Measuring rods are solid
- Hardened and ground anvils
- Quick-reading figures
- 6-1/2 in (165mm) long handle is available (124H)
- Features a shoulder to set in the micrometer head that locks in position to ensure accuracy
- Lightweight for ease of use
- 6-1/2 in (165mm) long handle is available (124H)
- One 1 in, two 2 in spacing collar
- 4 measuring rod
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 5UAA8 |
| MSC | 86405495 |
| Fastenal | 3123769 |
-
Alternative Part Number50550
-
UNSPSC41111601
-
IncludesMicrometer Head, #124C Body, ENGLISH, 0.375-52 Nut, Shell, Outside-ENG, Adjusting Shell, Barrel Spring, 0.297-40 Spindle SCR, Cap Shell, (2) Short Handle, 0.437-40 Nut, 07387-0 Chuck, Rod, #3 Wrench, (2) 2 in Large Collar, 1 in Small Collar, 8-14 Rod, ENGLISH, 14-20 in Inside Rod, 20-26 in Rod, 26-36 in Inside Rod, Rod Point Wrench, Spanner Wrench, Replacement Rod Point with Nut and Wood Case Only
-
Package DescriptionEACH
-
Standards/ApprovalsPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
-
Catalog
-
Owners/User Manual
-
Full Engineering Drawing
