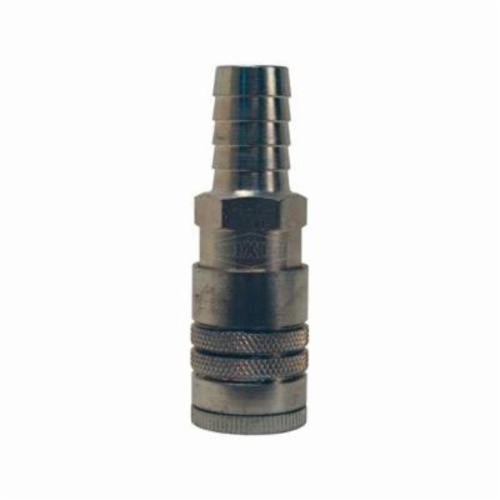

Dixon® DC1046 Air Chief Industrial Automotive Quick Connect Coupler, 1/2 in Nominal, Quick Connect Coupler x Hose Barb, 300 psi Pressure, Steel, Domestic
Dixon® DC1046 Air Chief Industrial Automotive Quick Connect Coupler, 1/2 in Nominal, Quick Connect Coupler x Hose Barb, 300 psi Pressure, Steel, Domestic
-
BrandDixon®
-
Manufacturer Part NumberDC1046
-
CountryUSA
-
Temperature Rating-40 to 250 deg F
-
FinishPolished Chrome
-
MaterialSteel
-
Pressure Rating300 psi
-
TypeAir Chief Industrial Automotive
-
Nominal Size1/2 in
-
Hex Size1 in
-
SeriesF Series
-
Dimensions1.19 in OD
-
Domestic/ImportDomestic
-
Length3.49 in
-
End StyleQuick Connect Coupler x Hose Barb
- Semi-automatic- pull sleeve to connect
- Couplers shut-off when disconnected
| Competitor Name | Cross-Reference Number |
|---|---|
| Fastenal | 91210145 |
-
UNSPSC40141734
-
Package Description10/BX
-
Standards/ApprovalsA-A-59439|MIL-C-4109F
-
WarrantyLimited
-
