NIBCO 817-1/2 817 Small Diameter Tube Cap, 1/2 in Nominal, DZR Copper, Domestic
The APOLLOPRESS® 817 Small Diameter Press Cap features a lead free dezincification resistant copper body and an EPDM O-Ring. APOLLOPRESS® products are manufactured utilizing proven ASTM materials and standards. Proudly made in the USA.
-
BrandApollo™
-
UPC683264778504
-
Manufacturer Part Number10077850
-
CountryUSA
-
Temperature Rating32 to 250 deg F
-
MaterialDZR Copper
-
Fitting/Connector TypeCap
-
Pressure Rating300 psi
-
TypeSmall Diameter
-
Nominal Size1/2 in
-
Series817
-

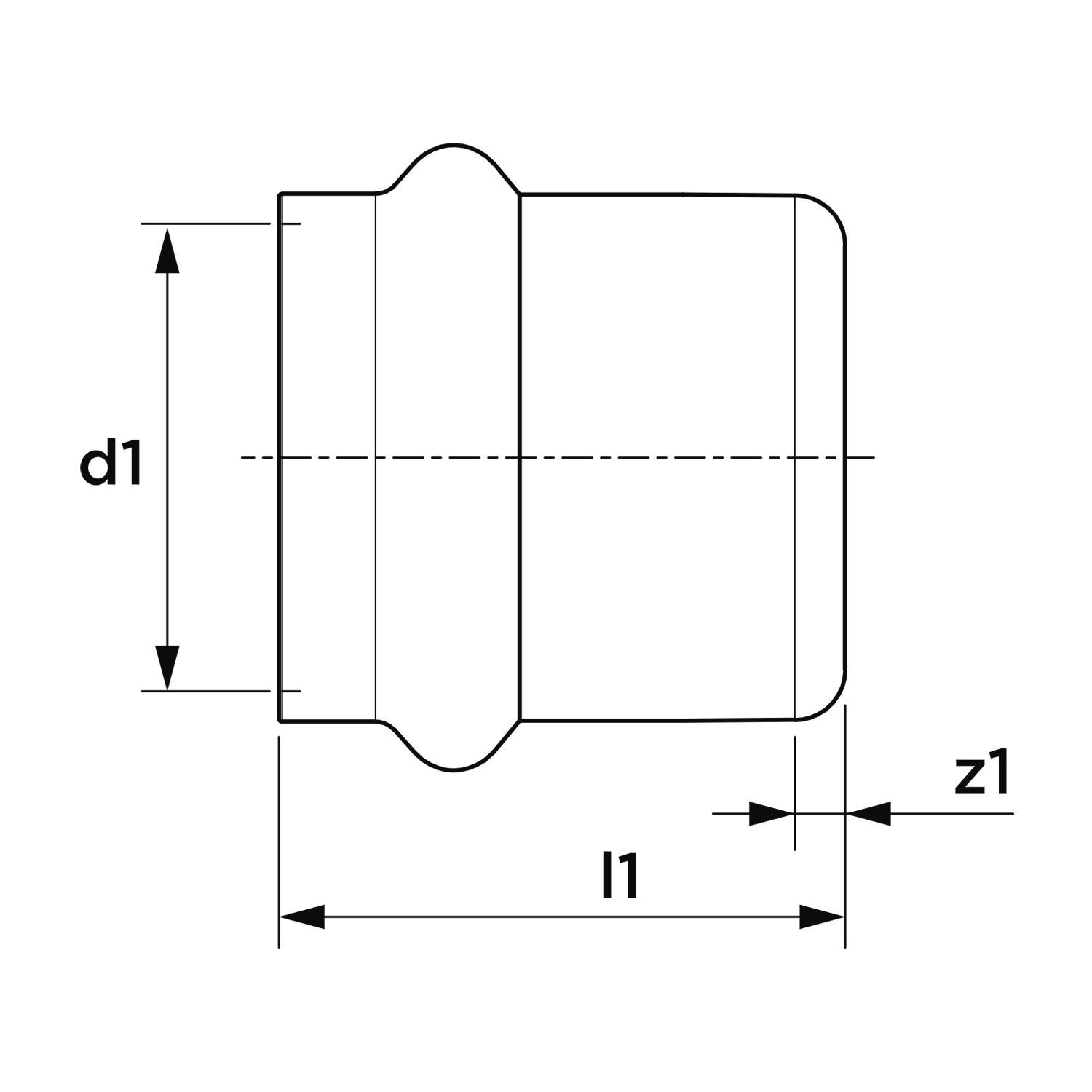

Dimensions0.94 in H x 0.91 in W x 0.94 in D
-
Domestic/ImportDomestic
-
End StyleC
- Ridgid XL press tool compatible
- Leak before Press technology
- The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
| Competitor Name | Cross-Reference Number |
|---|---|
| Ferguson | A10077850 |
-
UNSPSC40170000
-
Package Description10/BX
-
Standards/ApprovalsASTM B88-Type K, L and M|Federal Public Law 111-380|IAPMO PS 117-2016|TIL MSE-13|NSF/ANSI 61|NSF/ANSI 372|UPC Listed|cUPC Listed|IPC Listed|UNS C12200 Body|PROP65: Cancer and Reproductive Harm
-
Warranty5 Years
-
Warranty Information
-
Specification Sheet
