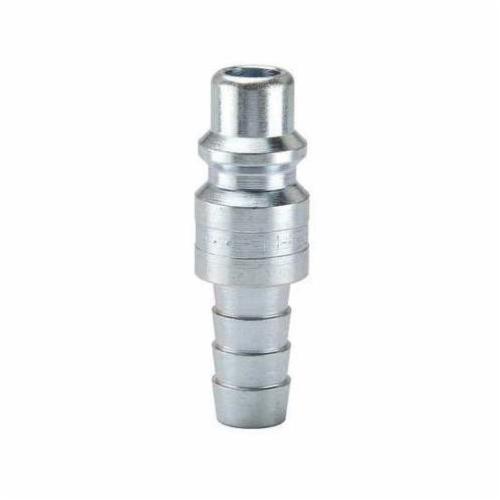

Parker 3/8" HOSE BARB QUICK COUPLER PLUGS PAR H-5-E
Parker® H5E Industrial Interchange General Purpose Straight Through Quick Disconnect Nipple, 3/8 in, Quick Connect Coupler x Hose Barb, 300 psi, Steel, Domestic
-
BrandParker®
-
Manufacturer Part NumberH5E
-
CountryUSA
-
Temperature Rating-40 to 250 deg F
-
FinishZinc Plated With Clear Trivalent Chromate
-
MaterialSteel
-
Pressure Rating300 psi
-
TypeIndustrial Interchange General Purpose Straight Through
-
Nominal Size3/8 in
-
Dimensions0.59 in Dia
-
Domestic/ImportDomestic
-
Length1.85 in
-
End StyleQuick Connect Coupler x Hose Barb
- Steel nipples have hardened wear points and load bearing areas
- It connect with Parker's 20 series, 30 series, HF series, universal or E-z-mate couplers
- Parker's steel pneumatic nipples have hardened wear points and load bearing areas for increased endurance
- Non-valved nipples connect with valved couplers for a single shut-off connection
- Steel nipples have hardened wear points and load bearing areas for increased durability
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 30N305 |
-
UNSPSC27131613
-
Package Description10/PK
-
Standards/ApprovalsA-A-59439, MIL-C-4109F
-
