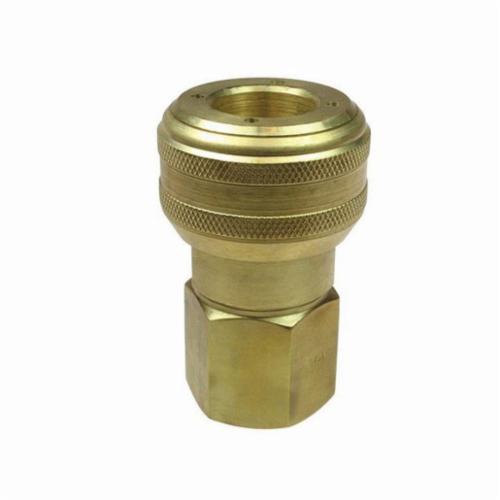

Coilhose® 340A Coilflow Automatic Industrial Type 12 Automatic Industrial Quick Disconnect Hose Coupler, 3/4 in Nominal, Quick Disconnect Coupler x FNPT, 300 psi Pressure, Brass, Domestic
Our Coilflow automatic industrial series couplers are designed for stationary mounting where a simple "one handed" push-to-connect operation is desirable. These automatic couplers feature a compact size, quality all brass, rugged construction and are interchangeable with all other manufacturer's industrial interchanges. Automatic couplers are available in four different body sizes with male or female thread connectors up to 3/4 in NPT; also with hose barb up to 1/2 in ID. Hose.
-
BrandCoilhose®
-
UPC029292121064
-
Manufacturer Part Number340A
-
CountryUSA
-
Temperature Rating-40 to 250 deg F
-
MaterialBrass
-
Pressure Rating300 psi
-
TypeType 12 Automatic Industrial
-
Nominal Size3/4 in
-
SeriesCoilflow Automatic Industrial
-
Domestic/ImportDomestic
-
End StyleQuick Disconnect Coupler x FNPT
- Automatic couplers offer a durable connection with years of service
- Easy, one handed connection
- Knurled body enhances grip
- Buna-N seals
- For stationary mounting where a simple one handed push-to-connect operation is desirable
- Feature a compact size, quality all brass, rugged construction
- Six pawls locking
-
UNSPSC40141734
-
Package Description1/PK
-
Catalog
-
Specification Sheet
