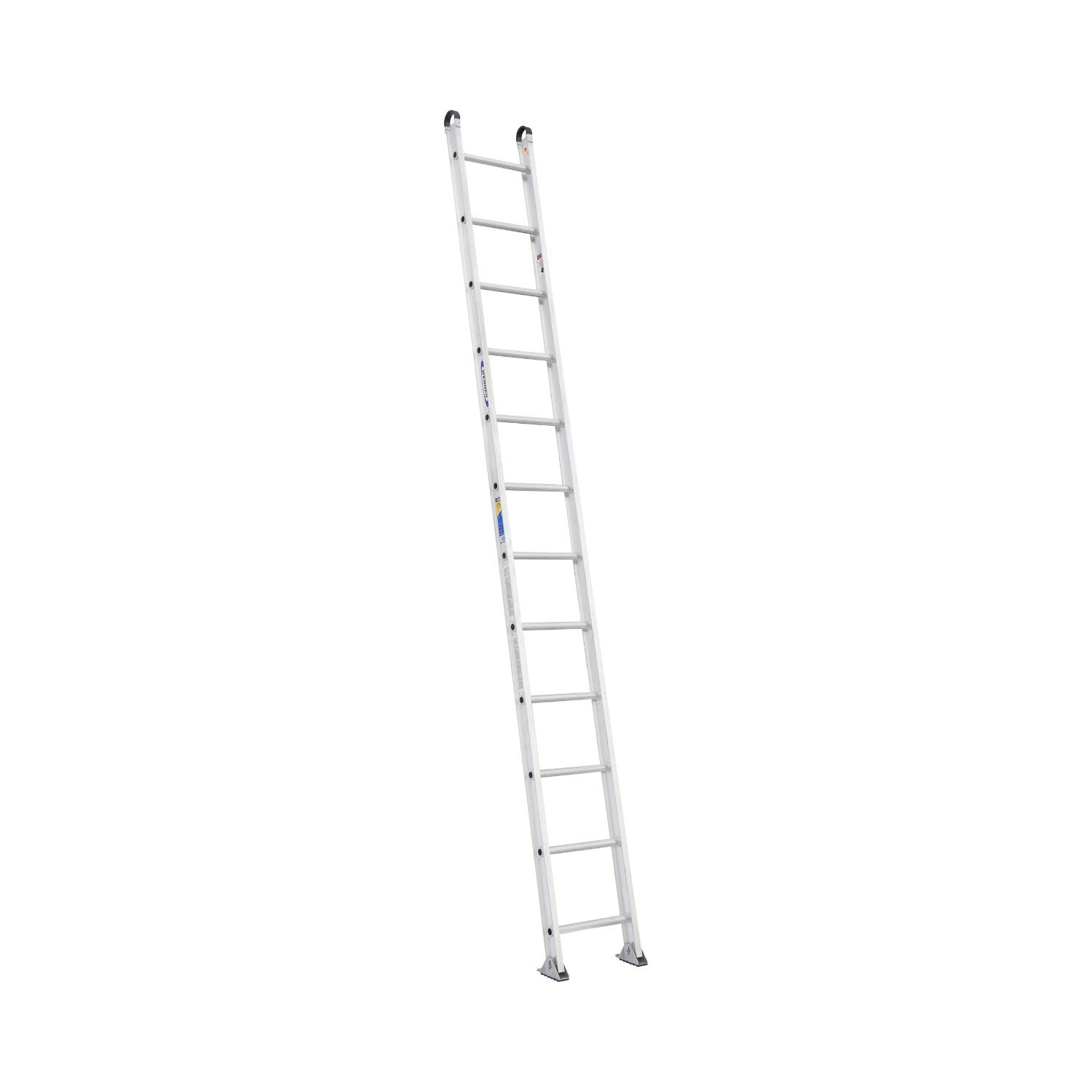

WERNER® 512-1 500-1 Type IAA Duty Single Section Straight Ladder, 12 ft H x 16-7/8 in W, 375 lb Load, 12 ft Top Step, Aluminum
The 512-1 one section aluminum round rung 12 ft straight ladder has a duty rating of 375 lb. The exclusive ALFLO® rung joint means TWIST-PROOF® performance every time. The side rails are extra heavy duty I-Beam rails and the aluminum round rungs are deeply serrated for slip resistance.
-
BrandWERNER®
-
UPC051751012415
-
Manufacturer Part Number512-1
-
CountryUSA
-
Load Capacity375 lb
-
MaterialAluminum
-
Top Step Height12 ft
-
Top to Bottom Rung11 ft
-
TreadSlip-Resistant
-
TypeType IAA Duty Single Section
-
Rung Diameter1-1/4 in
-
Rung Spacing12 in
-
Rung TypeRound
-
Rung Width1-1/4 in
-
Series500-1
-
Number of Rungs12
-
Overall Height12 ft
-
Overall Width16-7/8 in
- Exclusive ALFLO® rung joint means TWIST-PROOF® performance
- 1-1/4 in slip resistant TRACTION-TRED® round rungs
- Extra heavy duty I-Beam rails
- Heavy duty, self-aligning, free-swinging shoe with slip resistant tread and replaceable steel spur plate
- Hoop end caps
- Slip resistant pad foot
- 1 section
- 15 ft H reach
- 12 ft L open extended
- 12 ft L closed
- 3 in rails
- 1-3/16 in flange
-
UNSPSC30191501
-
Standards/ApprovalsANSI A14.2 (2007)|OSHA Compliant
