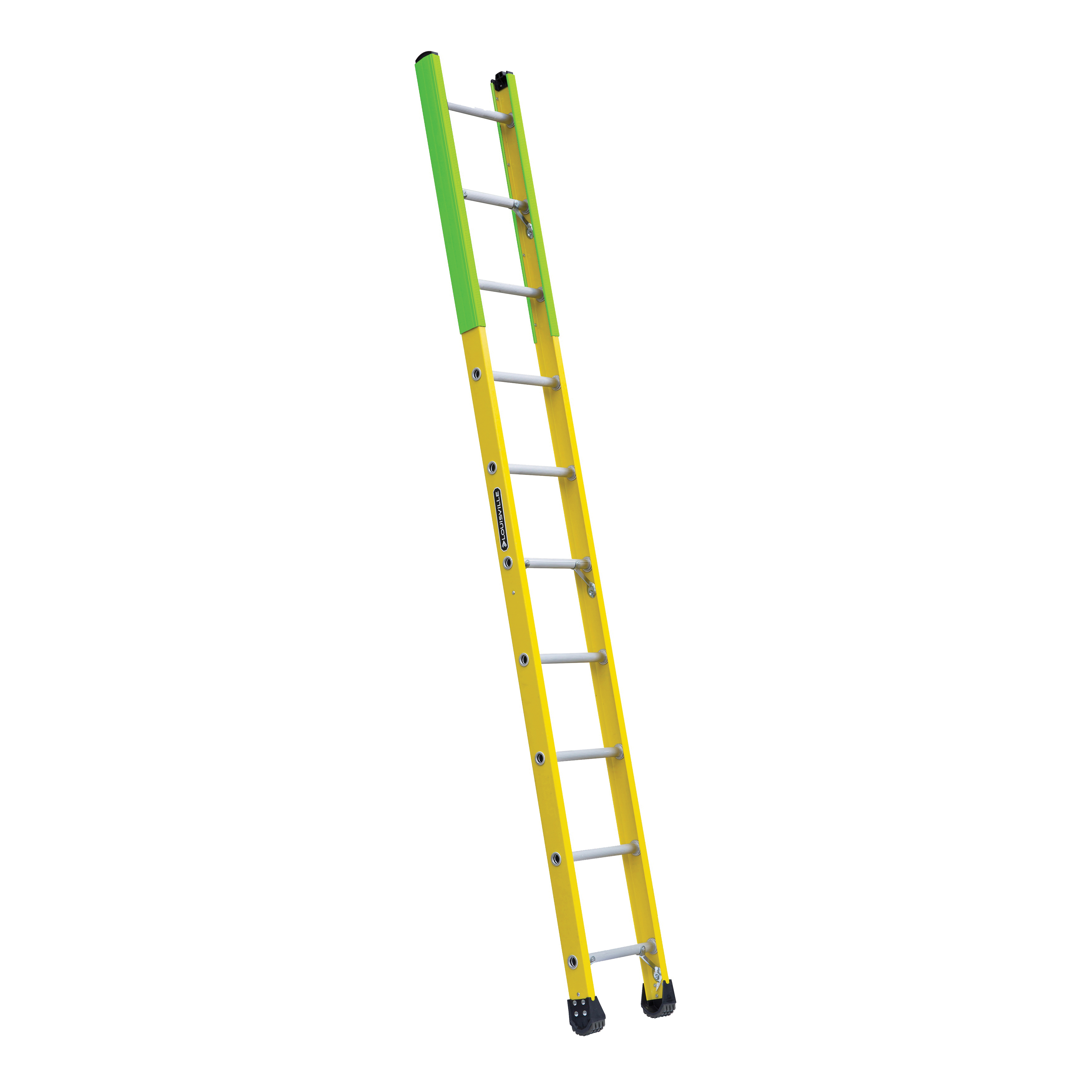

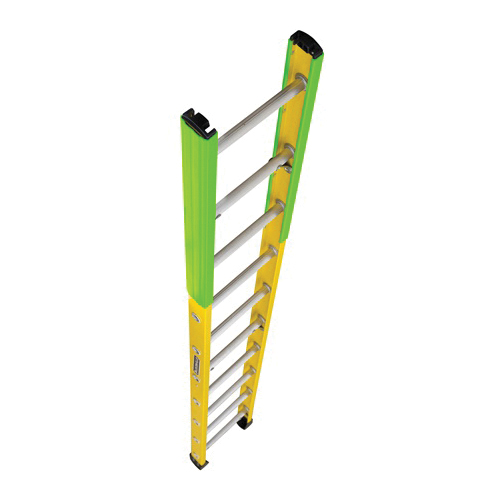

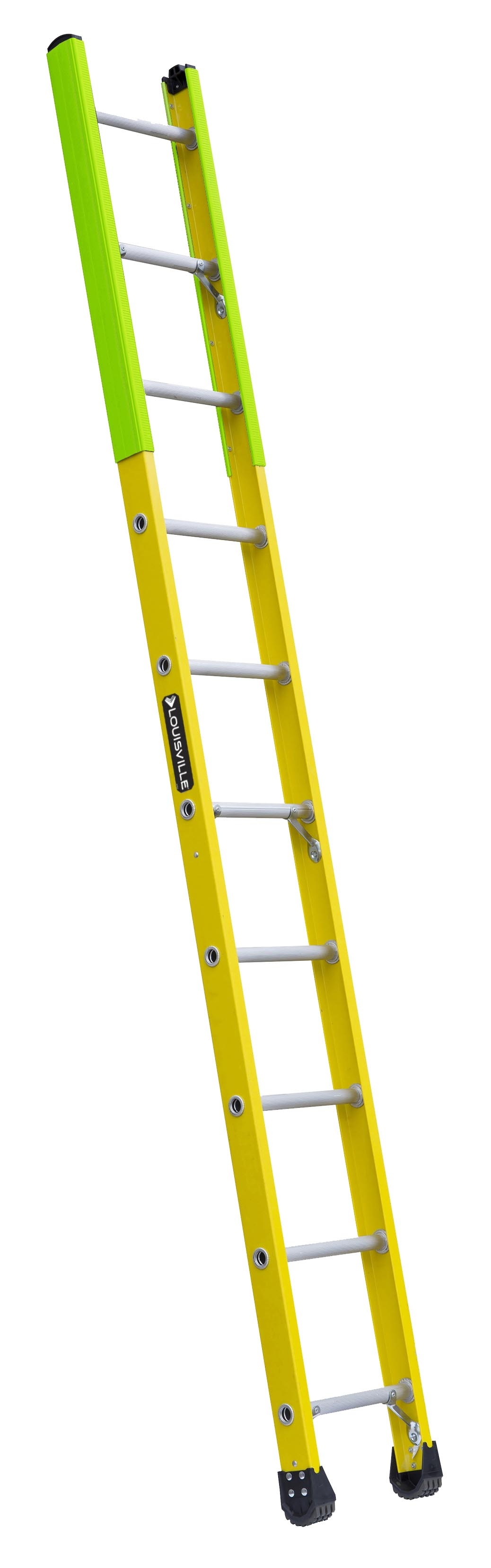

Louisville® FE8910 Manhole Extension Ladder, 10 ft H x 14-1/2 in W, 375 lb Load, Fiberglass, 9 ft 6 in H Top Step
The Louisville 10 ft manhole ladder has a 375 lb load capacity, ANSI Type IAA rated. It features double side 3 ft plastic rail protectors to avoid manhole rim damage, heavy duty gussets under steps and new heavy duty 180 deg boots that allow you to work on either side of the ladder with thick non-marring thermoplastic elastomer tread bonded and mechanically fastened to the upper boot. The polypropylene copolymer upper boot provides strength, durability and fiberglass protection. This ladder is specially designed for use in manholes and meets or exceeds the safety standards set by ANSI, CSA, and OSHA.
-
BrandLouisville®
-
UPC728865130792
-
Manufacturer Part NumberFE8910
-
CountryUSA
-
Load Capacity375 lb
-
MaterialFiberglass
-
Top Step Height9 ft 6 in
-
Top to Bottom Rung9 ft
-
TreadNon-Marring
-
Rung Diameter1-1/2 in
-
Rung Spacing12 in
-
Rung TypeD-Rung
-
Rung Width12-9/64 in
-
SeriesFE8900
-
Number of Rungs10
-
Overall Height10 ft
-
Overall Width14-1/2 in

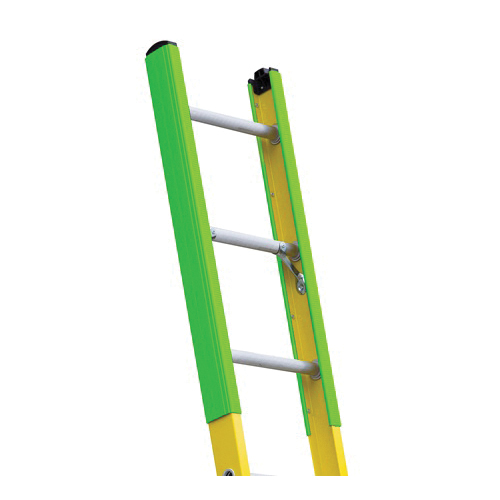

- 3 Ft Plastic Rail Protectors To Avoid Manhole Rim Damage

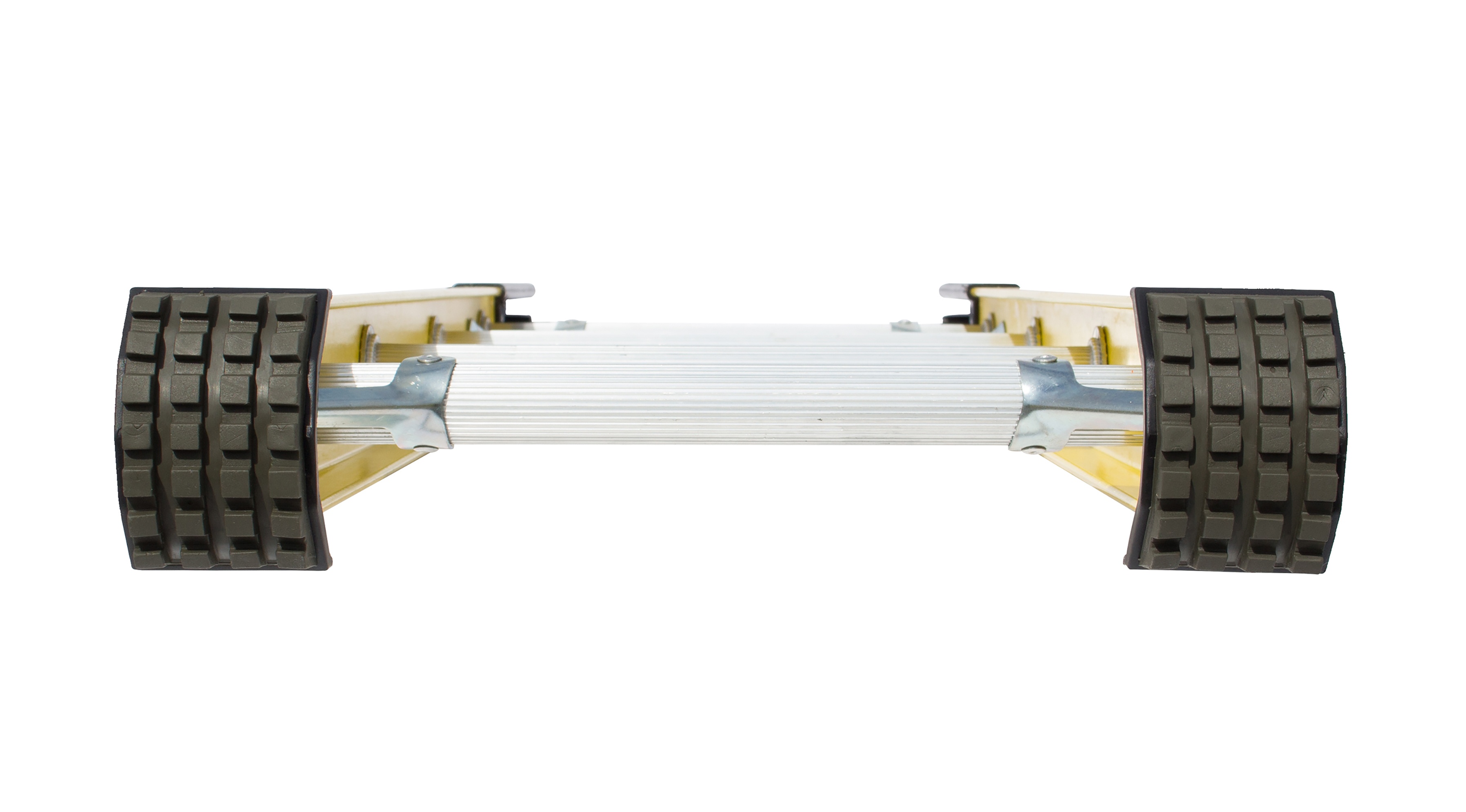

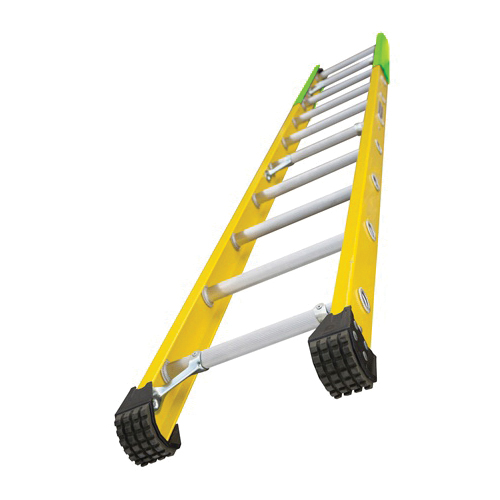

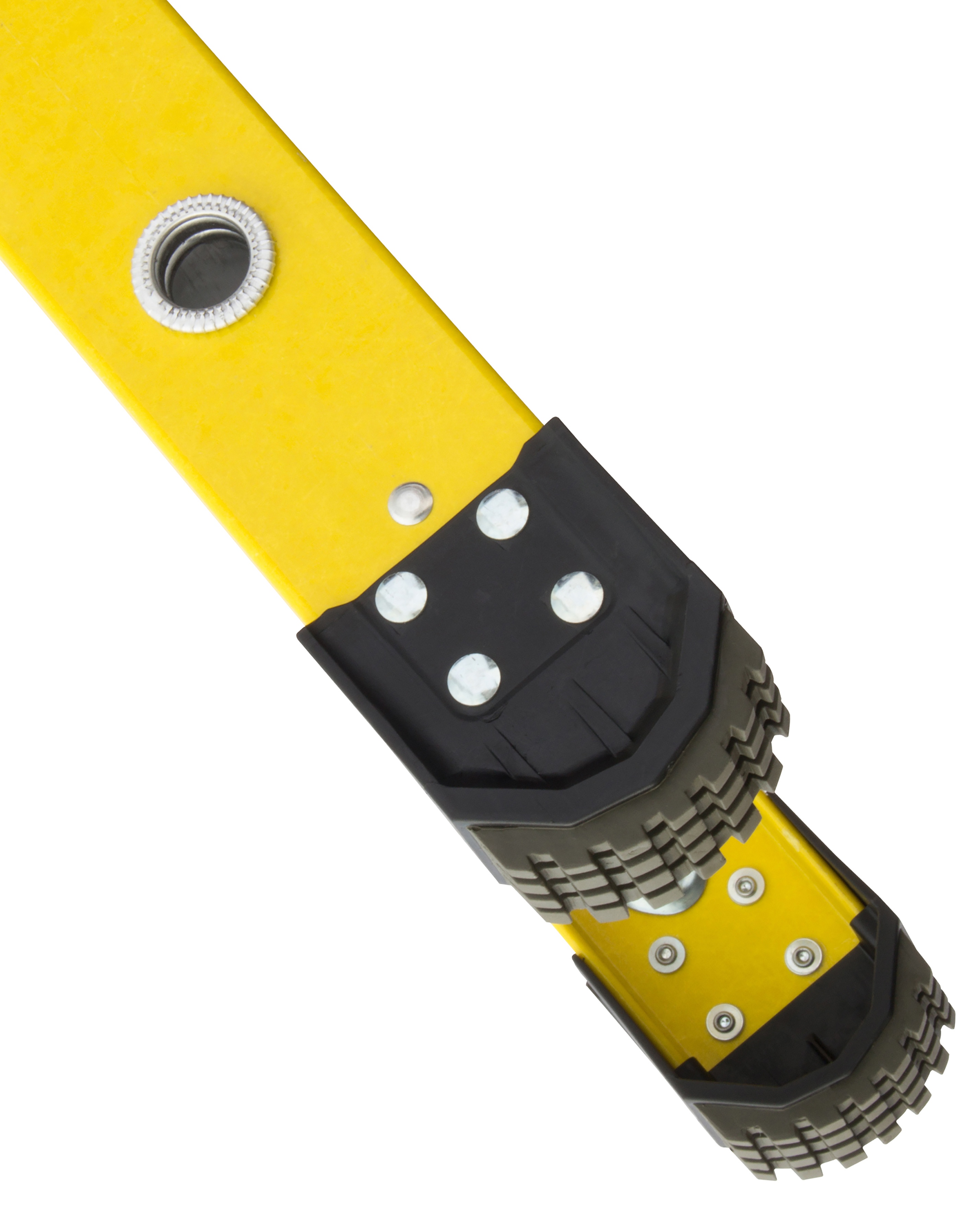

- 18 deg Heavy-Duty Boots To Work On Either Side Of The Ladder
- Thick Non-Marring Thermoplastic Elastomer Tread
- Polypropylene Copolymer Upper Boot Provides Strength And Durability
- Slip-Resistant Round Rungs
- Slip-resistant round rungs
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 2160148 |
-
UNSPSC30191501
-
Standards/ApprovalsANSI TYPE IAA|CSA Certified|OSHA Certified
-
Package DescriptionEACH
-
Specification Sheet
