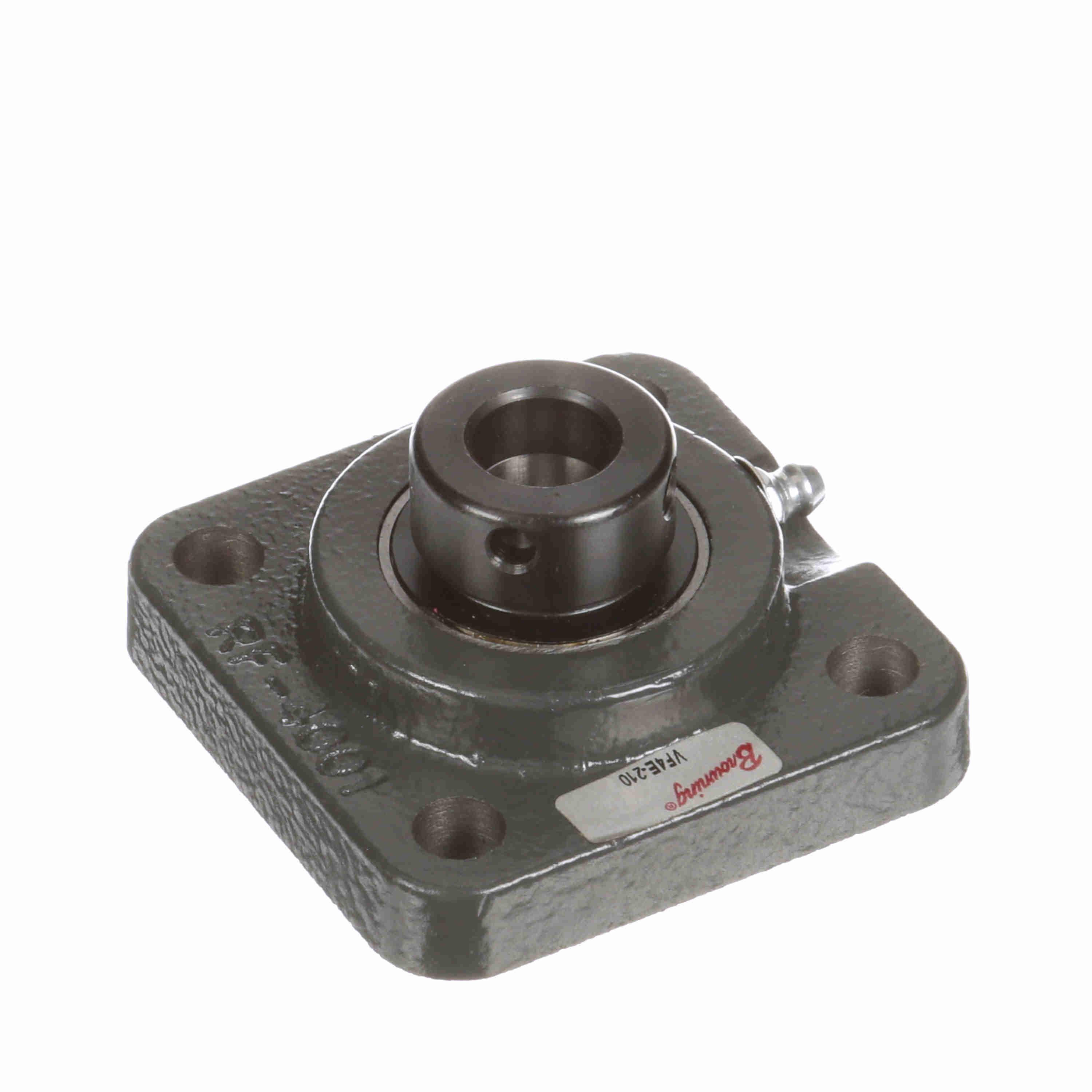

Browning 5/8"-ID 4-BOLT BB FLANGE UNITS BRW VF-4-E-210
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289521906
-
Manufacturer Part Number767356
-
CountryUSA
-
Load Capacity2108 lb Dynamic/1117 lb Static
-
Locking DeviceEccentric Collar
-
Temperature Rating-20 to 200 deg F
-
FinishGray Painted
-
Flange Mounting Type4-Bolt
-
Maximum Speed7500 rpm
-
TypeNormal Duty Non-Expansion Round/Straight Bore
-
Seal MaterialNitrile Rubber
-
SeriesVF4E 200
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length2-1/8 in
-
Bore Diameter5/8 in
-
Overall Depth1-33/64 in
-
Overall Height3 in
-
Overall Length/Diameter3 in
- Eccentric locking design incorporates a precision eccentric collar to mate with the inner ring extension for shaft hold
- Positive contact molded nitrile rubber single lip contact seal with an auxiliary flinger element standard
- An anti-rotation rivet prevents outer ring creep or rotation within the housing
- Zone hardened inner race
- 52100 steel insert
- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
| Competitor Name | Competitor Part Number |
|---|---|
| Applied Industrial Technologies | 100733314 |
| Motion Industries | 00562564 |
-
Alternative Part NumberVF4E-210
-
UNSPSC31171504
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
