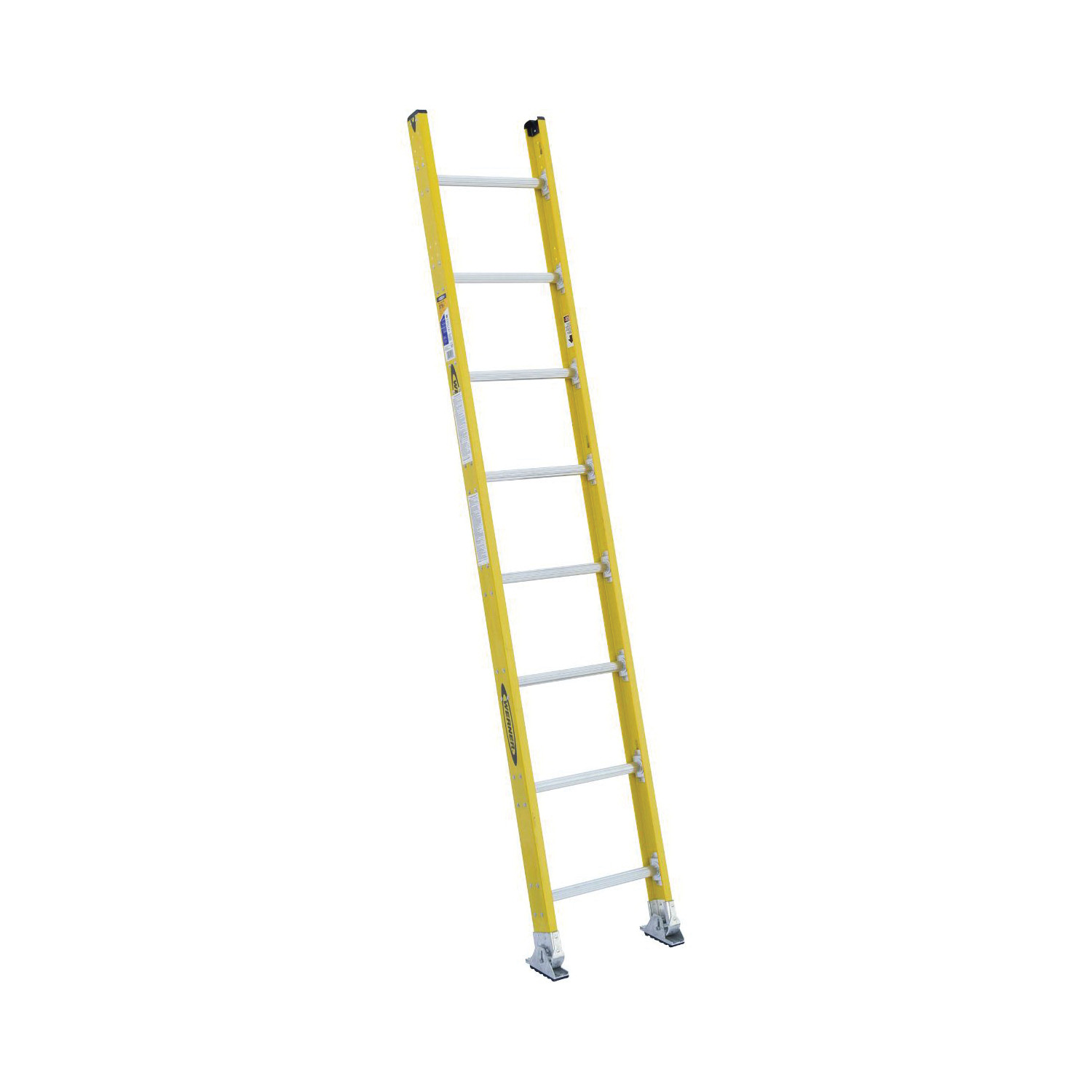

WERNER 8' F/G TYPE-1AA 375# SINGLE LADDER WER 7108-1
The 7108-1 one section round rung 8 ft straight ladder is made with non-conductive fiberglass rails. Easy to transport and maneuver, these ladders bear a duty rating of 375 lb making them durable and long lasting. The slip resistant, TRACTION-TRED® rungs are round, and the durable rail shields and shoe brackets help to protect the rails from damage. The plate and rung assemblies are riveted at four points to the side rails.
-
BrandWERNER®
-
UPC051751012606
-
Manufacturer Part Number7108-1
-
CountryUSA
-
Load Capacity375 lb
-
MaterialFiberglass
-
Top Step Height8 ft
-
Top to Bottom Rung6 ft
-
TreadSlip-Resistant
-
TypeType IAA Duty Single Section
-
Rung Diameter1-1/4 in
-
Rung Spacing12 in
-
Rung TypeRound
-
Rung Width1-1/4 in
-
Series7100-1
-
Number of Rungs8
-
Overall Height8 ft
-
Overall Width18-1/16 in
- Exclusive ALFLO® rung joint means TWIST-PROOF® performance
- 1-1/4 in slip resistant TRACTION-TRED® round rungs
- Plate and rung assembly are riveted at four points to each side rail to allow for rung replacement
- Rugged, heavy duty extruded rung locks are spring loaded to operate smoothly
- Pre-pierced holes for easy field installation of accessories
- Durable rail shield and shoe bracket protects rail from damage
- Dual action feet with slip resistant pad and spur plate for use on hard or penetrable surfaces
- Mar resistant molded end caps
- Ideal for utility and telecommunication industries
- Shoe with slip resistant pad and spur plate
- 1 section
- 11 ft H reach
- 8 ft L open extended
- 8 ft L closed
- 3-5/16 in rails
- 1-3/16 in flange
- 16-13/16 in W fly
-
UNSPSC30191501
-
Standards/ApprovalsANSI A14.5 (2007)|OSHA Compliant
