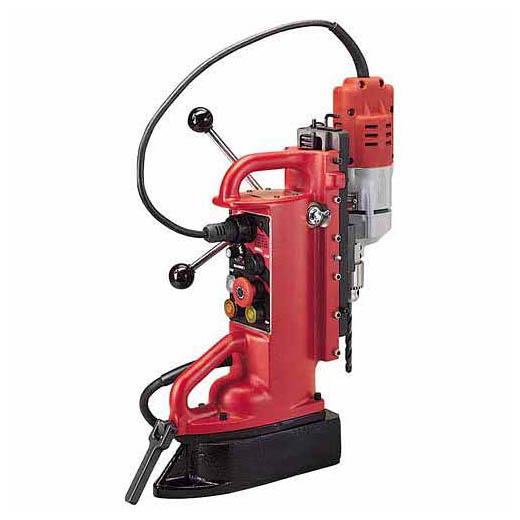

Milwaukee® 4204-1 Adjustable Position Electromagnetic Drill Press, 1/2 in Chuck, 1-1/4 hp, 1-1/4 in Drill to Center From Base, 600 rpm Spindle Speed, 120 VAC
This combination unit features the 4203 adjustable position, variable speed base and the 4253-1 1/2 in. drill motor. All you need is a bit and you are ready to drill into any ferrous material 1/2 in. and thicker.
-
BrandMilwaukee®
-
UPC045242012817
-
Manufacturer Part Number4204-1
-
CountryUSA|Canada
-
Chuck Size1/2 in
-
TypeAdjustable Position
-
Voltage Rating120 V AC
-
Amperage Rating7.2 A
-
Horsepower1-1/4 hp
-
Number of Spindle Speeds1
-
Spindle Speed600 rpm
-
Spindle Travel9 in
-
Drill Point Pressure1610/1650 lb
-
Drill to Center From Base1-1/4 in
-
Overall Height25-1/4 in
- Powerful 7.2 A motor, engineered for the toughest applications, delivering 600 rpm
- 1/2 in capacity, taps up to 5/8 in/18 threaded holes (5/8 - 11 and 1/2 - 13 taps are not recommended)
- Maximum force develops up to 1650 lb of drill point pressure with a 1 in steel plate
- Solid state electronic switching, offers faster, smoother and quieter switching for a longer product lifespan
- Line lockout prevents tool from operating if voltage is restored to an interrupted line
- Motor magnet lockout prevents de-mag during operation
- Full wave holding power
- Grounded construction
- 5/8-18 table load capacity
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 3F863 |
| Grainger | 3F863 |
-
Alternative Part Number8564651
-
UNSPSC23241801
-
IDEA Index ID8564651
-
Includes4203 Electromagnetic Drill Press Base, 4253-1 1/2 in Motor, 6 ft Safety Chain, 2Y325 Chuck and 2Y349 Key
-
Package Description1/PK
-
WarrantyLimited Lifetime
