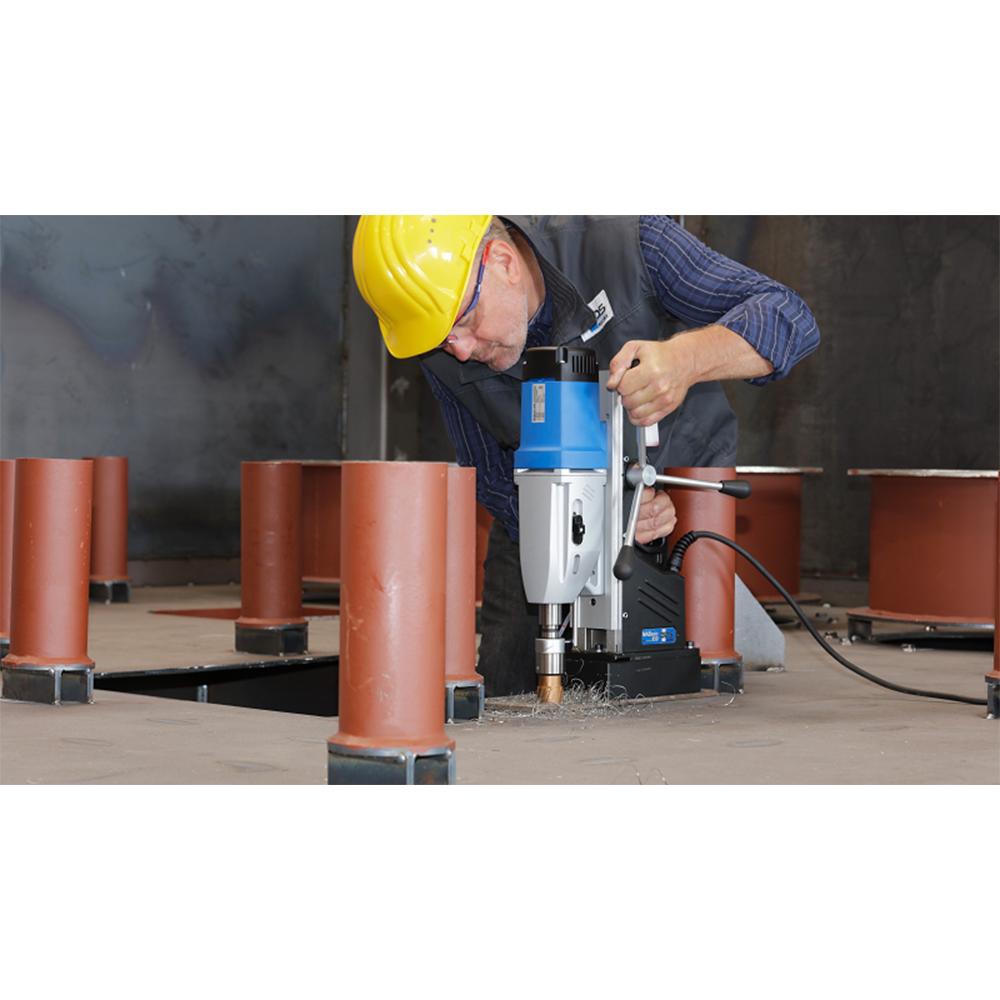

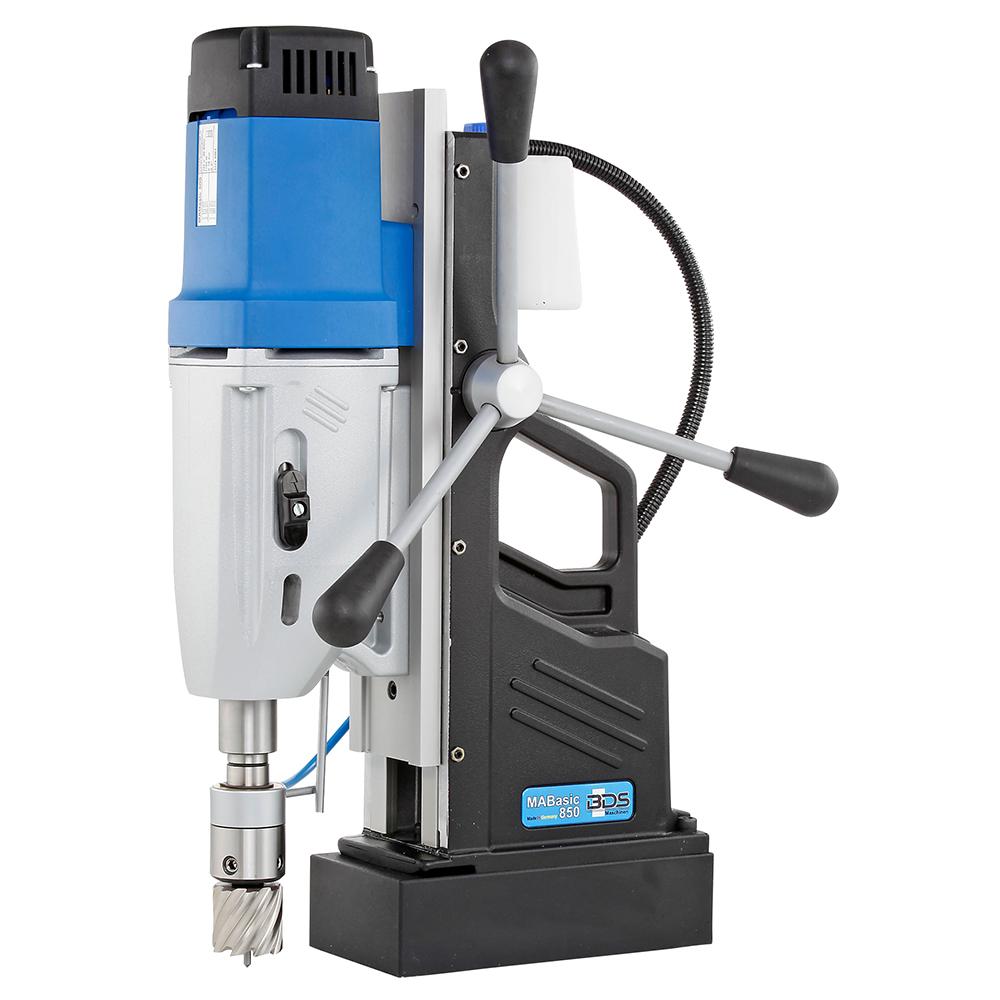

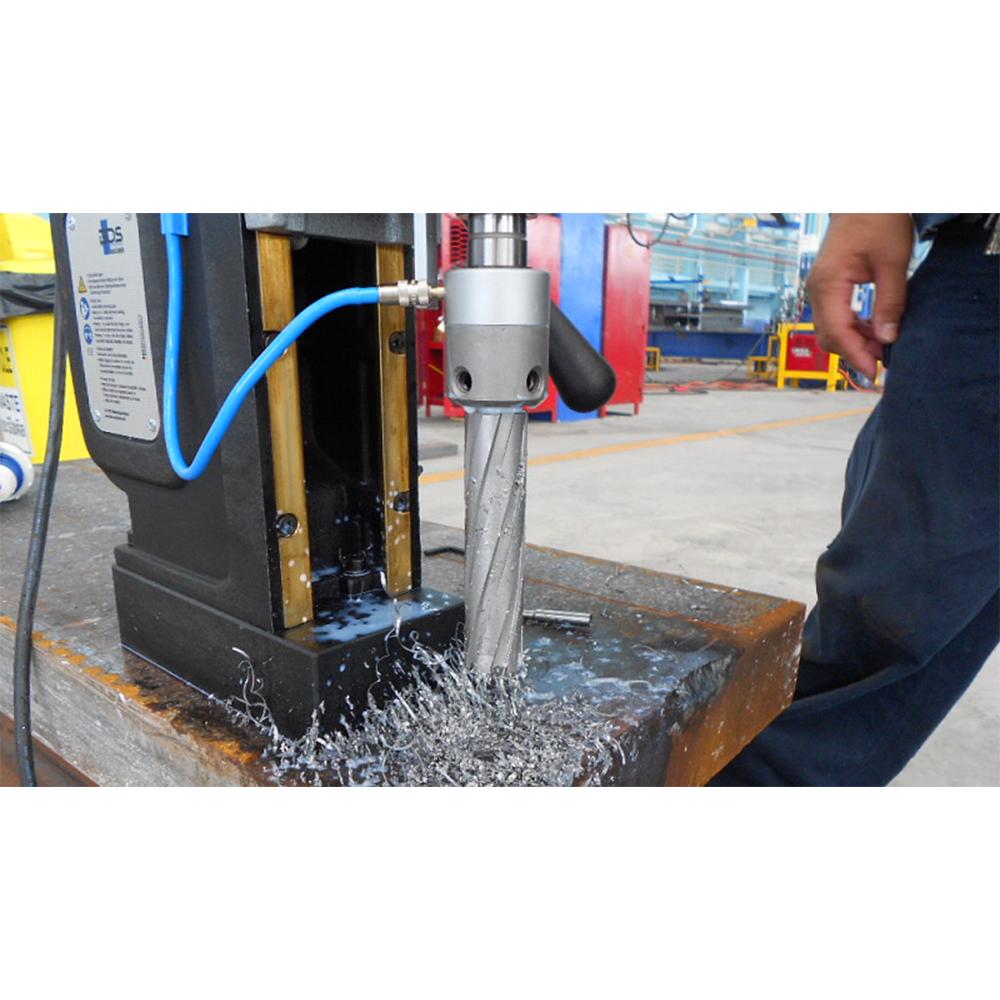

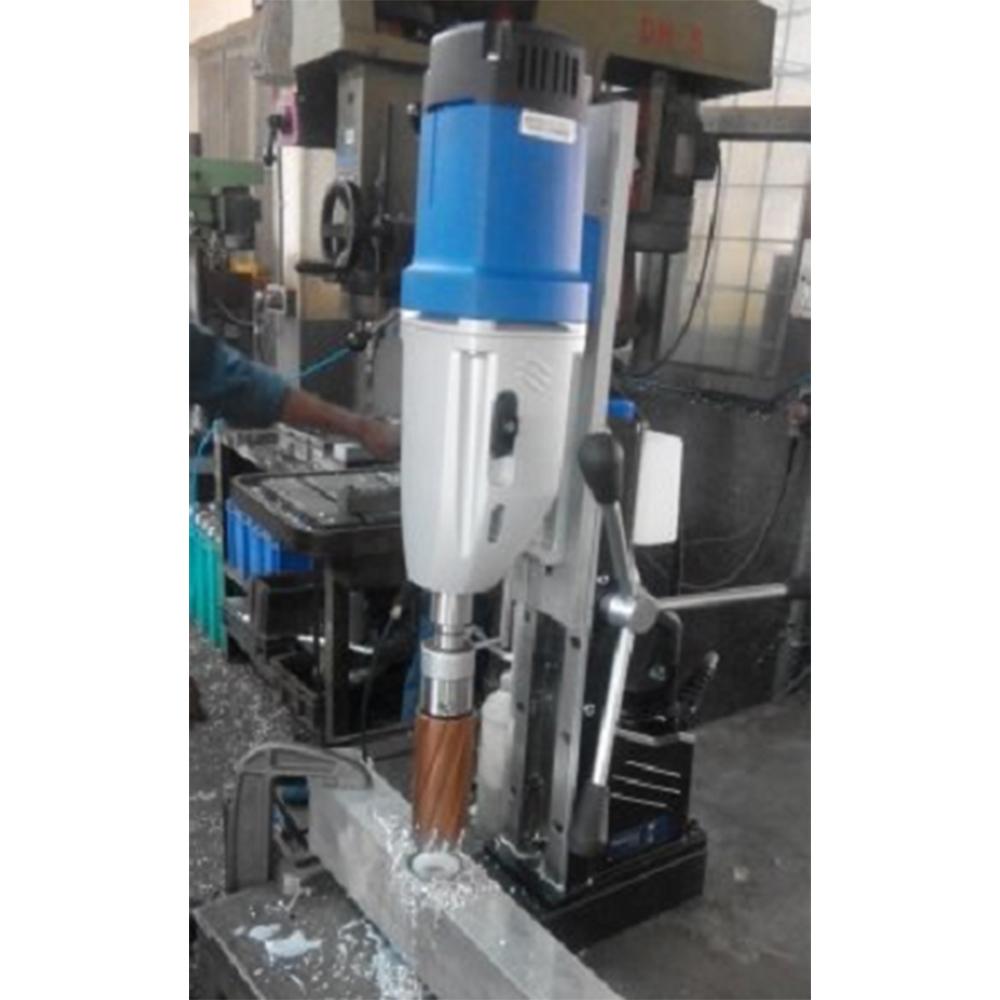

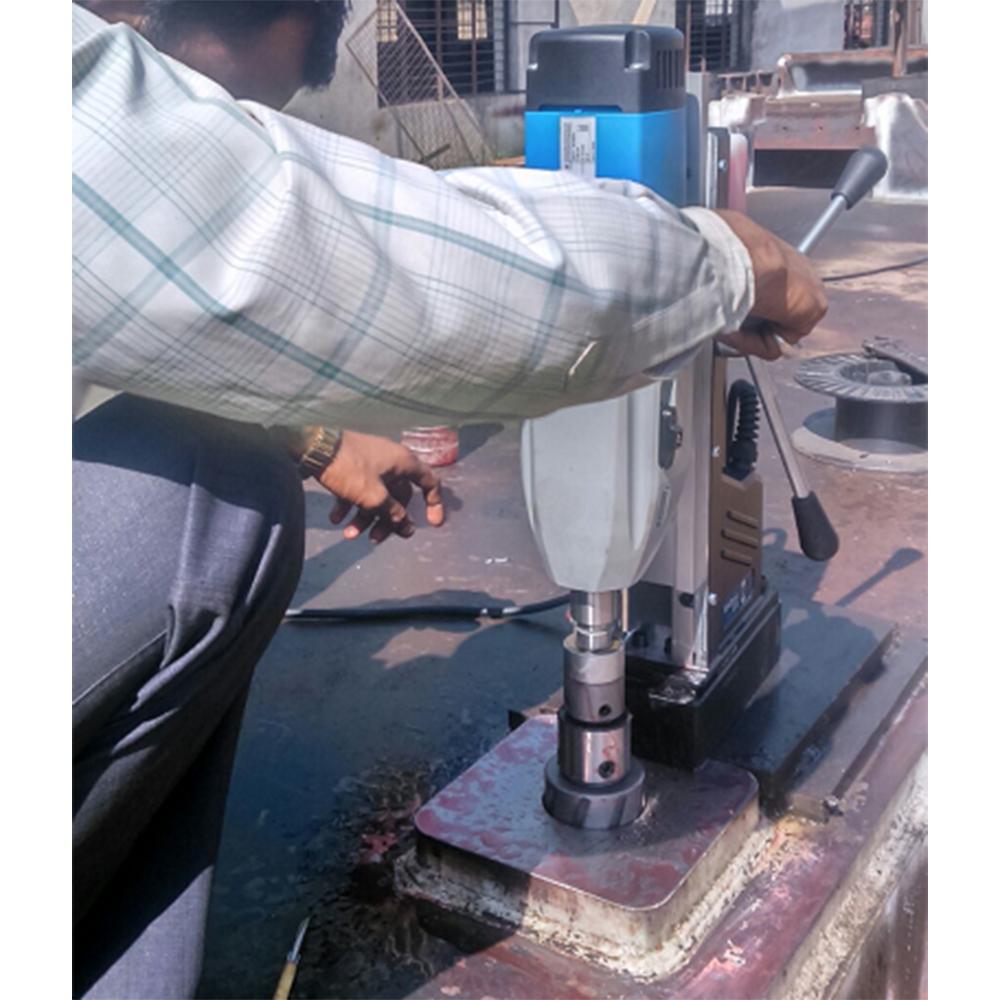

CS Unitec - BDS MABasic 850 Four-speed Magnetic Drill, 1-3/8 in Chuck, 110, 175, 245, 385 rpm Spindle Speed, 110 V AC
CS Unitec’s MABasic line of magnetic drills consists of powerful and reliable machines at an affordable price, a perfect blend of power, endurance and economy. The MABasic 850 is a professional-grade portable magnetic drill designed for continuous use with: 16 Amp, double-insulated motor, 4-speed gearbox (110, 175, 245, 385 RPM), a 10" stroke, and a Morse Taper 3 spindle for easy changeover to different cutting tools. Powerful and portable, this drill cuts holes up to 3-1/16" dia. with annular cutters. The drill's MT3 design, coupled with the included 3/4" geared chuck, easily converts the MABasic 850 to a standard drill press for conventional twist drilling up to 1-1/4” diameter. The MABasic 850 is equipped with an internal lubrication system that increases the life of annular cutters by reducing friction and wear. The machine’s magnet has a holding strength of 6000 lbs.
-
BrandCS Unitec - BDS
-
Manufacturer Part NumberMABasic 850
-
CountryUSA
-
Chuck Size1-3/8 in
-
TypeFour-speed
-
Voltage Rating110 V AC
-
Amperage Rating16 A
-
Dimensions8-1/4 in W x 11-5/8 in L
-
Spindle Speed110, 175, 245, 385 rpm
-
Overall Height19-3/8 in
- Heavy-duty, purpose-built, 2-speed workhorse
- Powerful and reliable machines at an affordable price
- Excellent Power To Weight Ratio
- Compact, lightweight, portable design
- Internal lubrication system
- Simple, ergonomic arrangement of controls for one-handed operation
- Emergency-off function - electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment
- MT3 Spindle and Weldon tool holder
-
Includes(1) MABasic 850, (1) Carrying Case, (1) Safety Strap, (1) Operating manual, (1) Warranty Certificate, (1) Coolant bottle, (2) Pilot/Ejector Pin, (2) Hex Keys, (1) 3/4 in Weldon Tool Holder w/ internal Lubrication, MT3, (1) 3/4 in Geared Chuck, (1) MT3 Drift Key
-
Standards/ApprovalsISO 9001:2015|CE
-
Warranty1 Year
