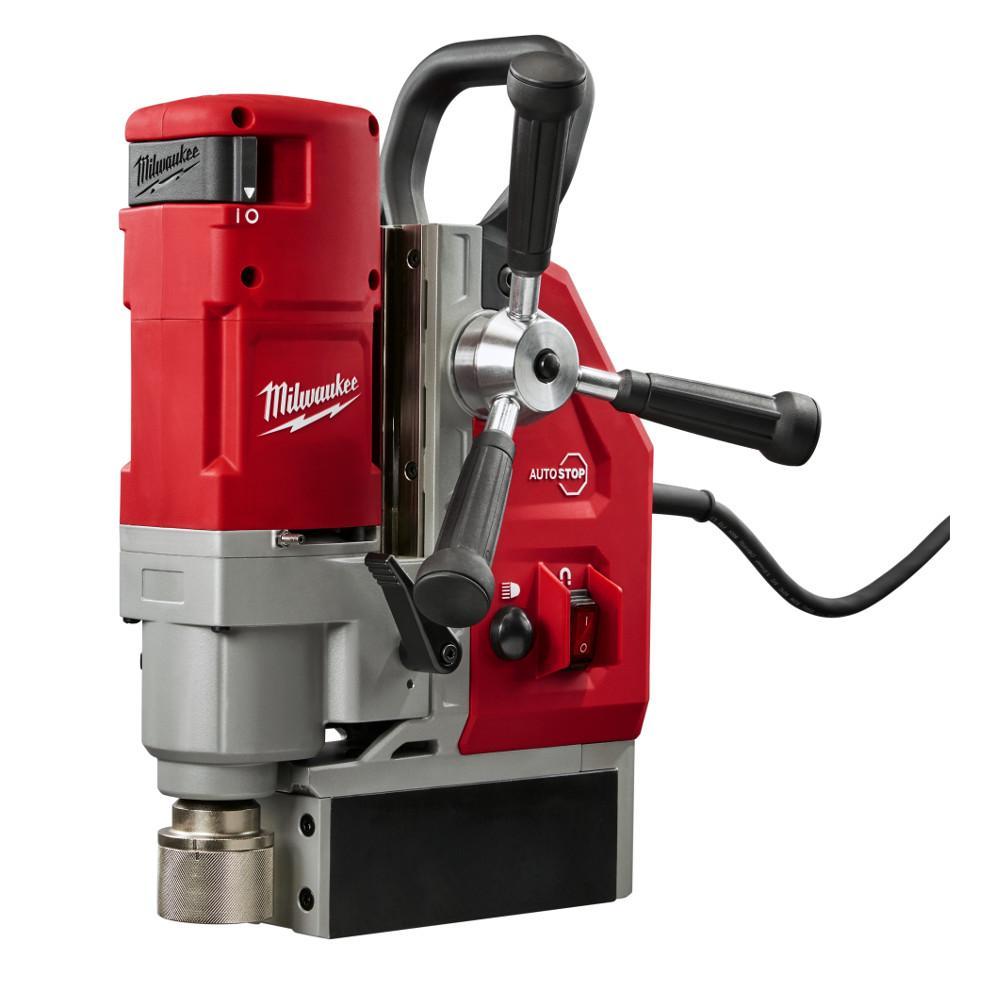

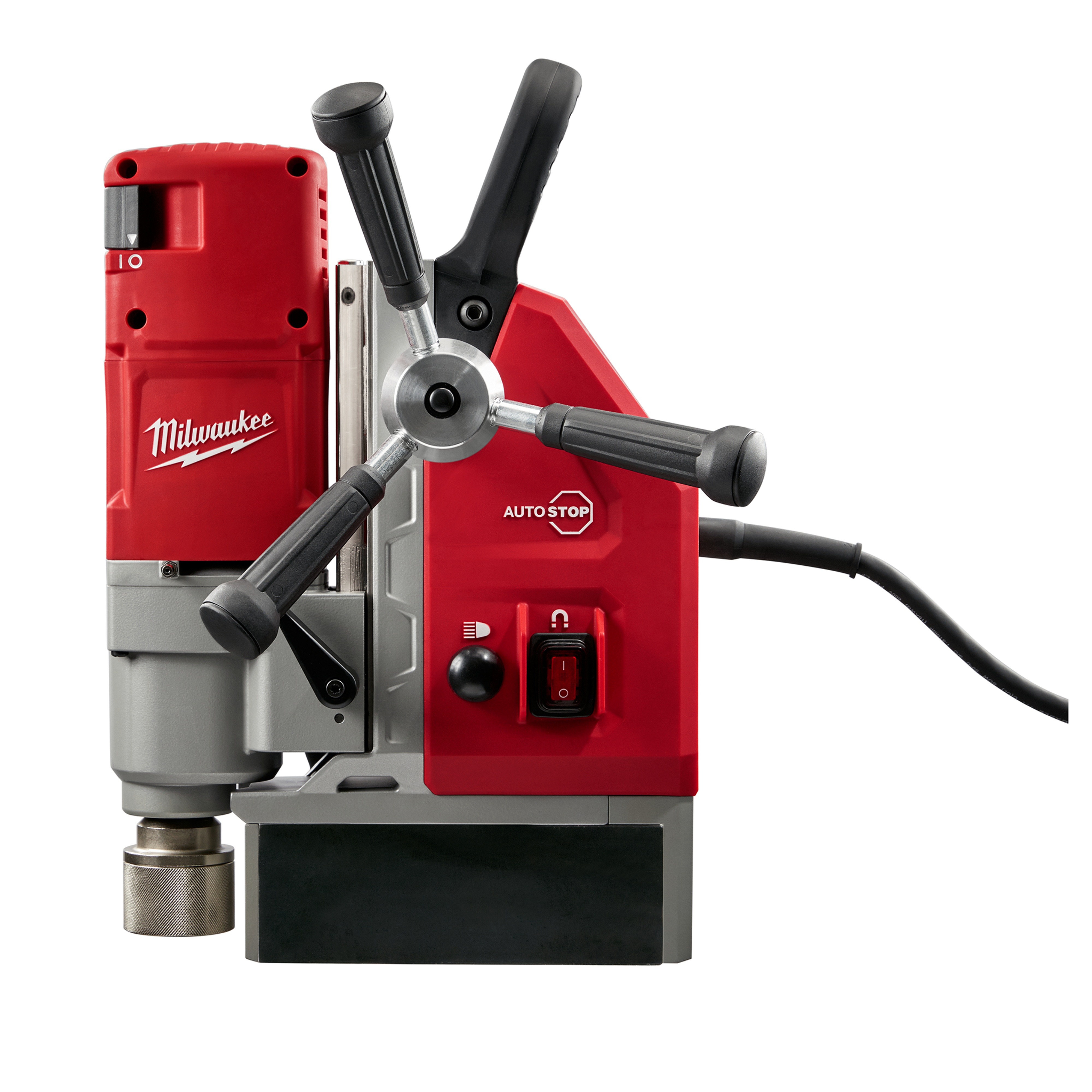

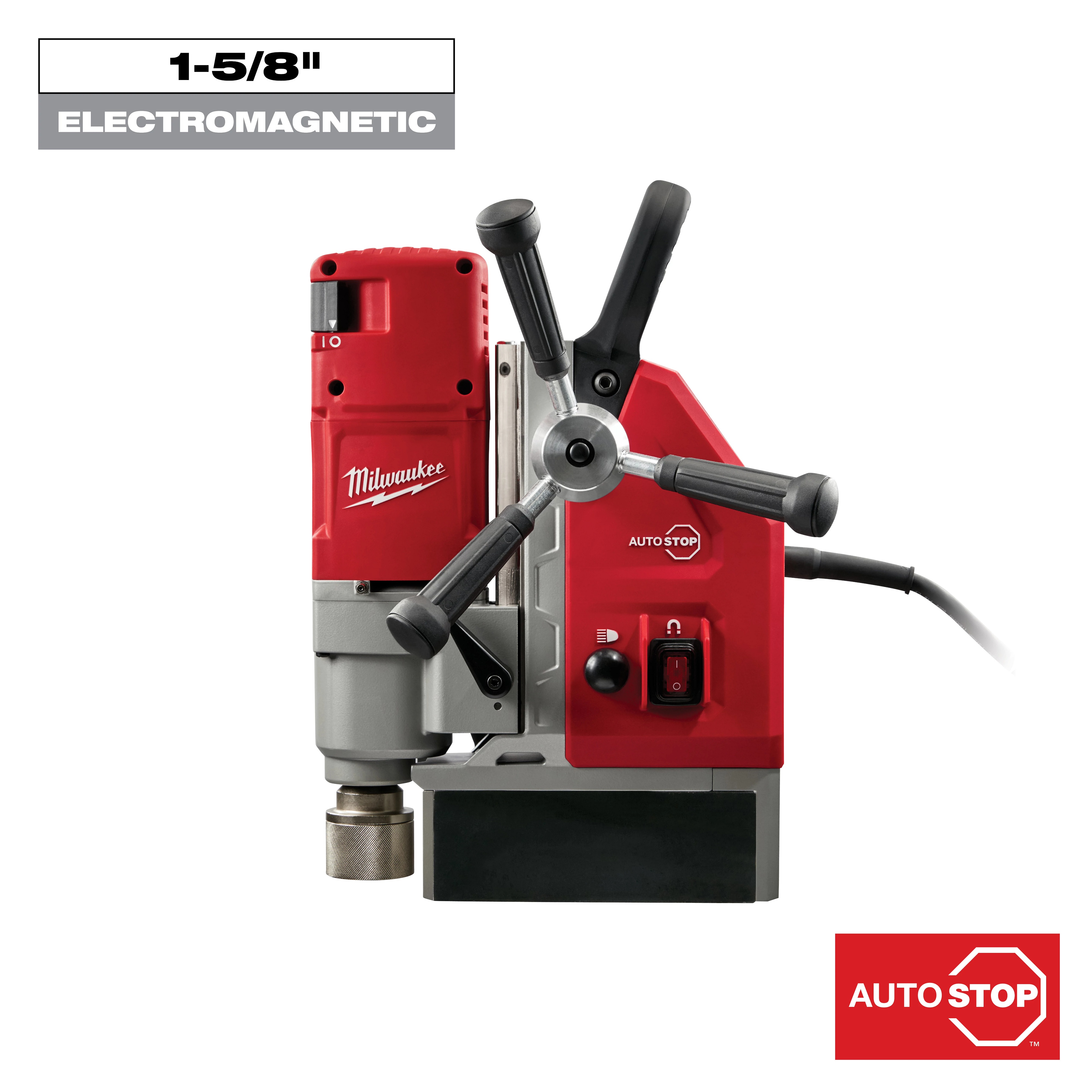

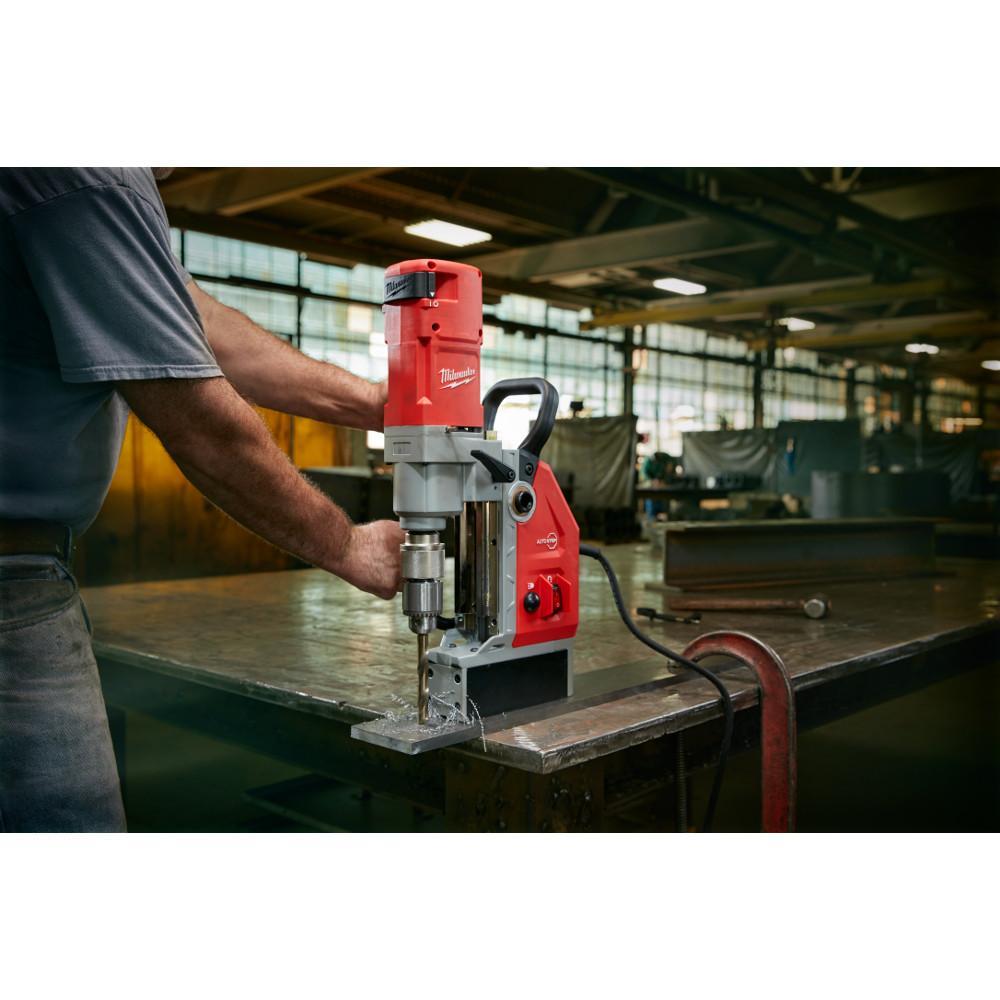

Milwaukee® 4272-21 Compact Electromagnetic Drill Kit, 3/4 in Chuck, 2.3 hp, 1-1/4 in Drill to Center From Base, 475/730 rpm Spindle Speed, 120 V AC
The Milwaukee 1-5/8 in. electromagnetic drill will deliver faster set-up, cutting and drilling. It’s 13 amp motor delivers the fastest drilling w/ annular cutters or twist drill bits. Equipped with a 2-speed gear box the tool can be adjusted tool-free between annular cutters at 475 RPM and twist drill bits at 730 RPM.
-
BrandMilwaukee®
-
UPC045242346479
-
Manufacturer Part Number4272-21
-
CountryUSA|Canada
-
Chuck Size3/4 in
-
TypeCompact
-
Voltage Rating120 V AC
-
Amperage Rating13 A
-
Horsepower2.3 hp
-
Dimensions11-1/4 in L x 7-1/2 in W
-
Number of Spindle Speeds2
-
Spindle Speed475/730 rpm
-
Spindle Travel5-3/4 in
-
Drill Point Pressure600 lb
-
Drill to Center From Base1-1/4 in
-
Overall Height12-1/4 in
- 3/4 in Weldon Quick Change Arbor
- Auto-Stop Lift-Off Detection
- Optimized Cutting and Drilling Speeds
- Powerful 13 AMotor
- Tool Free Adjustment, Cutter to Twist Bit
- Tool Free Feed-Handle LED Light
- Equipped with a 2-speed gear box the tool can be adjusted tool-free between annular cutters
| Competitor Name | Competitor Part Number |
|---|---|
| MSC | 42549311 |
| Grainger | 40LJ21 |
-
Alternative Part Number13925239
-
UNSPSC27112703
-
IDEA Index ID13925239
-
Includes(2) 1 in Retractable Pilot Pin, 3/4 in Weldon to 1/2 in Chuck Adapter, Carrying Case, Chuck Key, Lubrication Spray Bottle and Safety Strap
-
Package DescriptionEACH
-
Standards/ApprovalsARRA Compliant|Buy American Act Compliant
-
Warrantyhttps://milwaukeetool.widen.net/content/rtxhp3o2sq/jpeg/5%20Year_Warranty.jpg?w=2000&h=2000&position=c&color=ffffff00&quality=100&retina=true&u=uqymji|5 Year_Warranty.jpg|5 Year Limited Warranty
-
Owners/User Manual
