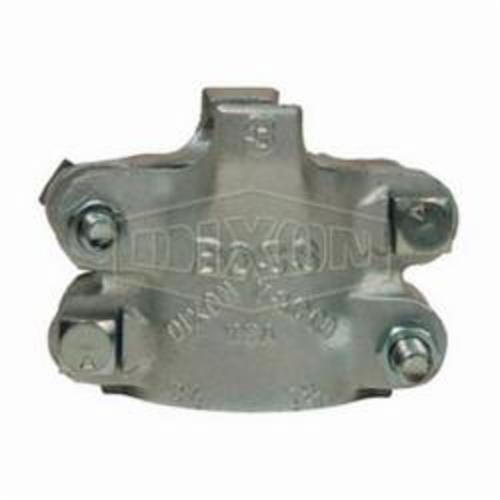

Dixon® BU9 Boss™ 2-Bolt Clamp, 3/4 in ID x 1-10/64 to 1-20/64 in OD, Iron Band
Dixon® BU9 Boss™ 2-Bolt Clamp, 3/4 in ID x 1-10/64 to 1-20/64 in OD, Iron Band
-
BrandDixon®
-
Manufacturer Part NumberBU9
-
CountryUSA
-
FinishZinc Plated
-
Torque Rating21 ft-lb
-
Width2-9/16 in
-
SeriesBoss™
-
Band MaterialIron
-
Inside Diameter3/4 in
-
Outside Diameter1-10/64 to 1-20/64 in
-
Bolt Size9/16 in Hex
-
Length2-31/32 in
- Recommended for steam service up to 450 deg F
- Replacement nuts and bolts are available
- Two gripping fingers and two clamps sections
- The bolts used in the boss interlocking clamps are not standard bolts
- They vary from standard bolts in their lengths, diameter, overall thread lengths and materials hardness
- These bolts can be retorqued, but it is not recommended to reuse the bolts or clamps, as they are designed for a single bend only
- Torque values for clamps are based on dry bolts
- The use of lubricant on bolts will adversely effect clamps performance
- Do not lubricate nuts and bolts
- Bolts in boss clamps are designed to bend as they are tightened and this allows the clamps to conform to the hose outside diameter
- Always tighten bolts to their specified torque values
- Periodic re-tightening of bolts is required due to "cold flow" phenomenon present in all rubber hoses
- Boss clamps are for single use only, once removed they are to be discarded
- Warning: this products contains a chemicals known to the State of California to caused birth defects or other reproductive harm
- Do not use in connections with drinking water
- Wash hands after handling
- Global investment cast carbon steel
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 58CY50 |
-
UNSPSC31162906
-
Package Description50/BX
-
