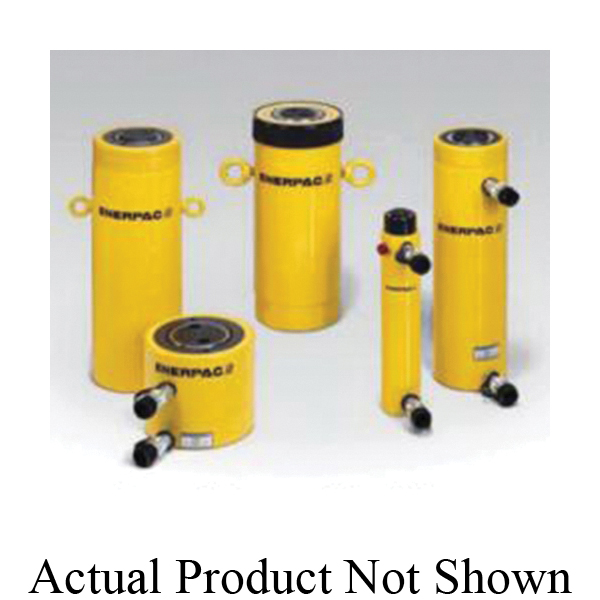

Enerpac® RR-1012 Double Acting Long Stroke Hydraulic Cylinder, 10 ton Capacity, 12 in L Stroke, 10000 psi
Enerpac® hydraulic cylinders are available in hundreds of different configurations. Whatever the industrial application lifting, pushing, pulling, bending, holding, whatever the force capacity, stroke length, or size restrictions, single- or double-acting, solid or hollow plunger, you can be sure that Enerpac® has the cylinder to suit your high force application.
-
BrandEnerpac®
-
UPC662005303311
-
Manufacturer Part NumberRR-1012
-
CountryUSA
-
Capacity10 ton
-
FinishBaked Enamel
-
Pressure Rating10000 psi
-
TypeDouble Acting Long Stroke
-
SeriesRR
-
Housing MaterialSteel
-
Stroke Length12 in
- Double acting cylinders are rugged enough for the toughest job site uses and precision designed for high cycle industrial use
- Collar threads, plunger threads and base mounting holes enable easy fixturing (on most models)
- Baked enamel finish for increased corrosion resistance
- Removable hardened saddles protect plunger during lifting and pressing
- Built-in safety valve prevents accidental over pressurization
- Plunger wiper reduces contamination, extending cylinder life
- 2.23 sq-in push/0.8 sq-in pull cylinder effective area
- 18 in collapsed height
- 30 in extended height
- 1.69 in cylindrical bore diameter
- 1.44 in base to advance port
- 2-1/4 in top to return port
- 1.38 in saddle diameter
- 0.24 in saddle protrusion from plunger
- 1-8 plunger internal thread
- 1 in plunger thread length
- 2-1/4 -14 in collar thread
- 1.06 in collar thread length
- 2.88 in outside diameter
-
UNSPSC27121602
-
IncludesCR-400 Coupler
-
Standards/ApprovalsASME B30.1
-
Instruction/Installation Manual
-
Catalog
-
Specification Sheet
