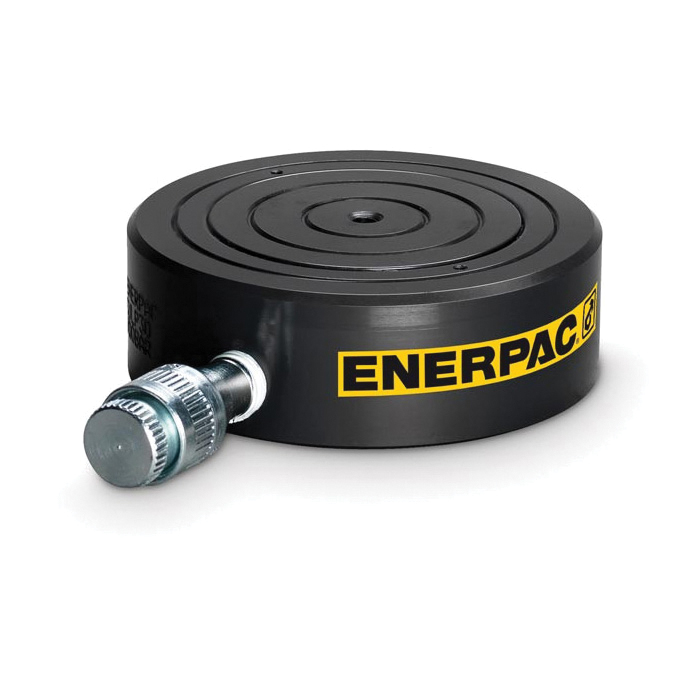

Enerpac® CULP20 Load Return Single Acting Solid Plunger Ultra-Flat Hydraulic Cylinder With Stop Ring, 22.2 ton Advance Capacity, 2.36 in Bore, 0.24 in L Stroke, 1.26 in Retract, 10150 psi Pressure
Enerpac® CULP20 Load Return Single Acting Solid Plunger Ultra-Flat Hydraulic Cylinder With Stop Ring, 22.2 ton Advance Capacity, 2.36 in Bore, 0.24 in L Stroke, 1.26 in Retract, 10150 psi Pressure
-
BrandEnerpac®
-
UPC662005394951
-
Manufacturer Part NumberCULP20
-
CountryUSA
-
Capacity22.2 ton Advance
-
Port Size1/4-18 NPTF
-
Pressure Rating10150 psi
-
TypeLoad Return Single Acting Solid Plunger Ultra-Flat
-
Retract1.26 in
-
SeriesCULP Series
-
Housing MaterialSteel
-
Dimensions3.54 in OD x 1.5 in H
-
Stroke Length0.24 in
-
Bore Size2.36 in
- Up to 4% side load of maximum capacity
- Stop ring for maximum stroke limitation
- Extremely low collapsed height
- Nitrocarburized surface treatment for harsh conditions
- Coupler AR630 including dustcap - use HB7206 hose including AH630 coupler to connect to your pump
-
UNSPSC27121602
-
Standards/ApprovalsEAR99|ETC Certified
-
WarrantyLimited
-
Specification Sheet
-
Instruction/Installation Manual
-
Warranty Information
-
Line Drawing
