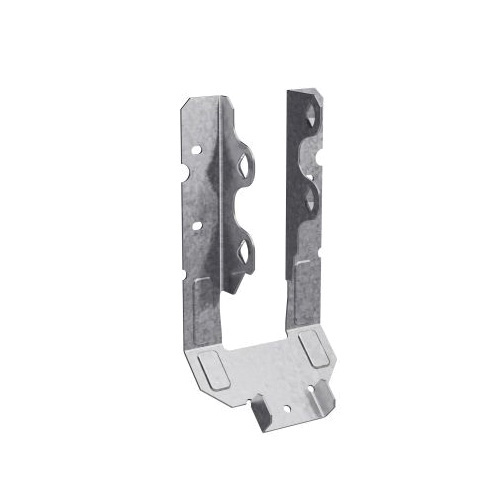

Simpson Strong-Tie® LRU26Z Face-Mount Rafter Hanger, 2 x 6 in Joist, 18 ga, Steel, ZMAX® Galvanized
The LRUZ offers an economic alternative for those applications requiring a sloped hanger for rafter-to-ridge connections. Used with solid sawn rafters, the LRUZ's unique design enables the hanger to be installed either before or after the rafter is in place. The field-adjustable seat helps improve job efficiency by eliminating mismatched angles in the field and lead times associated with special orders. The LRUZ offers comparable or better load capacity to other rafter hangers at a reduced cost while using fewer fasteners.
-
BrandSimpson Strong-Tie®
-
UPC707392266242
-
Manufacturer Part NumberLRU26Z
-
CountryUSA
-
FinishZMAX® Galvanized
-
MaterialSteel
-
Gauge18 ga
-
TypeFace-Mount
-
Height5-1/4 in
-
Width1-9/16 in
-
SeriesLRU
- The open design and ability to field-adjust the slope make the LRUZ ideal for both retrofit or new applications
- Accommodates roof pitches from 0:12 to 14:12
- Slopes up or down to 45 deg (12:12), for downward slopes greater than 45 deg up to 49 deg (14:12), allowable downloads are 0.85 of table loads
- For added versatility, the fasteners on the face of the hanger are placed high, enabling the bottom of the rafter to hang below the ridge beam
- Can be installed using nails or Strong-Drive® SD connector screws
| Cross-Reference Number |
|---|
| 100225 |
-
UNSPSC31162306
-
Package Description1/PK
-
Standards/ApprovalsICC-ES ESR-2551/2523|State of Florida - FL10447
-
WarrantyLimited
-
Specification Sheet
