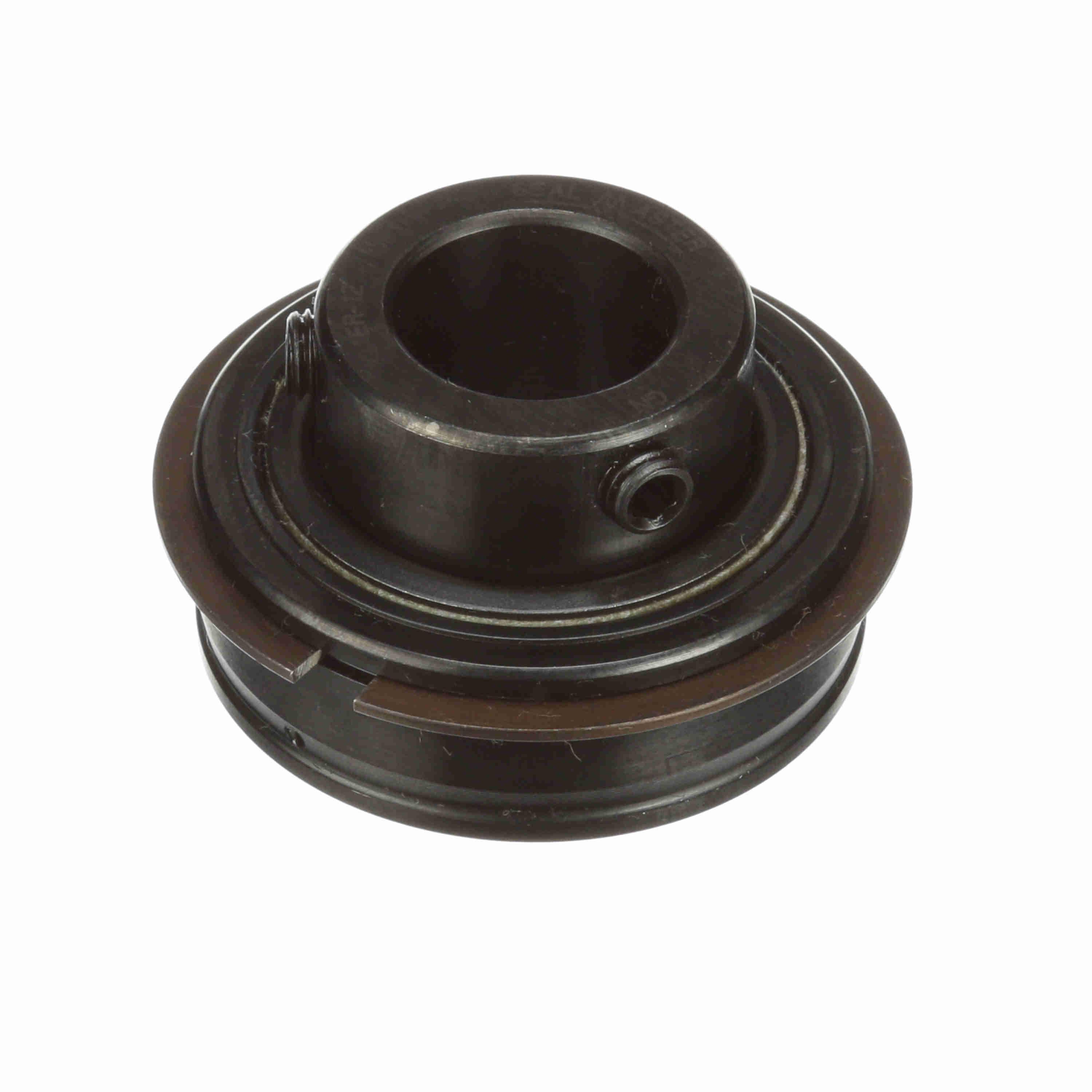

Sealmaster® 701076 Straight Bore Ball Bearing Insert With Snap Ring, 1-7/8 in Dia Bore, 3.543 in OD, 2.031 in W, 7889 lb Dynamic/5216 lb Static Load
Sealmaster® gold ER bearings feature a cylindrical OD and snap ring for easy installation in a roll assembly. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.
-
BrandSealmaster®
-
UPC662461008744
-
Manufacturer Part Number701076
-
CountryUSA
-
Load Capacity7889 lb Dynamic/5216 lb Static
-
Cage MaterialBrass
-
Temperature Rating-20 to 220 deg F
-
FinishBlack Oxide Coated
-
Maximum Speed3550 rpm
-
TypeStraight Bore
-
Seal MaterialFelt
-
Width2.031 in
-
SeriesER Series
-
Bearing MaterialSteel
-
Outside Diameter3.543 in
-
Bore Diameter1-7/8 in
- ER style cylindrical OD bearing with snap and with black oxided bearing rings
- Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
- Lithium complex NLGI #2 grease with an EP additive
- ER style cylindrical OD bearing with snap and with black oxided bearing rings_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Felt labyrinth seal and flinger for dry and dusty environment_x005f Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
-
Alternative Part NumberER-30
-
UNSPSC31171504
-
Package DescriptionEACH
-
Standards/ApprovalsABMA Standard
-
