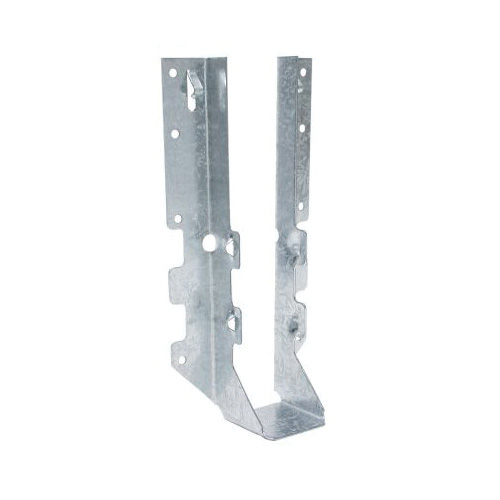

Simpson Strong-Tie® LUS210 Double-Shear Face-Mount Joist Hanger, 2 x 10 in Joist, 18 ga, Steel, Galvanized
The double-shear hanger series, ranging from the light-capacity LUS hangers to the highest-capacity HGUS hangers, feature innovative double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation and the use of all common nails for the same connection. For medium-load truss applications, the MUS offers a lower-cost alternative and easier installation than the HUS or THA hangers, while providing greater load capacity and bearing than the LUS.
-
BrandSimpson Strong-Tie®
-
UPC044315684005
-
Manufacturer Part NumberLUS210
-
CountryUSA
-
FinishGalvanized
-
MaterialSteel
-
Gauge18 ga
-
TypeDouble-Shear Face-Mount
-
Height7-13/16 in
-
Width1-9/16 in
-
SeriesLUS
- Patented double-shear nailing design provides greater strength with fewer nails
- Speed prongs for fast and easy installation
- Angled joist nailing easier in tight spaces
- Do not bend or remove tabs
- Galvanized (G90) for extra corrosion resistance
- This product is preferable to similar connectors because of (a) easier installation,(b) higher loads, (c) lower installed cost, or a combination of these features
- Value engineered
| Cross-Reference Number |
|---|
| 113115 |
-
UNSPSC31162306
-
Package Description1/PK
-
Standards/ApprovalsICC-ES ESR-2549/3096|City of Los Angeles RR25807/RR25910|State of Florida - FL10655
-
WarrantyLimited
-
Specification Sheet
