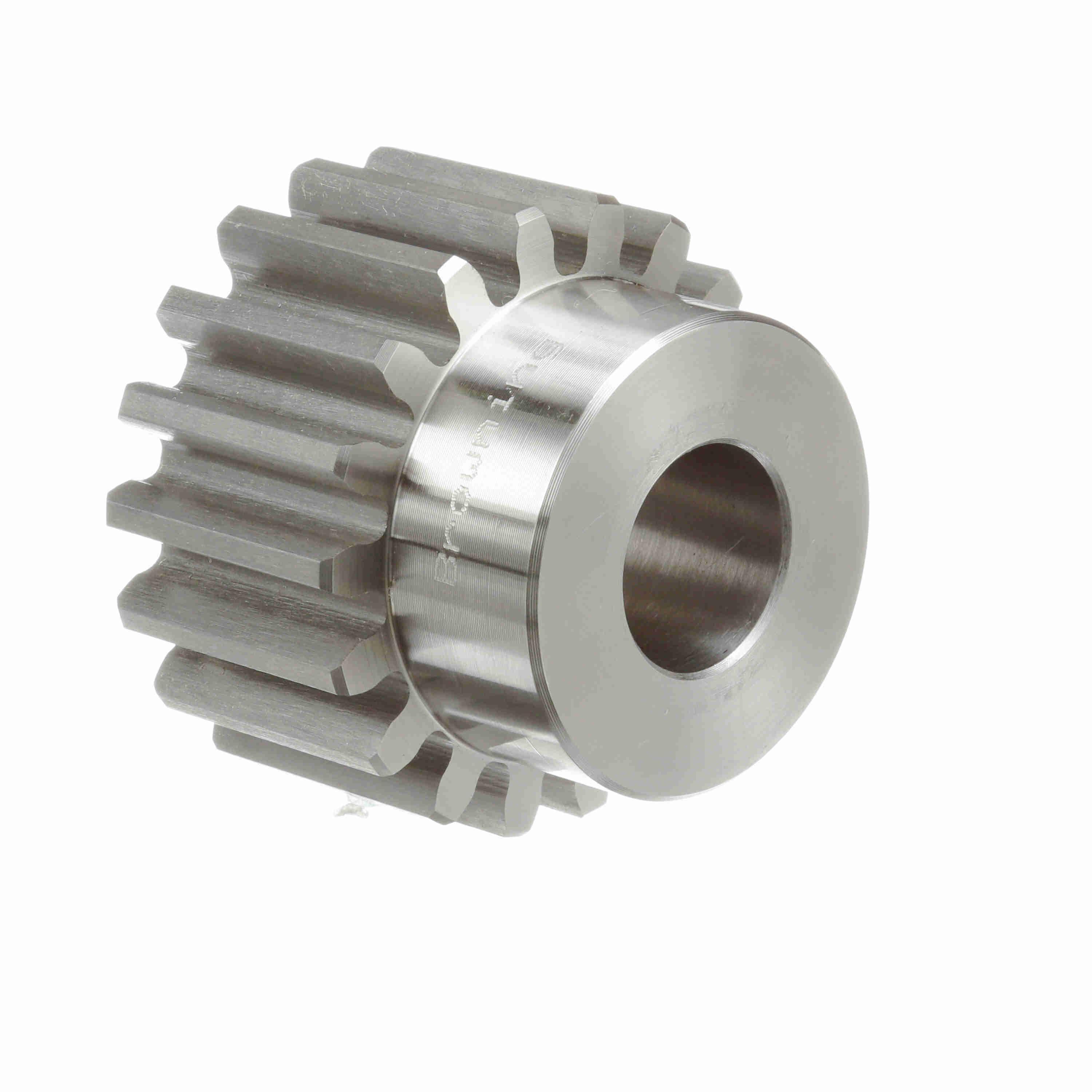

Browning® 1212273 Minimum Plain Bore Spur Gear, 8 Diametral Pitch, 14.5 deg, 1-1/4 in W Face, 12 Teeth, 1-1/2 in Dia Pitch, 3/4 in Dia Bore, Steel
Browning® offers a comprehensive line of off-the-shelf gears, including spur, miter, bevel and change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14-1/2 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289153619
-
Manufacturer Part Number1212273
-
CountryUSA
-
Face Width1-1/4 in
-
Pitch Diameter1-1/2 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
TypeMinimum Plain Bore
-
Hub Diameter1-1/8 in
-
Hub Projection3/4 in
-
Diametral Pitch8
-
Number of Teeth12
-
Outside Diameter1-3/4 in
-
Bore Diameter3/4 in
-
Overall Length2 in
- When you think Special Gears - Think Browning
-
Alternative Part NumberNSS812
-
UNSPSC31171707
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
Package DescriptionEACH
-
