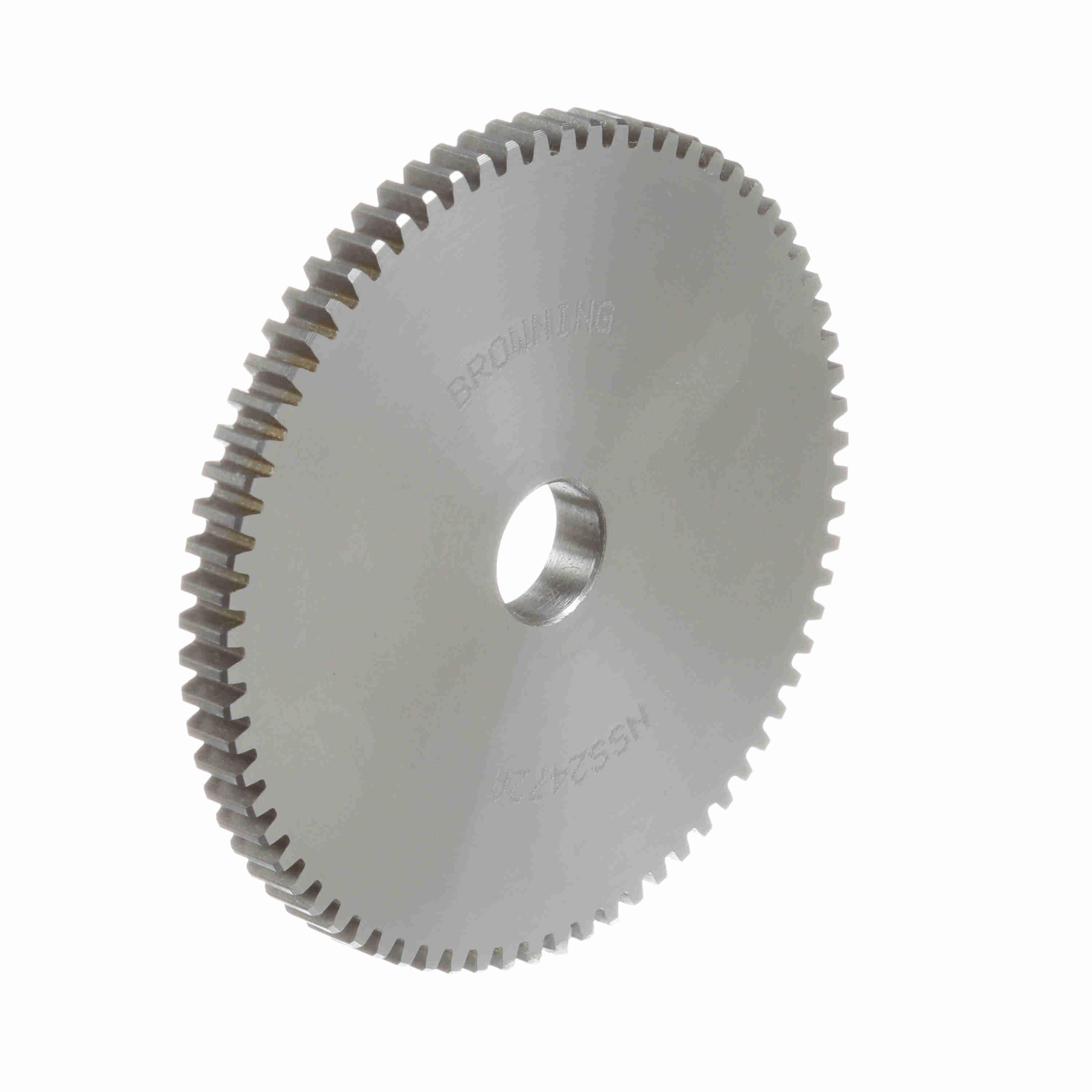

Browning® 1209857 Minimum Plain Bore Type A2 Spur Gear, 32 Diametral Pitch, 14.5 deg Pressure Angle, 0.188 in W Face, 96 Teeth, 3 in Dia Pitch, 3/8 in Dia Bore, Steel
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289271054
-
Manufacturer Part Number1209857
-
CountryUSA
-
Face Width0.188 in
-
Pitch Diameter3 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
TypeMinimum Plain Bore Type A2
-
Diametral Pitch32
-
Number of Teeth96
-
Outside Diameter3.06 in
-
Bore Diameter3/8 in
-
Overall Length0.188 in
- Helical Gears are quieter than spur gears and give maximum smoothness on parallel shafts
-
Alternative Part NumberNSS3296A
-
UNSPSC31171707
-
Package DescriptionEACH
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
