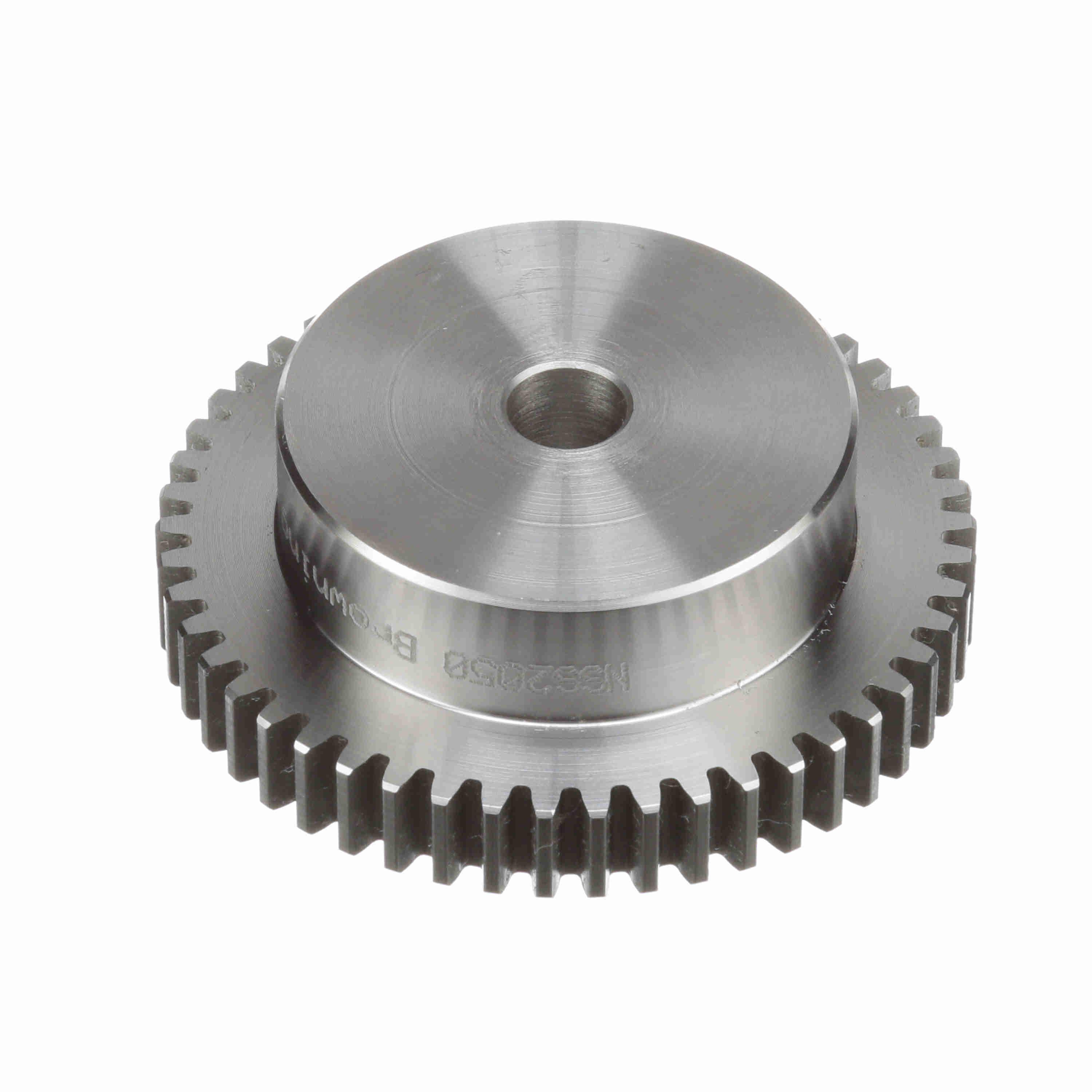

Browning® 1210749 Minimum Plain Bore Type 2 Spur Gear, 20 Diametral Pitch, 14.5 deg Pressure Angle, 3/8 in W Face, 55 Teeth, 2-3/4 in Dia Pitch, 3/8 to 1 in Dia Bore, Steel
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289301935
-
Manufacturer Part Number1210749
-
CountryUSA
-
Face Width3/8 in
-
Pitch Diameter2-3/4 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
Gear Ratio1:1
-
TypeMinimum Plain Bore Type 2
-
Hub Diameter1.813 in
-
Hub Projection1/2 in
-
Diametral Pitch20
-
Number of Teeth55
-
Outside Diameter2.85 in
-
Bore Diameter3/8 to 1 in
-
Overall Length7/8 in
- When you think Special Gears - Think Browning
-
Alternative Part NumberNSS2055
-
UNSPSC31171707
-
Package DescriptionEACH
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
