RBC Bearings 1-3/8"-OD CROWNED YOKE ROLLERS RBC C-Y-44-L

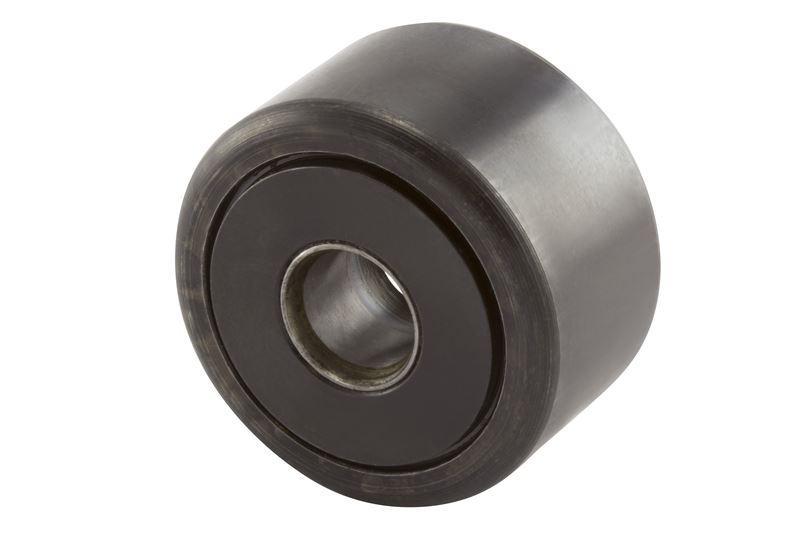

RBC® CY44L Universal Series™ Yoke Cylindrical Roller Cam Follower, 3/8 in Dia Bore, 1-3/8 in Dia x 3/4 in W Roller, 8500 lb Load, Chrome Steel Roller
-
BrandRBC®
-
UPC637400005351
-
Manufacturer Part NumberCY44L
-
CountryUSA
-
Load Capacity8500 lb
-
Temperature Rating0 to 250 deg F
-
FinishBlack Oxide
-
Maximum Speed2620 rpm
-
Closure TypeDouble Seal
-
TypeYoke
-
Roller Diameter1-3/8 in
-
Roller MaterialChrome Steel
-
Roller Width3/4 in
-
SeriesUniversal Series™
-
Bore Diameter3/8 in
-
Overall Width13/16 in
- Yoke type design allows for clevis mounting which provides support on both sides of the cam follower and permits use of a high strength pin
- Crowned outer ring to better accommodate mild application misalignment
- Designed for moderate loads
- Double sealed to keep grease in and contaminants out
- 4200 lb dynamic/8500 lb static
- Without stud
-
UNSPSC31171530
-
Package Description1/PK
-
Standards/ApprovalsANSI/ABMA Standard 11|ASPR|CAS|DFAR|FAR Standards
-
Warranty90 Days
-
