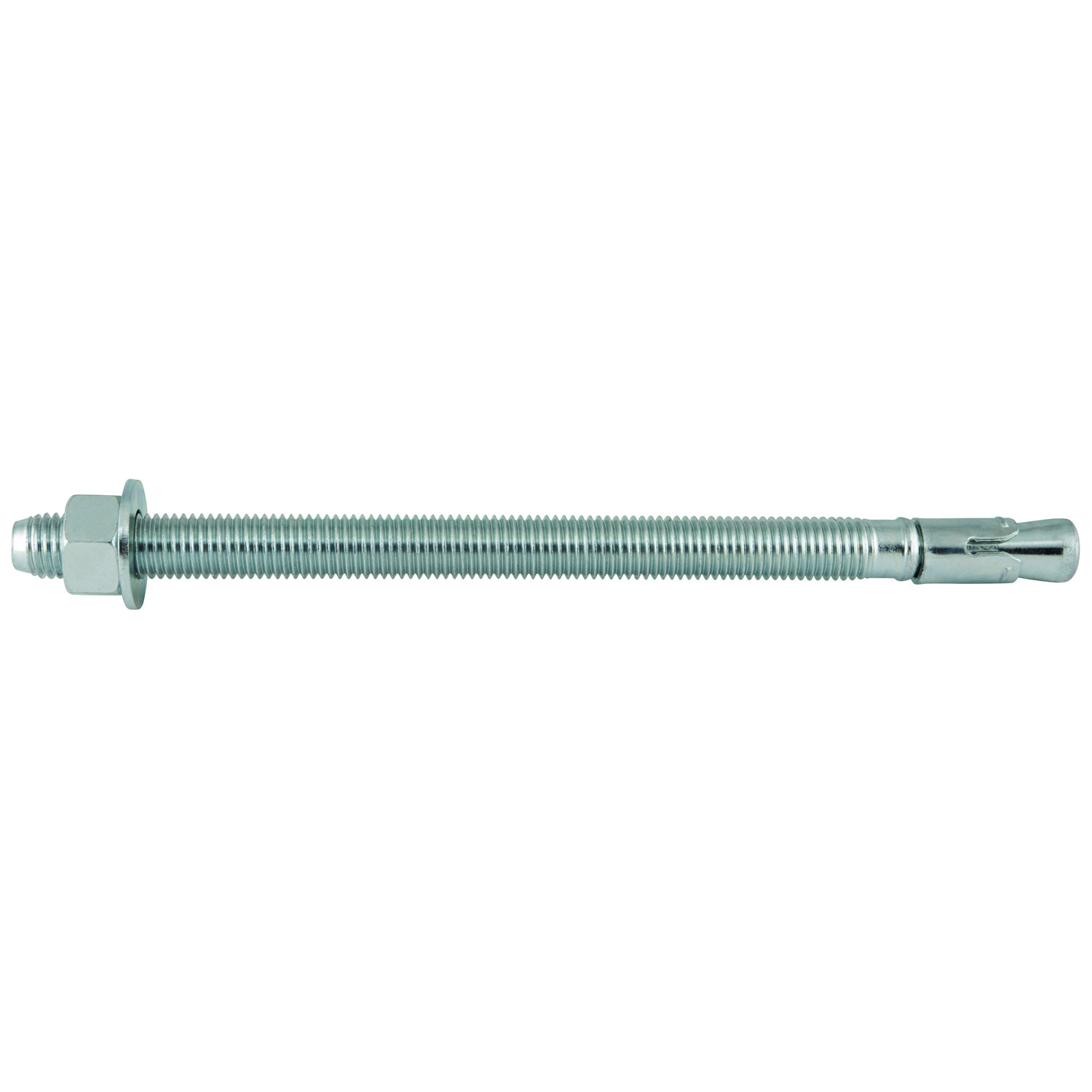

POWERS 3/4" X 12" ZINC CONCRETE ANCHORS PWR 7451

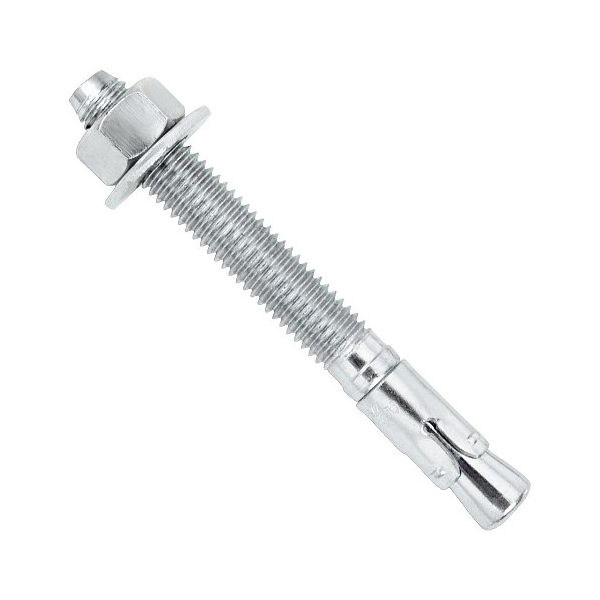

The Power-Stud anchor is a fully threaded, torque-controlled, wedge expansion anchor. It is available in threaded, rod hanger and tie-wire versions suitable for applications in solid concrete and grout filled concrete masonry. The carbon steel threaded version is suitable for a variety of applications. The drill bit diameter necessary for proper installation is the same as the anchor diameter.
-
BrandDeWALT®
-
UPC075352781303
-
Manufacturer Part Number7451SD1
-
CountryUSA
-
FinishZinc Plated
-
Tensile Strength7860 lb
-
Thread Length9-1/2 in
-
MaterialCarbon Steel
-
Thread Size3/4-10
-
Thread TypeUNC
-
Maximum Work Thickness7-7/8 in
-
Minimum Embedment Depth3-3/8 in
-
Shear Strength12685 lb
-
Diameter3/4 in
-
Drill Size3/4 in
-
Overall Length12 in
-
TypeExpansion
-
Head TypeHex
- Consistent performance in high and low strength concrete
- Nominal drill bit size is the same as the anchor diameter
- Anchor can be installed through standard fixture holes
- Anchor design allows for follow-up expansion after setting under tensile loading
- Length ID code and identifying marking stamped on head of each anchor
- Anchor design allows for follow-up expansion after setting under tensile loading ultimate pullout 5440 lb

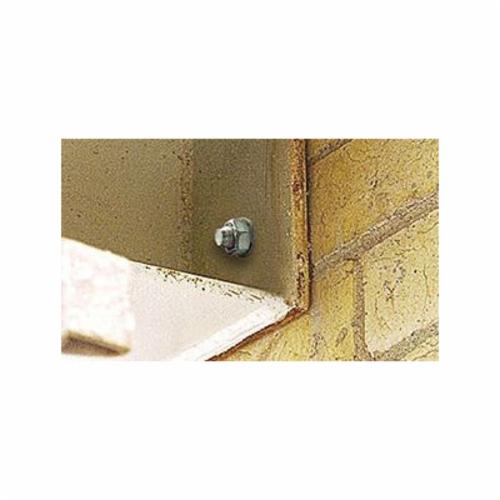

- Normal weight concrete, structural sand-light weight concrete, concrete over steel deck and grouted concrete masonry are applicable materials
| Competitor Name | Cross-Reference Number |
|---|---|
| Fastenal | 2140548 |
-
UNSPSC31162102
-
Package DescriptionEACH
-
Standards/ApprovalsICC-ES AC01, ESR-2818/2966|UL Listed
-
