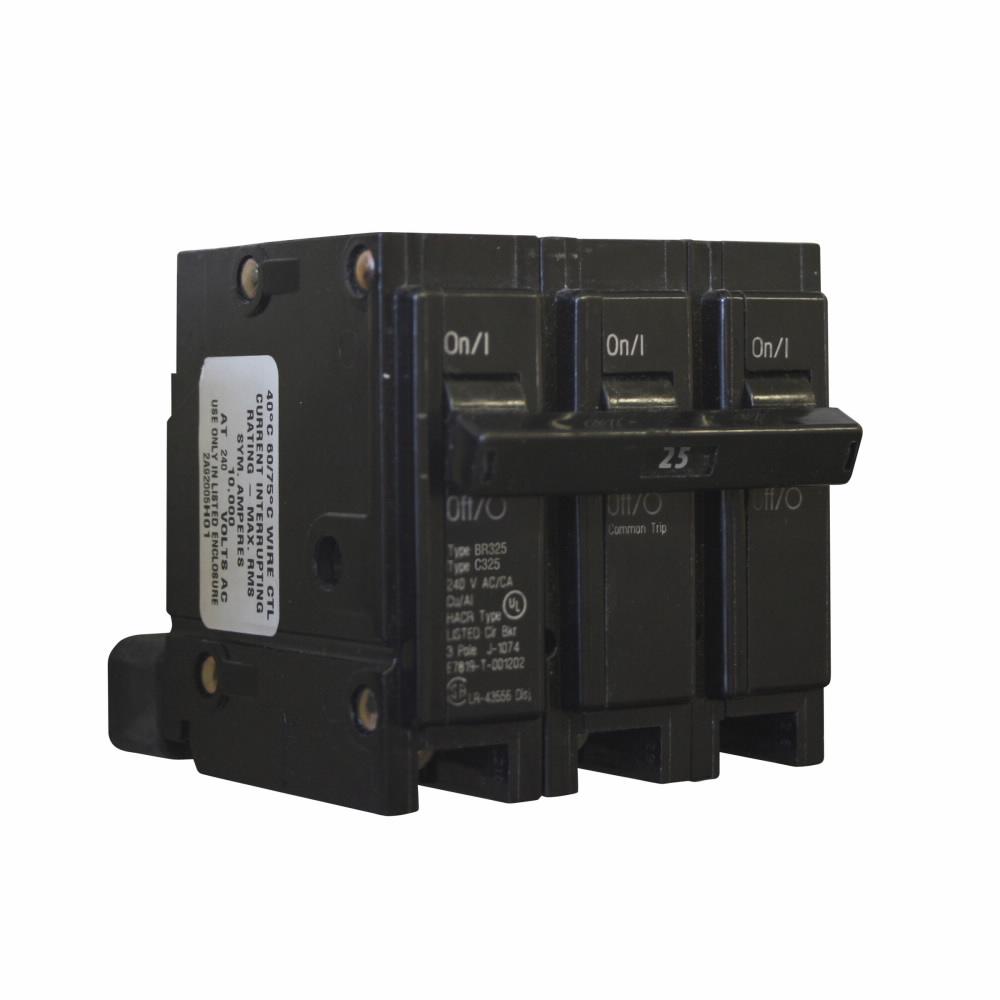

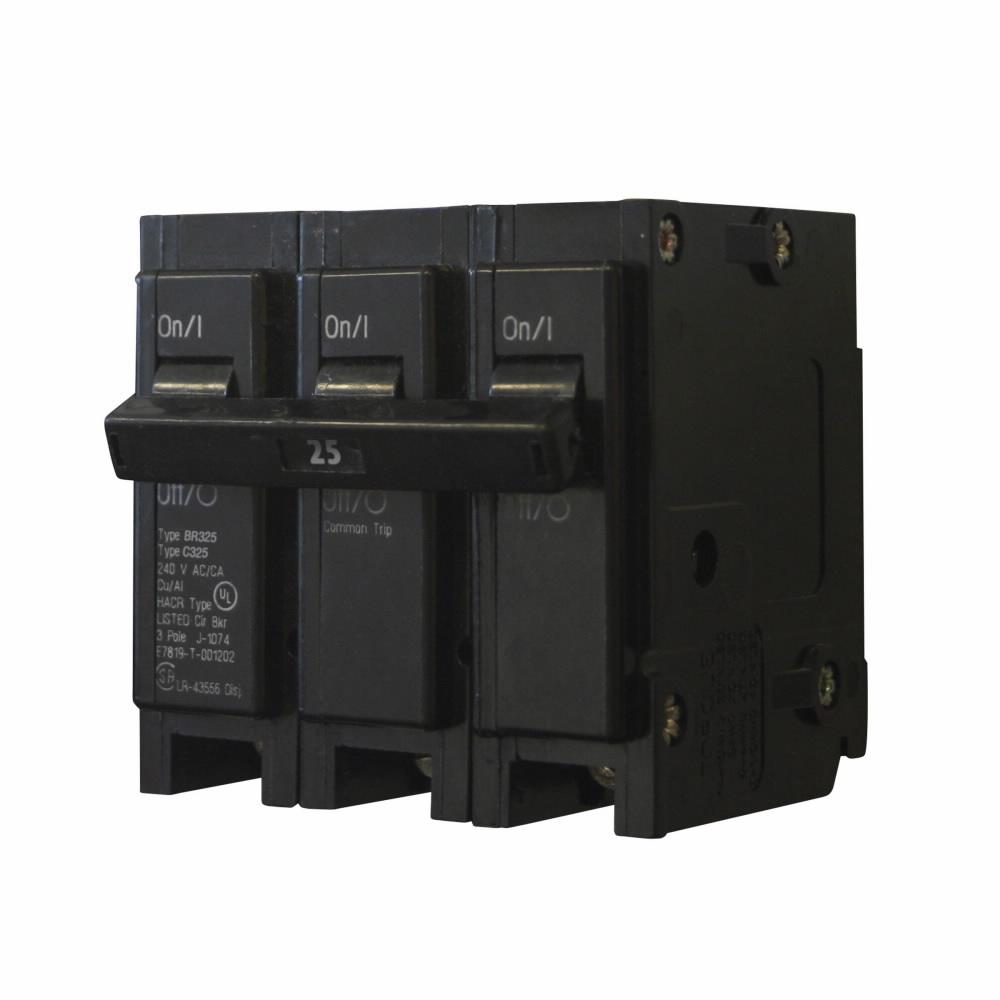

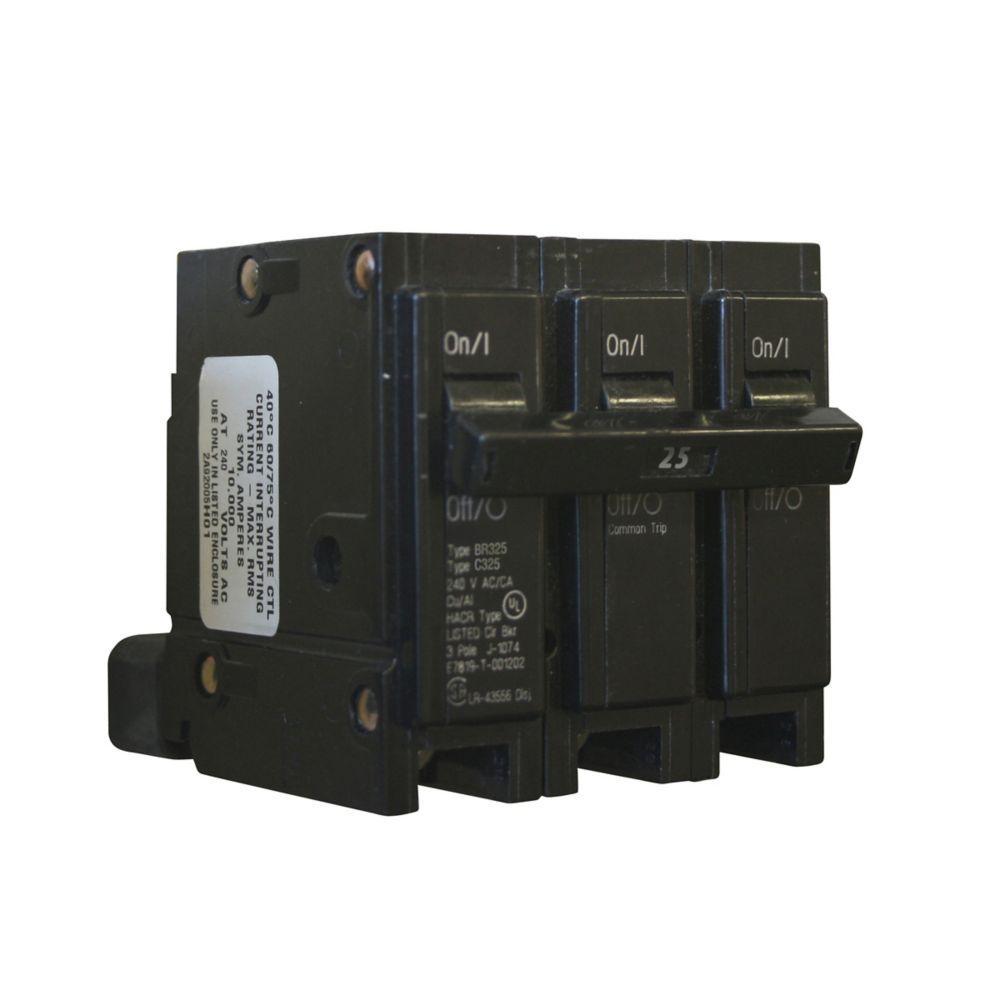

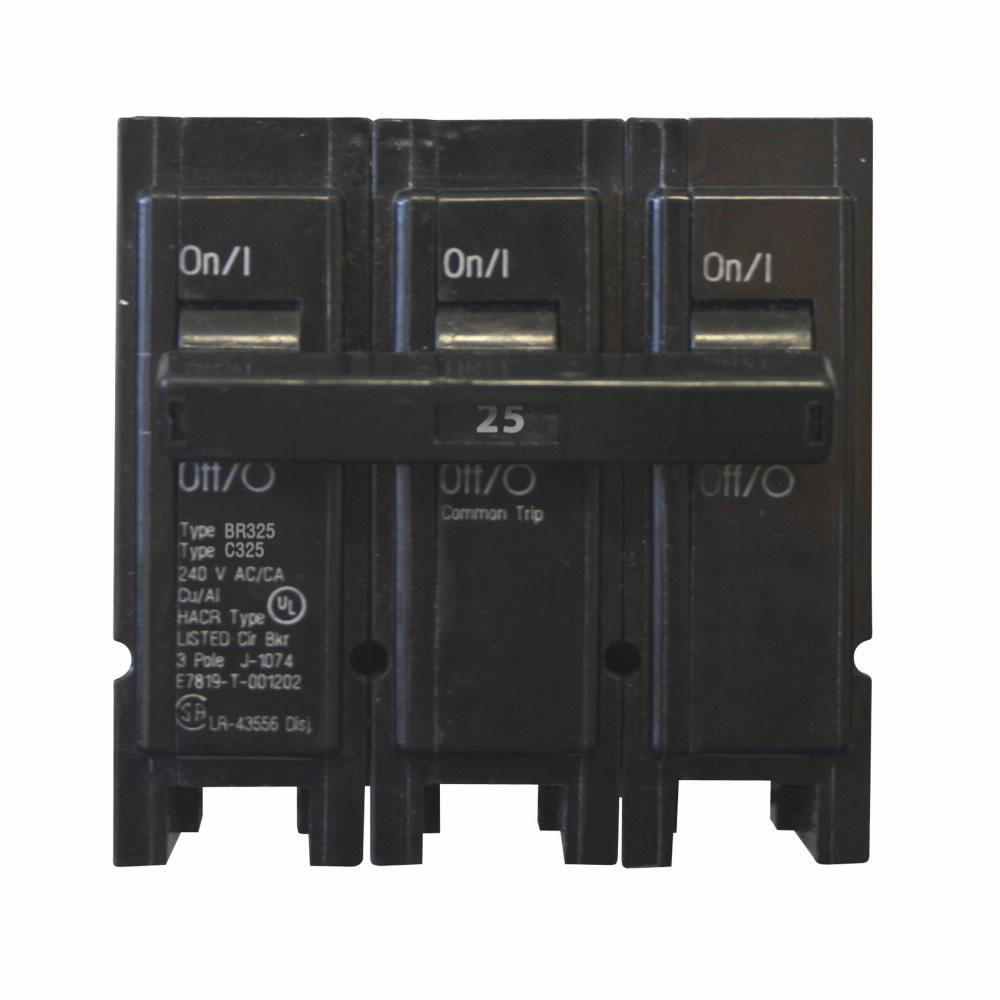

EATON BR325 Type BR Circuit Breaker, 240 V AC, 25 A, 10 kA Interrupt, 3 Poles
Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.
-
BrandEATON
-
UPC786676000093
-
Manufacturer Part NumberBR325
-
CountryUSA
-
Temperature Rating40 deg C
-
MaterialThermoset
-
Frequency Rating60 Hz
-
Trip TypeCommon/Thermal Magnetic
-
TypeType BR
-
Connection TypeBox Lug/Clamp
-
Mounting TypePlug-On
-
Actuator TypeHandle
-
Voltage Rating240 V AC
-
Amperage Rating25 A
-
Wire Size14 to 4 AWG
-
Number of Poles3
-
Dimensions3 in L x 3 in W x 3 in H
-
Interrupt Rating10 kA
-
Phase3
- All are type IC (interchangeable) devices, several ratings are SWD and HARC approved
- Each pole of the circuit breaker will provide inverse time delay overload and instantaneous short circuit protection by means of both thermal and magnetic sensors
- The circuit breaker calibration shall not be affected by environmental changes in relative humidity
- All circuit breakers shall be operated by a toggle type handle and multipole circuit breakers shall have an internal common trip mechanism
- Contacts shall be of non-welding silver alloy
- All circuit breakers shall have the trip rating inscribed on the handle on each circuit breaker pole
- Circuit breakers shall be completely enclosed in a molded case of thermoset material
- All terminals shall be listed for use with copper/aluminum conductors
- Terminals shall be of the box lug or clamp type design
- The terminals shall meet UL 486B requirements and shall be suitable for use with either 60 or 75 deg C wire
-
Alternative Part Number7430689
-
UNSPSC39121601
-
IDEA Index ID7430689
-
Package DescriptionEACH
-
Standards/ApprovalsUL 489,Federal Specifications Classification W-C375
-
Warranty10 years Limited
-
