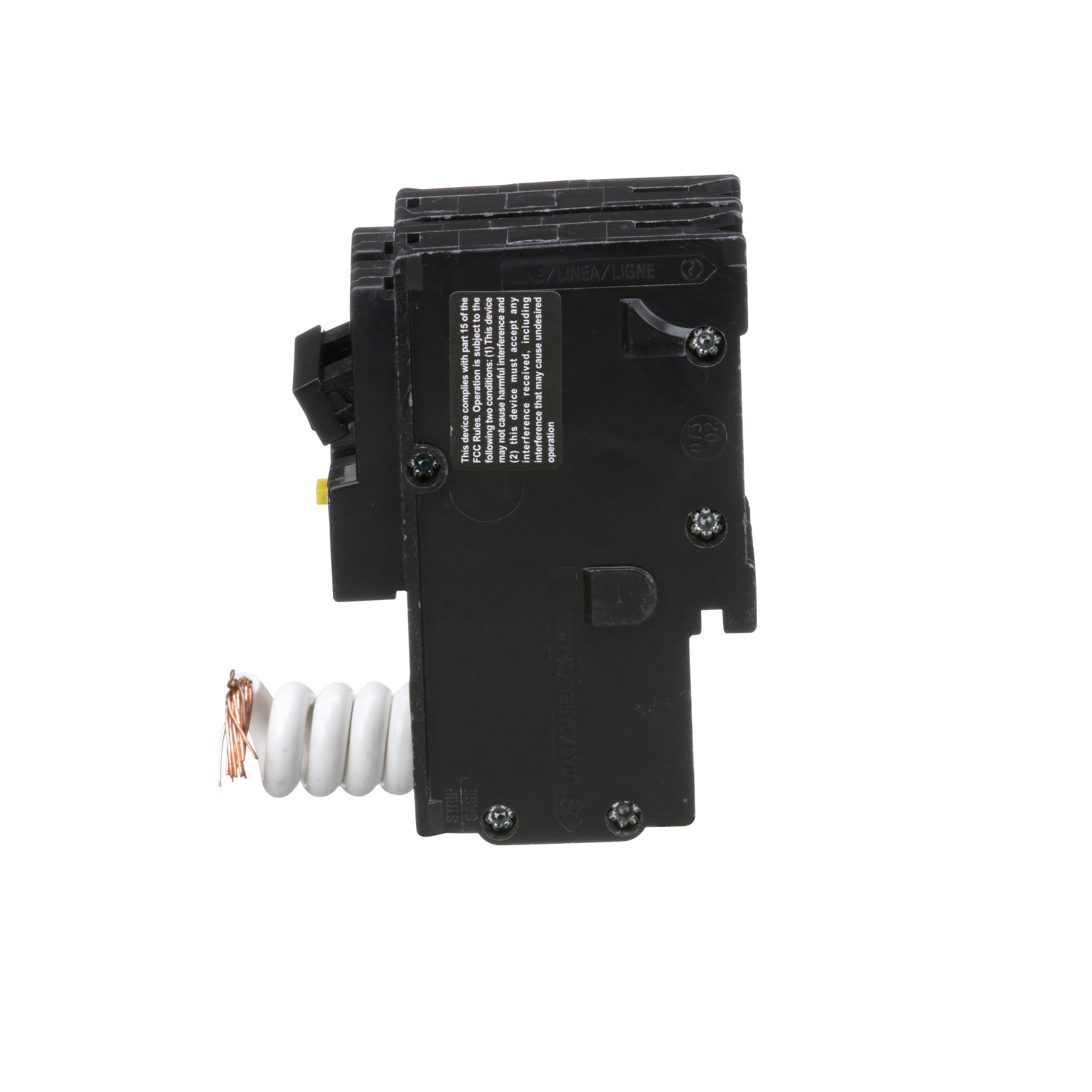

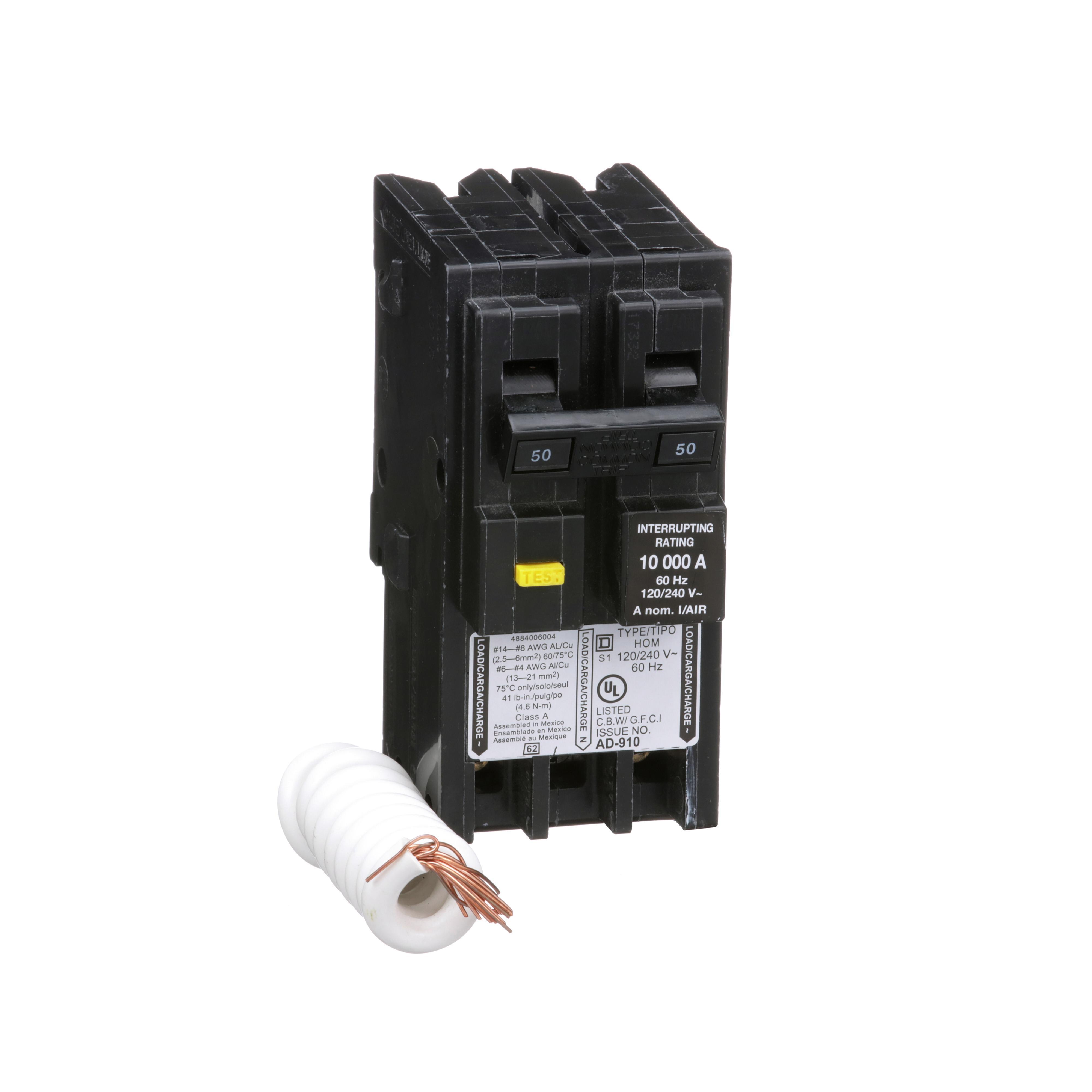

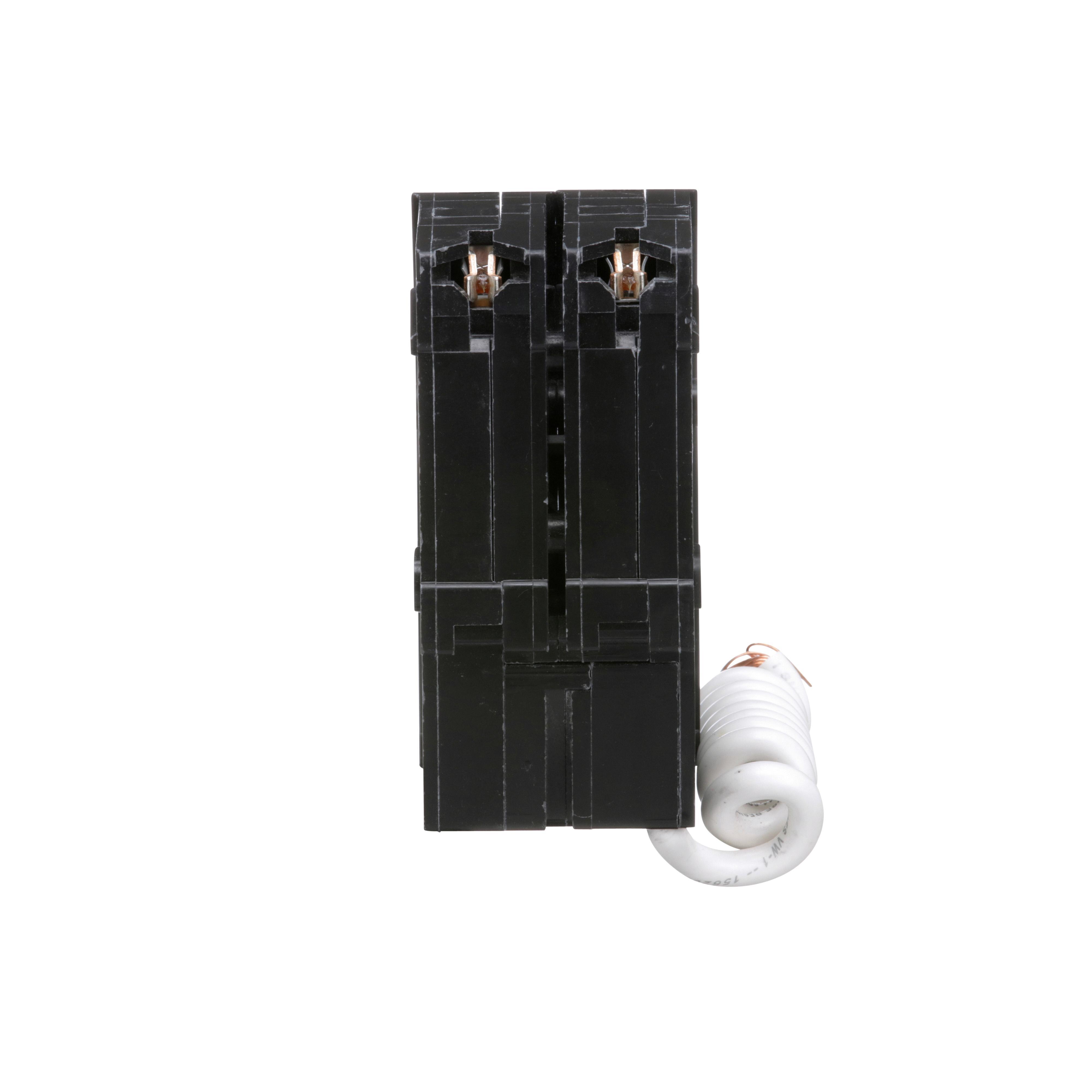

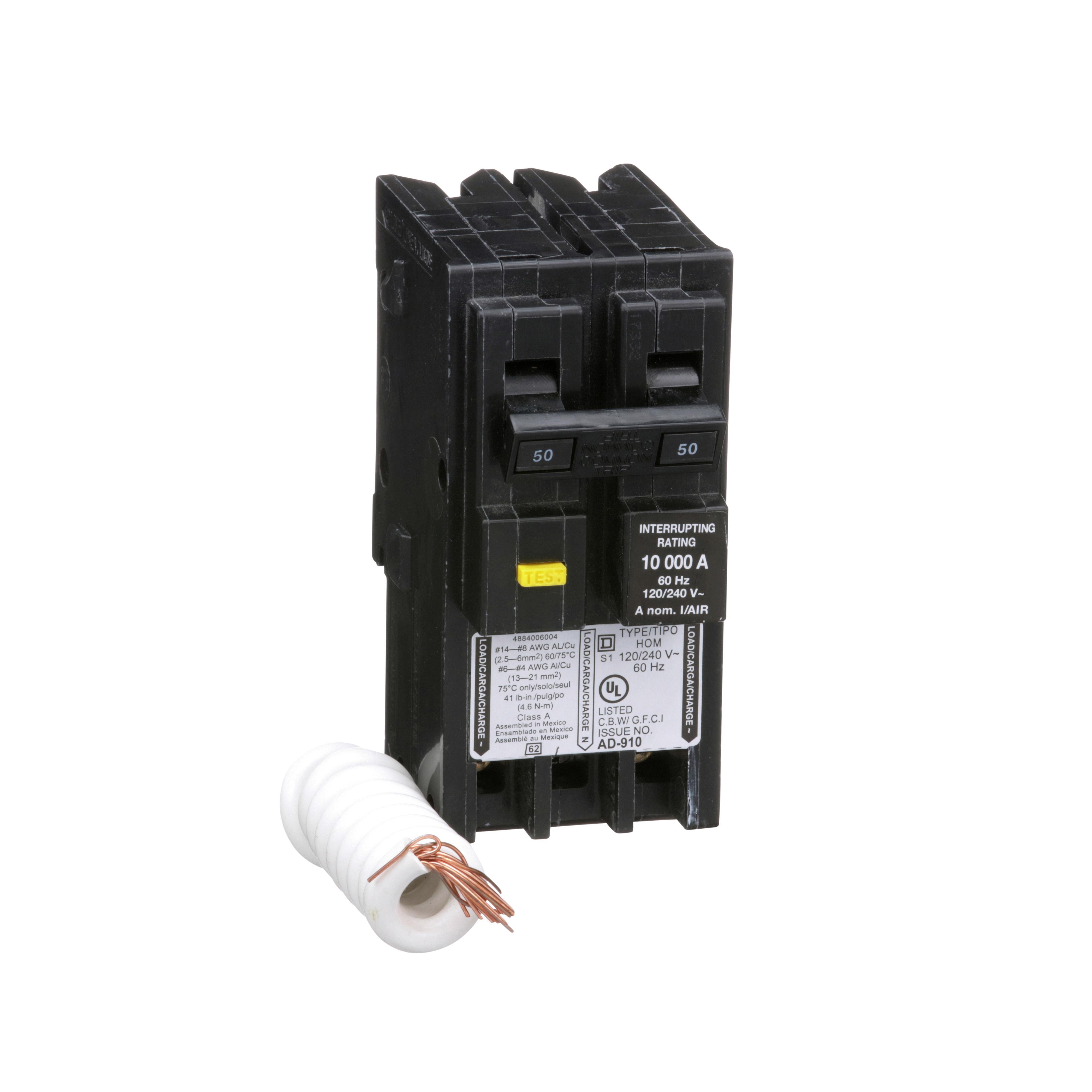

Square D™ HOM250GFI HOM Class A Ground Fault Miniature Circuit Breaker, 120/240 V AC, 50 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 50A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. This Homeline ground fault circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 milliamperes or more. The electrical connection is a clamp terminal that will accept 1 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.
-
BrandSquare D™
-
UPC785901783572
-
Manufacturer Part NumberHOM250GFI
-
CountryUSA|Canada
-
Temperature Rating40 deg C
-
FrameHOM
-
Frequency Rating50/60 Hz
-
Trip TypeThermal Magnetic
-
TypeClass A Ground Fault
-
Connection TypeTerminal Screw
-
Mounting TypePlug-In
-
Voltage Rating120/240 V AC
-
Amperage Rating50 A
-
SeriesHOM
-
Wire Size14 to 6 AWG, 12 to 4 AWG
-
Number of Poles2
-
Dimensions2.98 in L x 2 in W x 3.13 in H
-
Interrupt Rating10 kA
-
Phase1
- Homeline GFCI MCB are designed to protect against irregular electrical current
- Compatible with Homeline electrical panel and CSEDs
- Protects against overload, short curcuits, and ground faults with a current greater than 6mA
- Frees gutter space no pigtails
- Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
- Faster and easier wiring, all spaces accept tandems
- Market leading circuit protection designed for superior safety, quality and reliability, engineered with the quality and craftsmanship that have made square D™ the preferred brand of electrician and homeowners
- Homeline™ circuit breakers offer a full range of amperage, poles and advanced function devices that offer superior arc fault, combination arc fault (CAFI) and ground fault (Class A, GFCI) and dual function (CAFI and GFCI) protection
- 14 to 8 AWG Al/Cu wire
- Square D offers Homeline a wide range of circuit breakers to meet all National Electric Code requirements and provide superior electrical safety
- Faster installation - Fewer connections
- Multiple applications - Homeline Circuit Breakers offer a full range of amperage, poles, and advanced function devices that offer superior Arc Fault, Combination Arc Fault (CAFI), and Ground Fault (Class A, GFCI), and Dual Function (CAFI and GFCI) Protection
- 14 - 8 AWG copper/aluminum
- K-Curve trip
-
Alternative Part Number8029524
-
UNSPSC39121603
-
IDEA Index ID8029524
-
Package DescriptionEACH
-
Standards/ApprovalsBuy American Act Compliant|RoHS Compliant|UL Listed|CSA Certified|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov
-
WarrantyLifetime
-
