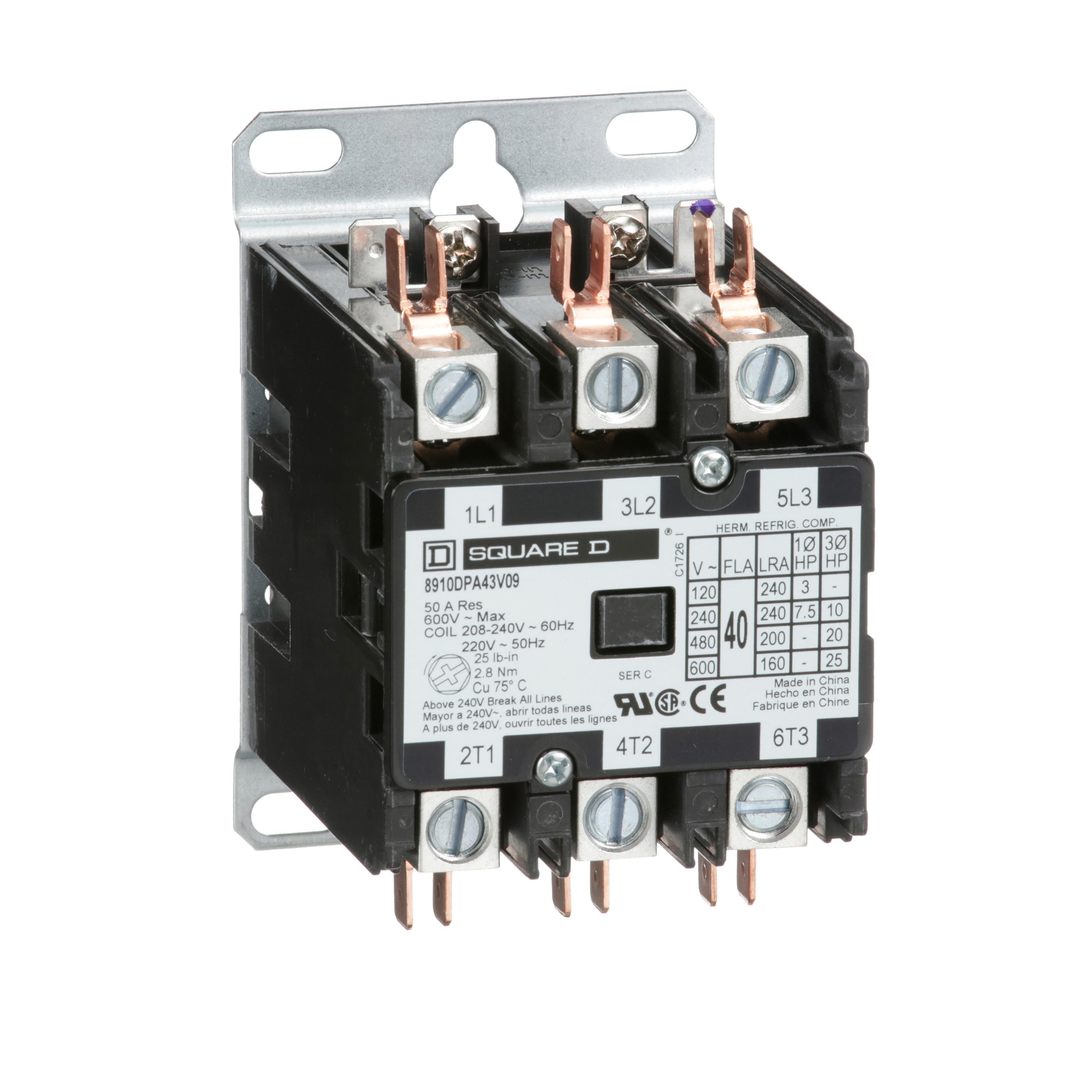

Square D™ 8910DPA43V09 3-Phase Electromechanical Type DPA Definite Purpose Contactor, 208/220/240 V AC V Coil, 40 A, 3NO Contact, 3 Poles
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes. It also has a 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase and 25 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz, 220 VAC 50 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.
-
BrandSquare D™
-
UPC785901073437
-
Manufacturer Part Number8910DPA43V09
-
CountryUSA
-
Terminal TypeQuick-Connect
-
Maximum Load Current40 A
-
Frequency Rating50/60 Hz
-
Coil Power Rating3 hp at 115 VAC/7.5 hp at 230 VAC/10 hp at 230 VAC/20 hp at 460 VAC/25 hp at 575 VAC
-
Coil Voltage208/220/240 V AC
-
Type3-Phase Electromechanical Type DPA
-
Connection TypeBinding Head Screw
-
Contact Configuration3NO
-
Mounting TypeDIN Track/Panel
-
Contact Rating600 V AC
-
Contact TypeNon-Reversing
-
Series8910
-
Number of Poles3
-
Dimensions2.5 in W x 3.12 in D x 4 in H
-
Operating Cycles500000 cycles Mechanical/200000 cycles Electrical Cycles
-
Operating Temperature32 to 149 deg F
-
Enclosure TypeOpen
- Electrical systems protection from overloads and short circuits
- Quick connect terminals and binder head screws for easy wiring
- Compact design and exclusive DIN mounting option
- Low Coil VA
- Straight-Through Wiring
- Continuous Duty Cycle
-
Alternative Part Number8006698
-
UNSPSC39121529
-
IDEA Index ID8006698
-
Package DescriptionEACH
-
Standards/ApprovalsCCN Guide No. NLDX2|CE Certified|CSA File No. LR25490/Class 3211-04|RoHS Compliant|UL File No. E3190|UL Recognized|PROP65: Cancer and Reproductive harm - www.P65Warnings.ca.gov
-
Warranty18 months
-
RoHS
-
Catalog
-
Specification Sheet
-
Instruction/Installation Manual
