RBC Bearings 2"-OD SEALED YOKE ROLLERS RBC Y-64-L

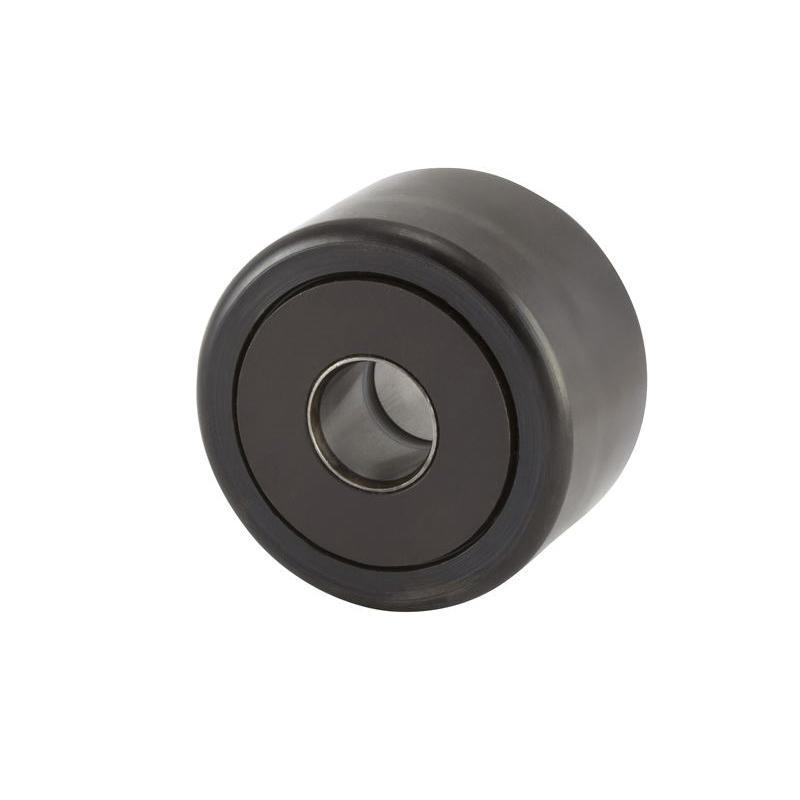

RBC® Y64L Universal Series™ Yoke Cylindrical Roller Cam Follower, 5/8 in Dia Bore, 2 in Dia x 1-1/4 in W Roller, 21200 lb Load, Chrome Steel Roller
-
BrandRBC®
-
UPC637400008710
-
Manufacturer Part NumberY64L
-
CountryUSA
-
Load Capacity21200 lb
-
Temperature Rating0 to 250 deg F
-
FinishBlack Oxide
-
Maximum Speed1570 rpm
-
Closure TypeDouble Seal
-
TypeYoke
-
Roller Diameter2 in
-
Roller MaterialChrome Steel
-
Roller Width1-1/4 in
-
SeriesUniversal Series™
-
Bore Diameter5/8 in
-
Overall Width1-5/16 in
- Yoke type design allows for clevis mounting which provides support on both sides of the cam follower and permits use of a high strength pin
- Designed for moderate loads
- Double sealed to keep grease in and contaminants out
- 9600 lb dynamic/21200 lb static
- Flat outside ring
- Without stud
-
UNSPSC31171530
-
Package Description1/PK
-
Standards/ApprovalsANSI/ABMA Standard 11|ASPR|CAS|DFAR|FAR Standards
-
Warranty90 Days
-
