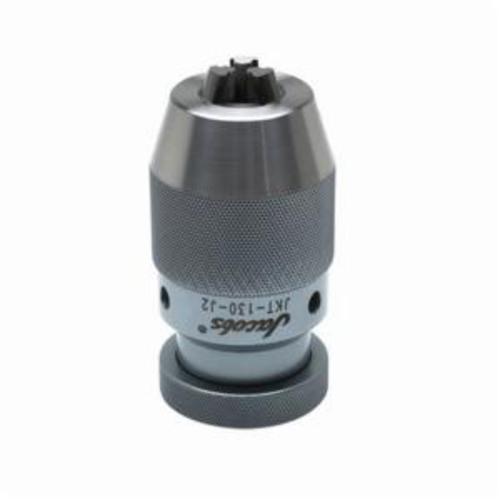

Jacobs® 30528 JKT 130-J33 High Precision/High Torque Keyless Drill Chuck, 0.039 to 0.512 in Capacity, 33JT Mounting, Ball Bearing
Jacobs® 30528 JKT 130-J33 High Precision/High Torque Keyless Drill Chuck, 0.039 to 0.512 in Capacity, 33JT Mounting, Ball Bearing
-
BrandJacobs®
-
UPC095456305281
-
Manufacturer Part Number30528
-
CountryUSA|Canada
-
Capacity0.039 to 0.512 in
-
Closed Length3.9 in
-
TypeHigh Precision/High Torque Keyless
-
Mounting Type33JT
-
SeriesJKT 130-J33
-
Bearing TypeBall
-
Open Length3.46 in
-
Outside Diameter1.81 in
- Precision tested and certified to 0.0016 in T.I.R max at half capacity
- Furnished with spanner wrench to allow the application of supplementary gripping torque
- Light tightening increases gripping torque up-to 3X higher than hand tightening
- Resists tool loosening on high speed machines with right hand rotation and instant spindle stop
- 2Js mount is a short taper
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 2YCJ8 |
-
UNSPSC27112807
-
Package Description1/BX
-
Warranty1 Year
-
