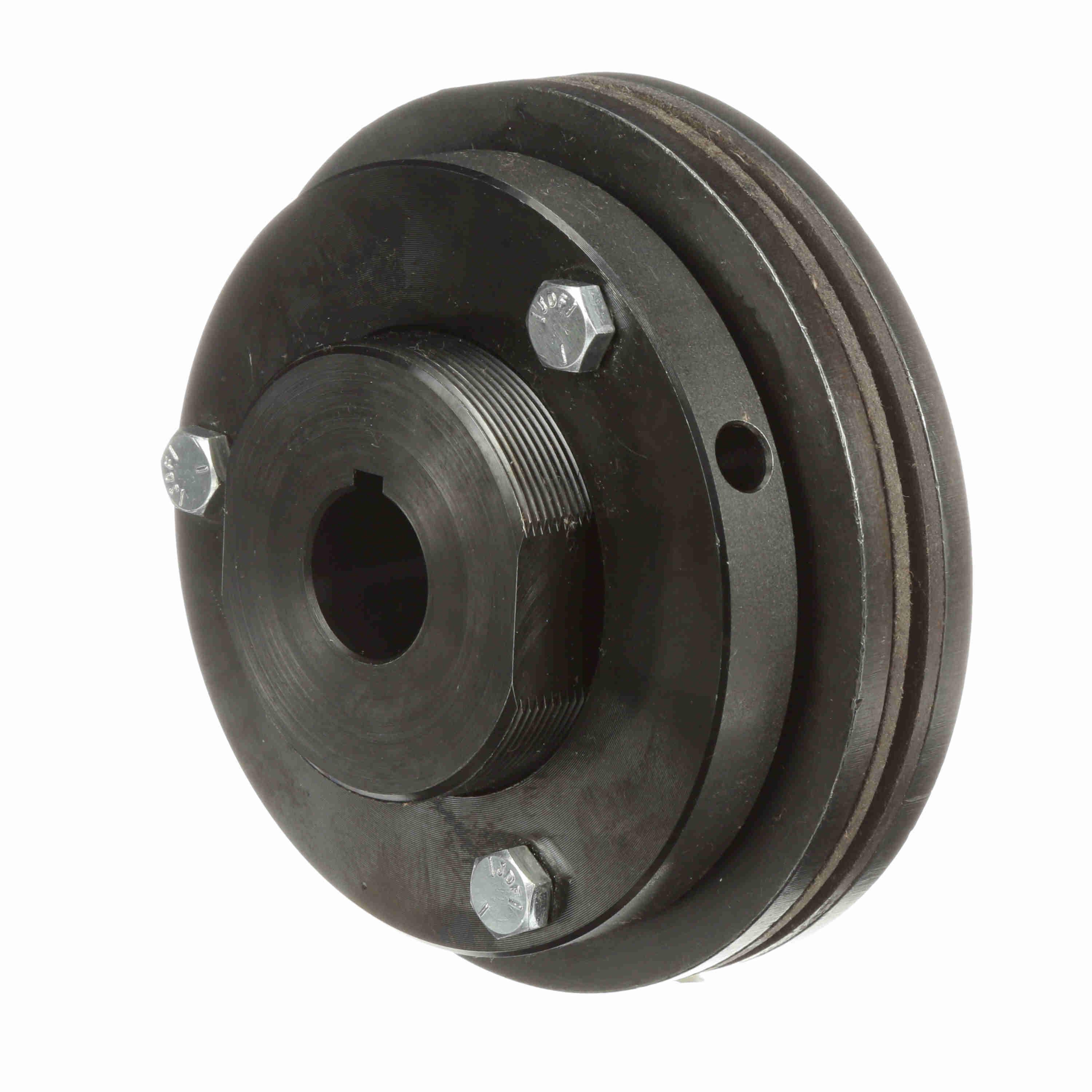

Browning® 1296482 T55L Automatic Torque Limiter, 1 in Finished Bore, 5-1/2 in OD, 3800 in-lb (1-Spring)/6800 in-lb (2-Spring) Torque
The Browning® torque limiter is a spring loaded friction style torque overload device. The load on the friction pads is adjusted so that the process torque is transmitted. An overload torque in excess of the set torque causes the unit to slip. This prevents overloads from transmitting through the system. When the load falls below the set level, the torque limiter stops slipping and transmits the torque. A torque limiter does not maintain phase between input and output. Although it is a similar size, the Browning® torque limiter has a higher torque density than the Morse® torque limiter. It is also well suited for applications that trip infrequently at high loads. It is most often used in a chain drive. A specially machined sprocket is inserted between the friction pads and acts as the slip interface. Torque capacity is up to 8800 in-lb.
-
BrandBrowning®
-
UPC662289191741
-
Manufacturer Part Number1296482
-
CountryUSA
-
Maximum Speed1400 rpm
-
Torque Rating3800 in-lb (1-Spring)/6800 in-lb (2-Spring)
-
TypeAutomatic
-
Minimum Sprocket Teeth32 (NO. 50 Chain), 27 (NO. 60 Chain), 21 (NO. 80 Chain)
-
SeriesT55L
-
Outside Diameter5-1/2 in
-
Bore Diameter1 in
-
Bore TypeFinished
-
Overall Length3-1/4 in
- Helps prevent machine and product damage caused by shock loads, overloads or machine jams
- Adjustable spring pressure determines overload setting and reengages drive when overload condition subsides
- Reversible and no need to reset
- Non asbestos pads
- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Browning torque limiters slip under excessive load but automatically carry the desired load after the excess has been removed
- Browning torque limiters are friction type devices that reset to any position
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part NumberT55LX1
-
UNSPSC41114510
-
Package DescriptionEACH
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
