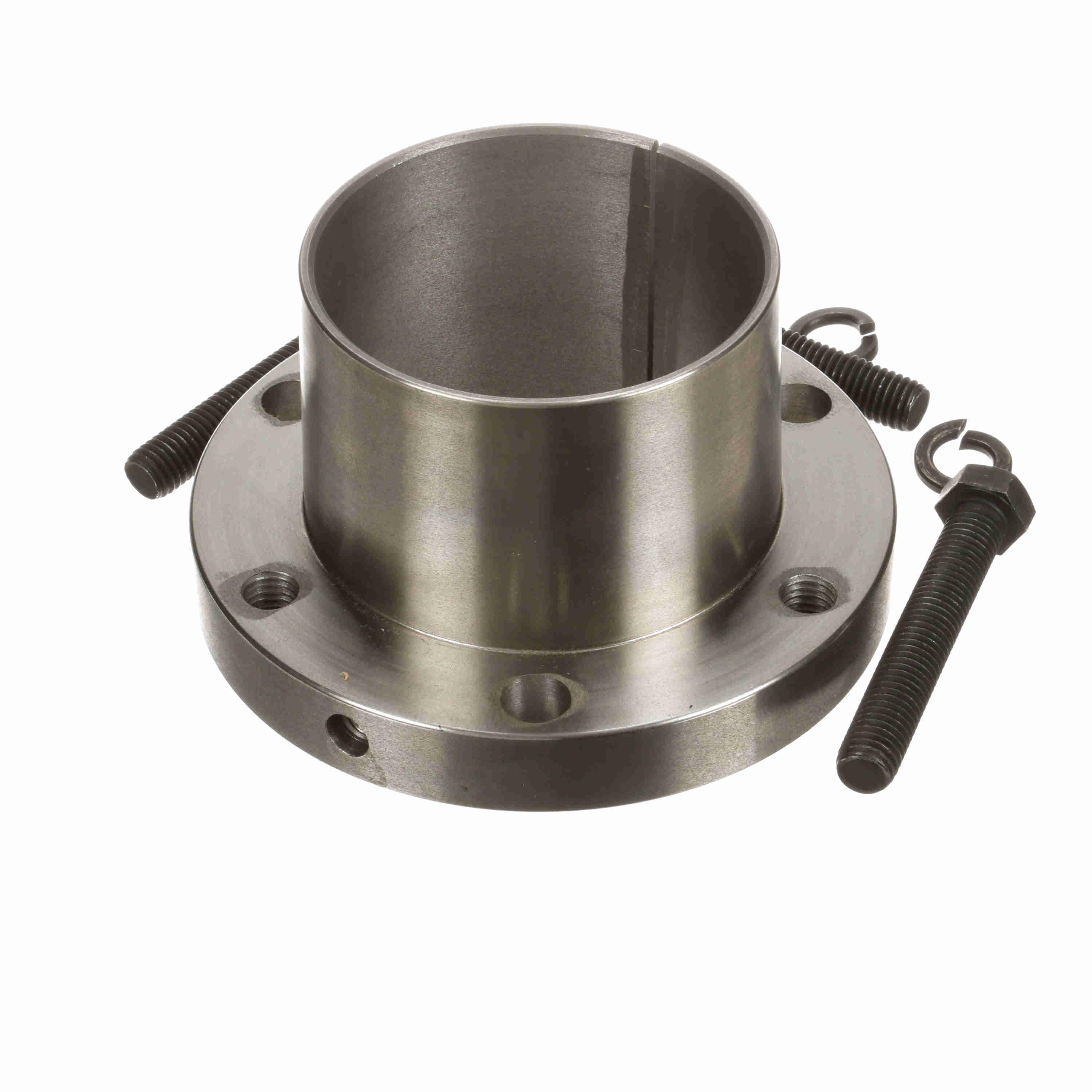

Browning® 1074129 Type F Q-D® Bushing, 4 in Dia Bore, 4-3/8 in Dia Barrel, 6-5/8 in Dia Flange, 3.68 in OAL, Cast Iron
Browning® 1074129 Type F Q-D® Bushing, 4 in Dia Bore, 4-3/8 in Dia Barrel, 6-5/8 in Dia Flange, 3.68 in OAL, Cast Iron
-
BrandBrowning®
-
UPC662289390335
-
Manufacturer Part Number1074129
-
CountryUSA
-
MaterialCast Iron
-
Flange Diameter6-5/8 in
-
Flange Thickness15/16 in
-
Torque Rating30000 in-lb
-
TypeType F
-
Screw Size9/16-12 x 3-5/8 in
-
Number of Bolt Holes3
-
Barrel Diameter4-3/8 in
-
Keyway Size1 x 1/2 in
-
Bolt Circle Diameter5-5/8 in
-
Bore Diameter4 in
-
Overall Length3.68 in
-
Suitable For Use WithGearbelt® Sheaves, Sprockets and Pulleys
- Reverse mounting ability bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- 3/4 in/ft taper on barrel
- Self-locking taper provides the highest degree of mechanical locking product to product
- Conventional mounting
-
Alternative Part NumberF 4
-
UNSPSC31171516
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Instruction/Installation Manual
-
Warranty Information
