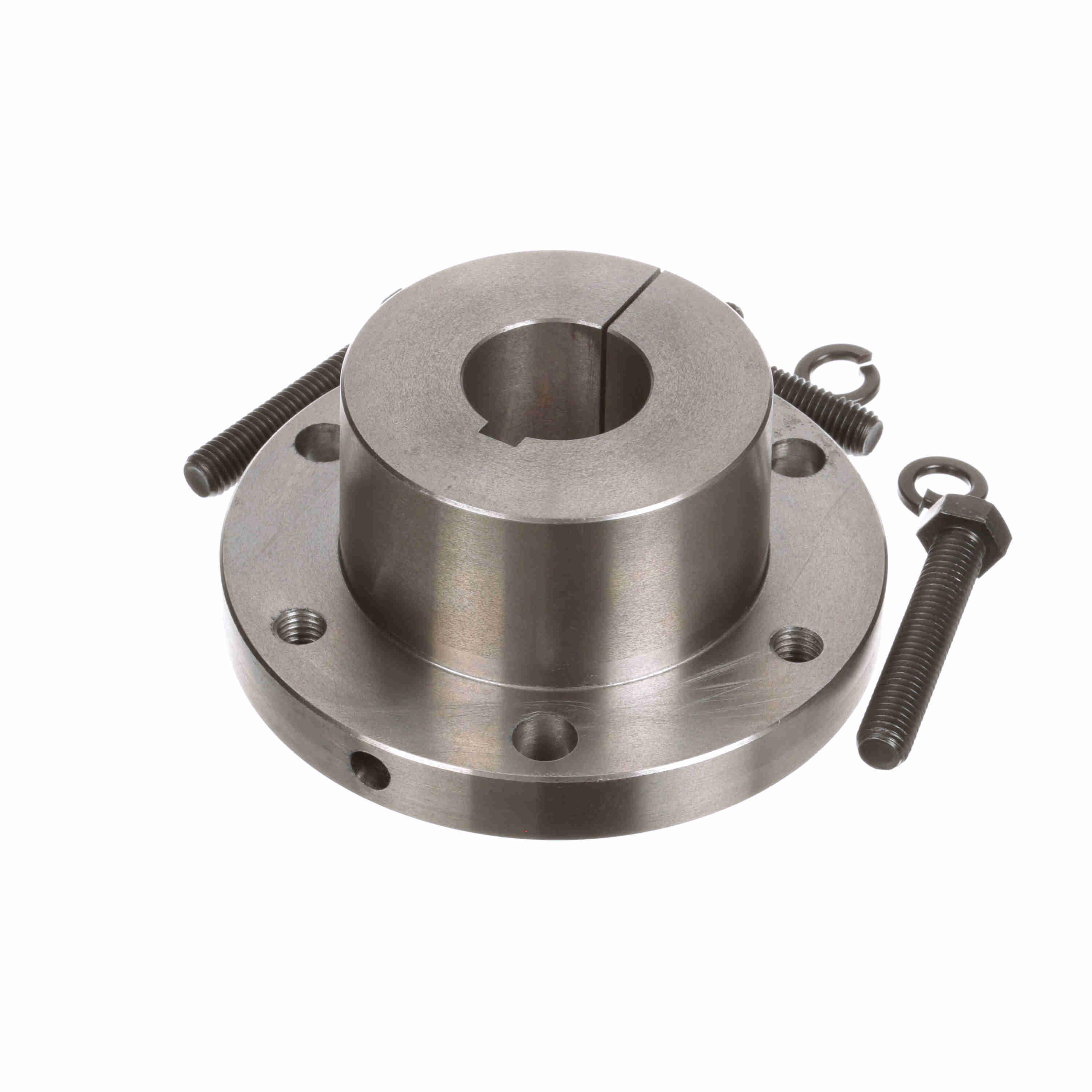

TB Wood's® Sure-Grip® E158 Standard QD Bushing, 1-5/8 in Dia Bore, 3.834 in Dia Barrel, 6 in Dia Flange, 2-5/8 in OAL, Cast Iron
Sure-Grip® quick detachable bushings are easy to install and remove. Split-through flange and taper provide a true clamp on the shaft that is equivalent to a shrink fit. All sizes except JA and QT have a set screw over the key to help maintain the bushing's position on the shaft until the cap screws are securely tightened. Versatile Sure-Grip® bushings permit the mounting of the same mating part on shafts of different diameters and the mounting of different sheaves on the same shaft using the same bushing.
-
BrandTB Wood's®
-
UPC698672702072
-
Manufacturer Part NumberE158
-
CountryUSA
-
MaterialCast Iron
-
Flange Diameter6 in
-
Flange Thickness3/4 in
-
Torque Rating20000 in-lb
-
TypeStandard
-
Screw Size1/2-13 x 2-3/4 in
-
Number of Bolt Holes3
-
Barrel Diameter3.834 in
-
Keyway Size3/8 x 3/16 in
-
Bolt Circle Diameter5 in
-
Bore Diameter1-5/8 in
-
Overall Length2-5/8 in
-
Suitable For Use WithBrowning® Sheaves, Sprockets and Pulleys
- Size E bushing
- 6-hole drilling makes installation and removal quick and easy
- Keyseat 180 deg from split, precise taper provides proper wedging action
- Saw cut through flange and taper to provide a true clamp fit
- Cap screws used to secure bushings to sheave and to remove bushing from sheave
- Permit four-way mounting
- Easy installation and removal
-
UNSPSC31171605
-
Alternative Part NumberE 1 5/8
-
Package DescriptionEACH
-
Warranty1 Year
-
Catalog
-
Instruction/Installation Manual
