Gates® Power Transmission Super HC® PowerBand® 2/3V630 Heavy Duty Non-Notched Raw Edge V-Belt, 3V Section, 3/8 in W Top, 63 in L Outside, 21/64 in THK, Chloroprene
Combines the strength of a wrapped belt construction with the economies of a narrow section V-belt. Transmits more power in a given space and allows more compact drive design than classical section V-belts. In short, it offers you more power and considerably reduces the space needed. This significantly cuts the overall drive cost. Super HC™ V-belts also have exclusive Gates construction features for longer life on your drives.
-
BrandGates® Power Transmission
-
UPC072053245547
-
Manufacturer Part Number2/3V630
-
CountryUSA|Canada
-
Temperature Range-30 to 180 deg F
-
Thickness21/64 in
-
MaterialChloroprene
-
Top Width3/8 in
-
Reinforced MaterialFlex-Bonded Polyester
-
TypeHeavy Duty Non-Notched Raw Edge
-
Minimum Pulley Diameter3.82 in
-
Section Size3V
-
Series9385
-
Number of Ribs2
-
Outside Length63 in

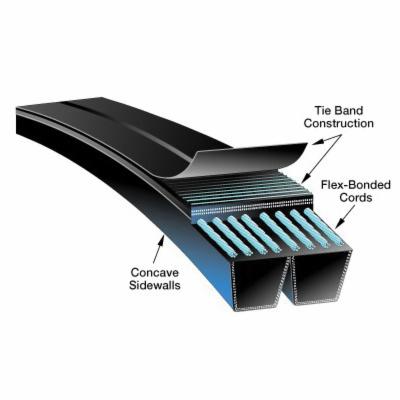

- Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
- The tie band assures high lateral rigidity, guiding the belt in a straight line and preventing it from coming off the drive
- Concave sidewalls provide proper cord support and full contact with the sheave groove for equal loading and uniform wear
-
Alternative Part Number93852063
-
UNSPSC26111801
-
Package DescriptionEACH
-
Standards/ApprovalsARPM/RMA IP-3-2/IP-3-3
-
Instruction/Installation Manual
-
Catalog
-
Specification Sheet
