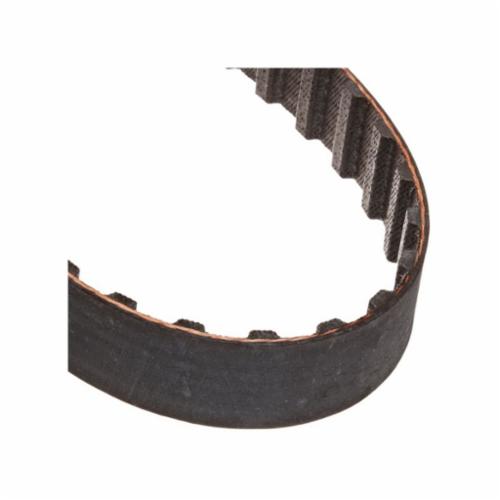

Gates® Power Transmission 240H075 PowerGrip® 9257 Type H Timing Belt, 48 Teeth, 1/2 in Pitch, 24 in OAL, 3/4 in W, Neoprene
The trapezoidal tooth profile of PowerGrip™ Timing belts offers a maintenance-free and economical alternative to conventional chain drives and is well suited for use in positioning applications.
-
BrandGates® Power Transmission
-
UPC72053565423
-
Manufacturer Part Number240H075
-
CountryUSA|Canada
-
Pitch1/2 in
-
Temperature Range-30 to 180 deg F
-
MaterialNeoprene
-
Reinforced MaterialFiberglass
-
TypeType H
-
Minimum Pulley Diameter3.13 in
-
Width3/4 in
-
SeriesPowerGrip® 9257
-
Number of Teeth48
-
Overall Length24 in
- The trapezoidal tooth profile makes this belt well suited for use in positioning applications
- Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation
- Neoprene body provides protection against grime, grease, oil, and moisture
- Nylon tooth facing provides a durable wear surface for longservice life
- Eliminates lubrication and re-tensioning to reduce maintenance and labor required on drives
-
Alternative Part Number92573100
-
UNSPSC26111800
-
Package DescriptionEACH
-
Standards/ApprovalsRMA Standard
-
Specification Sheet
-
Instruction/Installation Manual
-
Catalog
