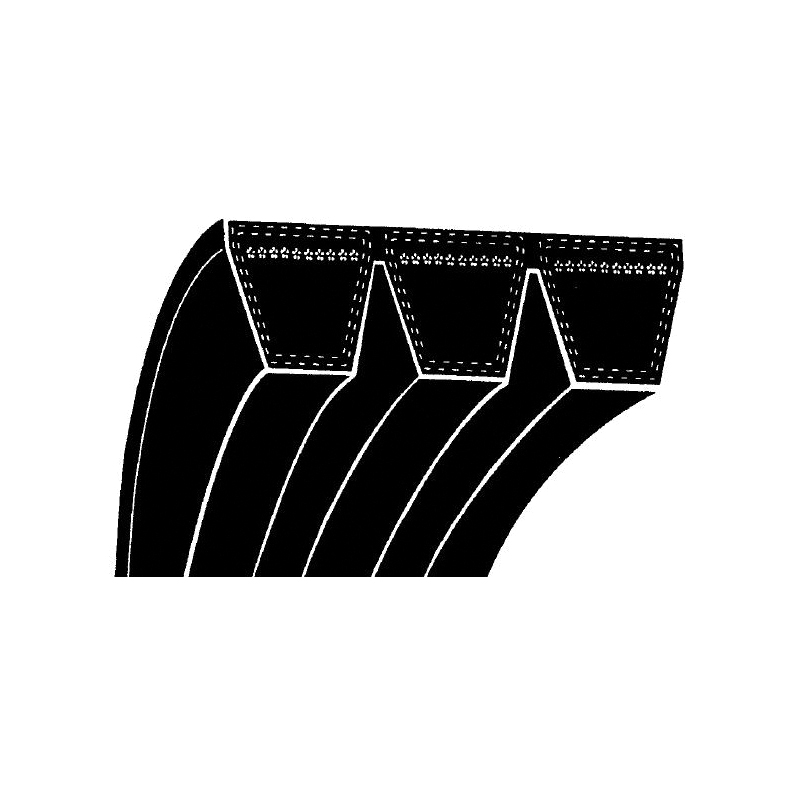

TB Wood's® 5/5VP1120 Non-Cogged Narrow Premium Banded V-Belt, 5V Section, 5/8 in W Top, 112 in L Outside, 17/32 in THK, Neoprene
Premium belts have the highest power density of any V-belt and stretch dramatically less than standard cross sections. That's why they're ideal for use on problem drives requiring high-impact strength and load-carrying power. Replaces several belts with the strength of a single belt. Banded belts feature a multiple layer tie band that provides excellent lateral rigidity to prevent belts from turning over or from coming off of the drive.
-
BrandTB Wood's®
-
UPC698672173414
-
Manufacturer Part Number5/5VP1120
-
CountryUSA
-
Temperature Range-30 to 180 deg F
-
Thickness17/32 in
-
MaterialNeoprene
-
Top Width5/8 in
-
Reinforced MaterialAramid
-
ColorBrown
-
TypeNon-Cogged
-
Minimum Pulley Diameter7.1 in
-
Section Size5V
-
Number of Ribs5
-
Outside Length112 in
- Clutching non-rubber surface cover allows momentary slippage due to excessive overloads without burning belts up
- Aramid tensile cords provide extraordinary strength and durability
- Virtually zero stretch eliminates the need for constant belt re-tensioning
- Chloroprene rubber compounds provide superb oil and heat resistance
- Specially-treated extra tough cover withstands slip and shear forces at peak loads without generating excessive heat
- Fewer belts needed resulting in less overhung load on bearings
- Reduced downtime and increased efficiency
-
UNSPSC26111801
-
Standards/ApprovalsARPM IP-22|PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Instruction/Installation Manual
-
Catalog
