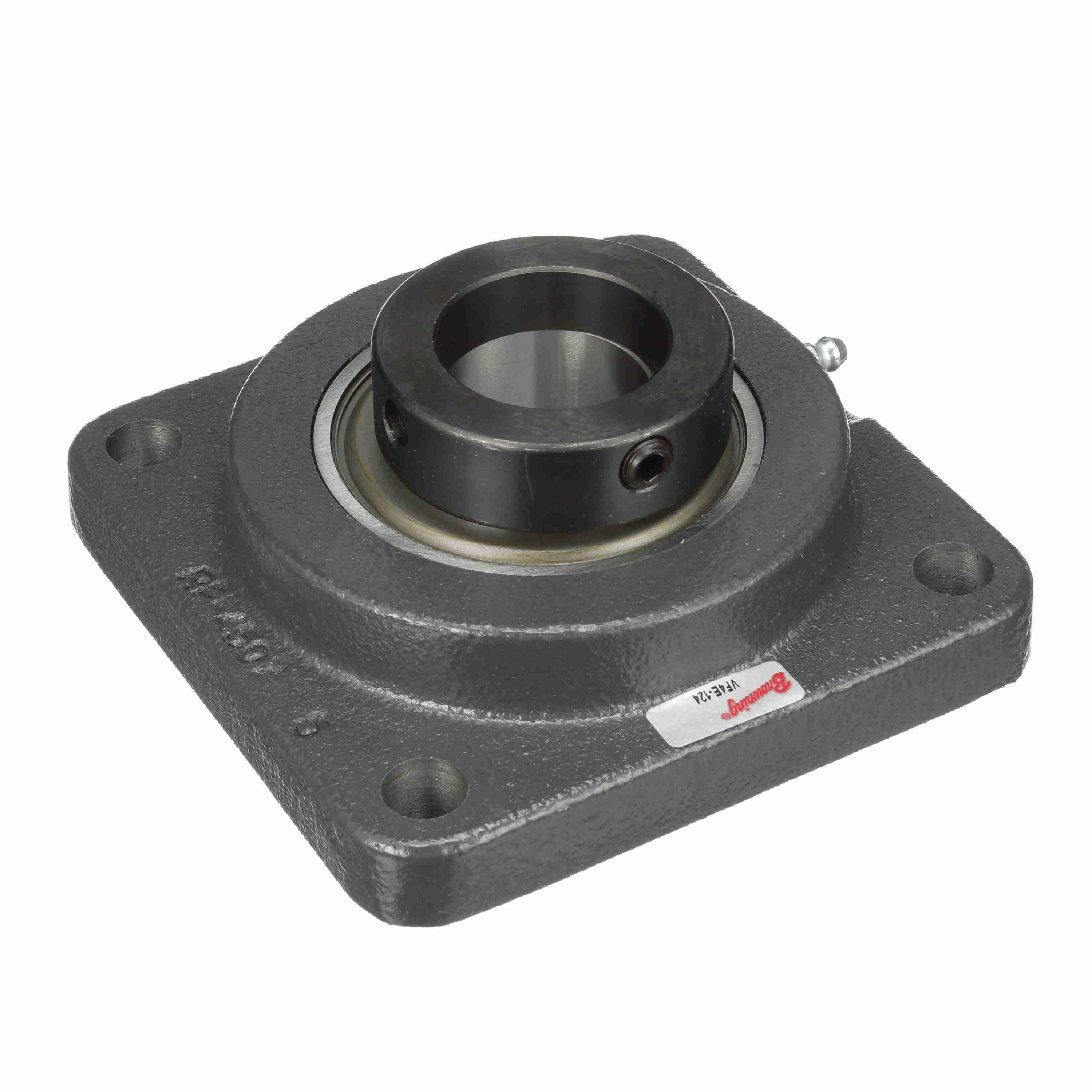

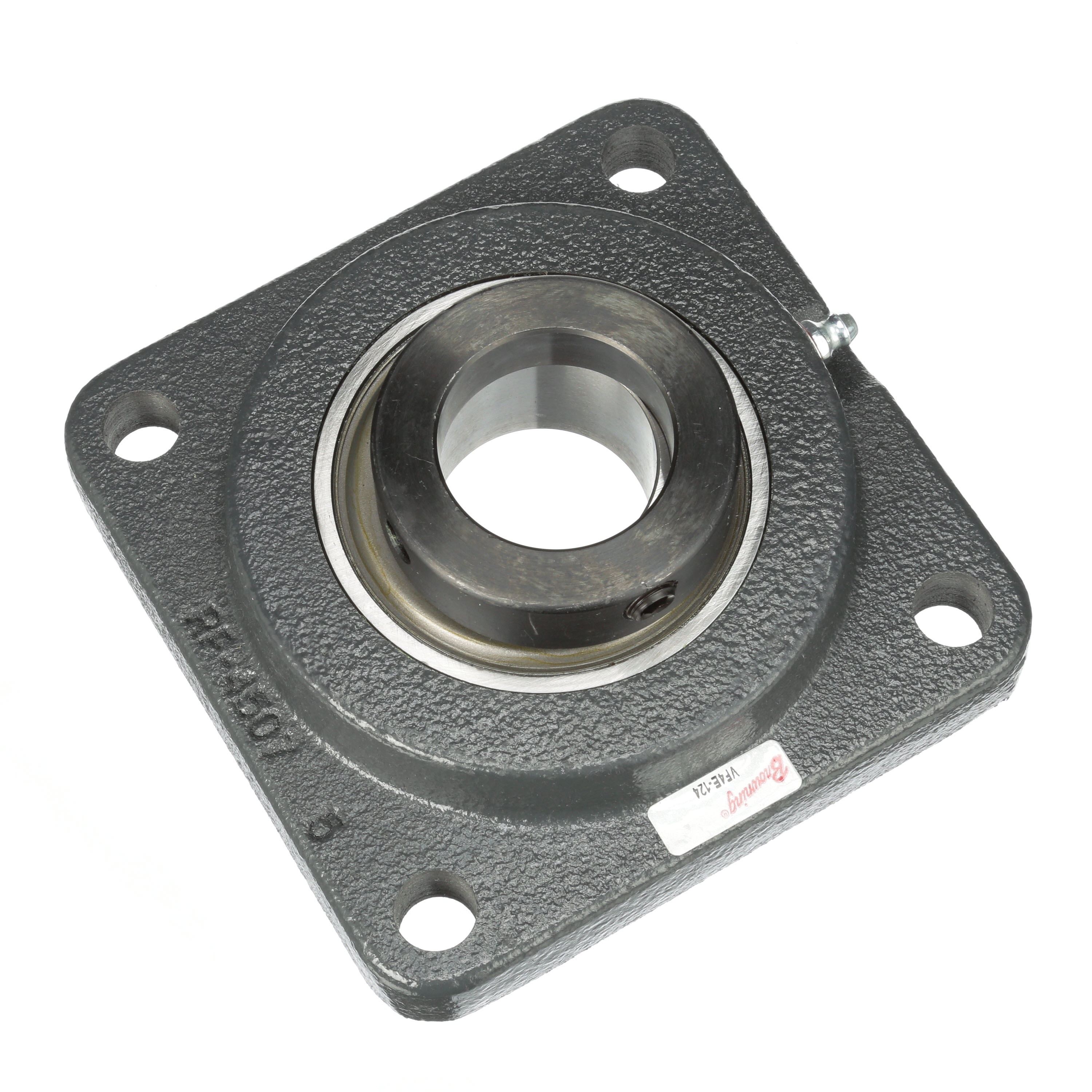

Browning® 767320 VF4E 100 Intermediate Duty Non-Expansion Round/Straight Bore Flange Mount Ball Bearing Unit, 1-1/2 in Dia Bore, 4 in L Bolt Center-to-Center, 4-Bolt Flange Mount, 5-1/8 in OAL/Dia
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289312955
-
Manufacturer Part Number767320
-
CountryUSA
-
Load Capacity7340 lb Dynamic/4467 lb Static
-
Locking DeviceEccentric Collar
-
Temperature Rating-20 to 200 deg F
-
FinishGray Painted
-
Flange Mounting Type4-Bolt
-
Maximum Speed2500 rpm
-
TypeIntermediate Duty Non-Expansion Round/Straight Bore
-
Seal MaterialNitrile Rubber
-
SeriesVF4E 100
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length4 in
-
Bore Diameter1-1/2 in
-
Overall Depth2-7/64 in
-
Overall Height5-1/8 in
-
Overall Length/Diameter5-1/8 in
- Eccentric locking design incorporates a precision eccentric collar to mate with the inner ring extension for shaft hold
- Positive contact molded nitrile rubber single lip contact seal
- An anti-rotation rivet prevents outer ring creep or rotation within the housing
- Zone hardened inner race
- 52100 steel insert
- Eccentric locking designed for locking in direction of rotation
-
Alternative Part NumberVF4E-124
-
UNSPSC31171504
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
