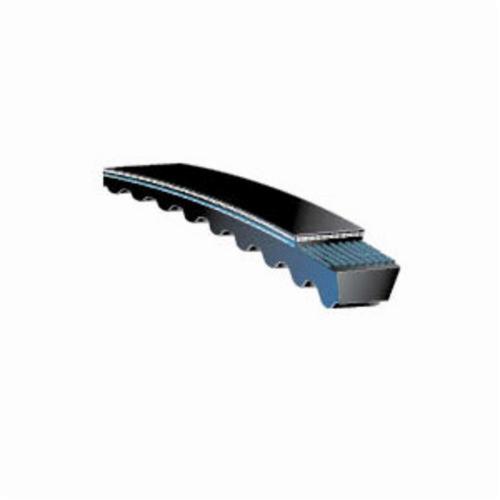

Gates® Power Transmission Tri-Power® V80® BX60 Heavy Duty V-Belt, 21/32 in W Top, 63 in L Outside, 13/32 in THK, BX Section, EPDM
Constructed with Gates® proprietary construction, this belt has a superior combination of flex and load carrying capacity, as well as less stretch resulting in less maintenance.
-
BrandGates® Power Transmission
-
UPC072053207842
-
Manufacturer Part NumberBX60
-
CountryUSA
-
Temperature Range-60 to 250 deg F
-
Thickness13/32 in
-
MaterialEPDM
-
Top Width21/32 in
-
Reinforced MaterialPolyester
-
ColorBlack
-
TypeHeavy Duty
-
Section SizeBX
-
Series9013
-
Number of Ribs1
-
Outside Length63 in
- Notches molded into the belt during manufacturing make this belt well suited for drives with smaller diameter sheaves
- Belt edge is machined for even sheave groove contact resulting in less slip and wear
- Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
- Patented EPDM Material construction provides -60 to 250 deg F temperature range to resist belt cracking
- Suitable for all industrial applications, particularly where small or sub-minimal sheave diameters are required
- Meets RMA oil and heat resistant standards
- Meets RMA static conductivity requirements
- Multi-duty recommended sheaves
- ARPM number: BX60
-
UNSPSC26101400
-
Standards/ApprovalsRMA Standard
-
Alternative Part Number90132060
-
Package DescriptionEACH
-
