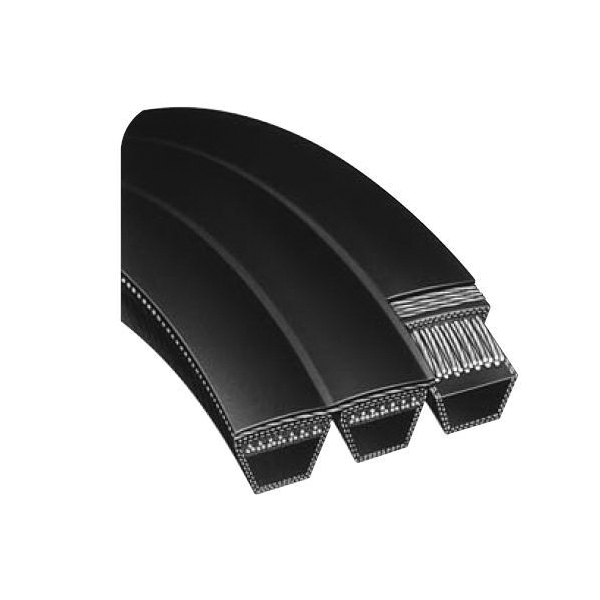

Bando Power King® 3B107 Classical Combo V-Belt, B Section, 2-1/4 in W Top, 110-3/4 in L Outside, 0.51 in THK, Rubber Impregnated Fabric
To resolve problem applications where belts are flipping over or jumping out of the sheaves, utilize Bando's series of Combo belts. The tie band assures lateral rigidity and guides the belts into the sheave grooves.
-
BrandBando
-
UPC649717338831
-
Manufacturer Part Number3B107
-
CountryUSA
-
Thickness0.51 in
-
MaterialRubber Impregnated Fabric
-
Top Width2-1/4 in
-
Reinforced MaterialPolyester
-
TypeClassical
-
Minimum Pulley Diameter5.4 in
-
Section SizeB
-
Number of Ribs3
-
Outside Length110-3/4 in
- The tie band, reinforced with high strength transverse tensile cords, is fully oil and heat resistant and permanently welds the individual belts together
- Utilize the premium quality of the Bando Power King®
- Assures equal load distribution in drives where high shock or pulsating loads cause belts to whip, flip over or jump out of the sheave grooves
- Ideal for use on vertical shaft drives
- Meets RMA standards for oil and heat resistance and static conductivity
-
Alternative Part NumberRB1073|3RB107
-
UNSPSC26111801
-
Package DescriptionEACH
-
Standards/ApprovalsARPM Standard|RMA IP-20
-
Warranty1 year
-
Instruction/Installation Manual
-
Catalog
