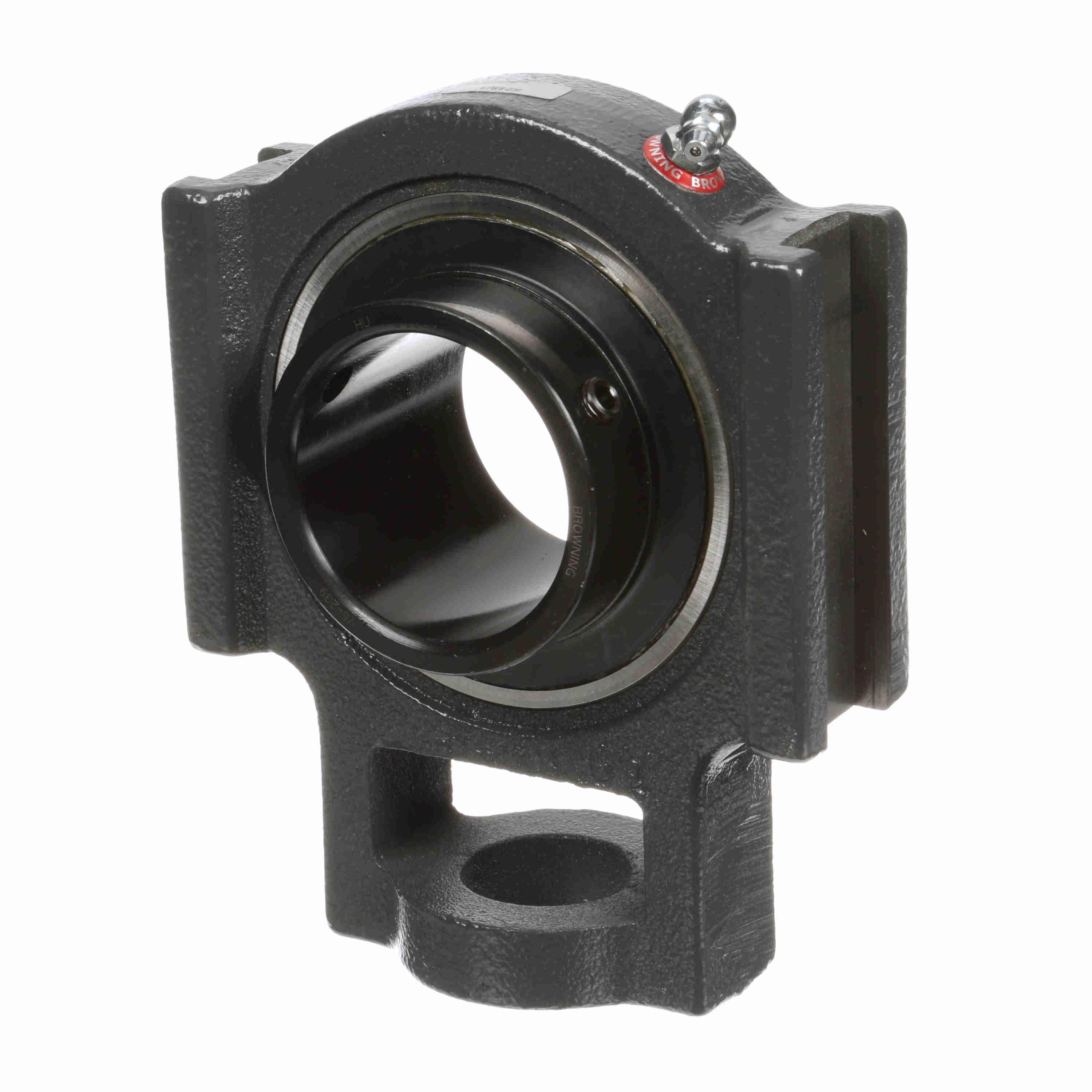

Browning® 767547 VTWS 200 Non-Expansion Normal Duty Take-Up Ball Bearing Unit, 2-7/16 in Dia Bore, 7-1/4 in L x 2-1/2 in W x 5-3/4 in H, 11789 lb Dynamic/8150 lb Static Load
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric, or BOA concentric locking collar. The contact seal, with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction. Depending on your preference, these bearings are available in inch and metric bore with a wide variety of cast iron, stamped steel or rubber mount housings or specific industry solutions as illustrated on the pages to follow.
-
BrandBrowning®
-
UPC662289528714
-
Manufacturer Part Number767547
-
CountryUSA
-
Load Capacity11789 lb Dynamic/8150 lb Static
-
Temperature Rating-20 to 200 deg F
-
FinishGray Painted
-
TypeNon-Expansion Normal Duty
-
Height5-3/4 in
-
Width2-1/2 in
-
SeriesVTWS 200
-
Bearing MaterialSteel
-
Length7-1/4 in
-
Bore Diameter2-7/16 in
-
Suitable For Use With18SF39, 9SF39, 12SF39 Frame
- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
- An anti-rotation rivet prevents outer ring creep or rotation, within the housing
- The rugged base design provides an excellent mounting foundation, this is integral to prevent sheet metal "buckling"
- All bearings are assembled with a controlled housing fit between the bearing outer ring and housing bore
- Semi-solid housing base
- Wide slot take-up housing type
- Sealmaster® has the industry's widest outer ring
- The Sealmaster® exclusive locking pin and dimple system provides a direct lubricant path into the bearing cavity and ball path instead of around a lubrication groove
- Sealmaster® incorporates a unique heat treat process that hardens the inner race only where it is needed under the ball path
- The Sealmaster® unique land riding metal retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
- Single lip contact seal consists of a nitrile rubber washer in metal shroud to shield the lip from large contaminants
- Powder coat epoxy cast iron housing_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal and flinger
-
Alternative Part NumberVTWS-239
-
UNSPSC31171533
-
Package DescriptionEACH
-
