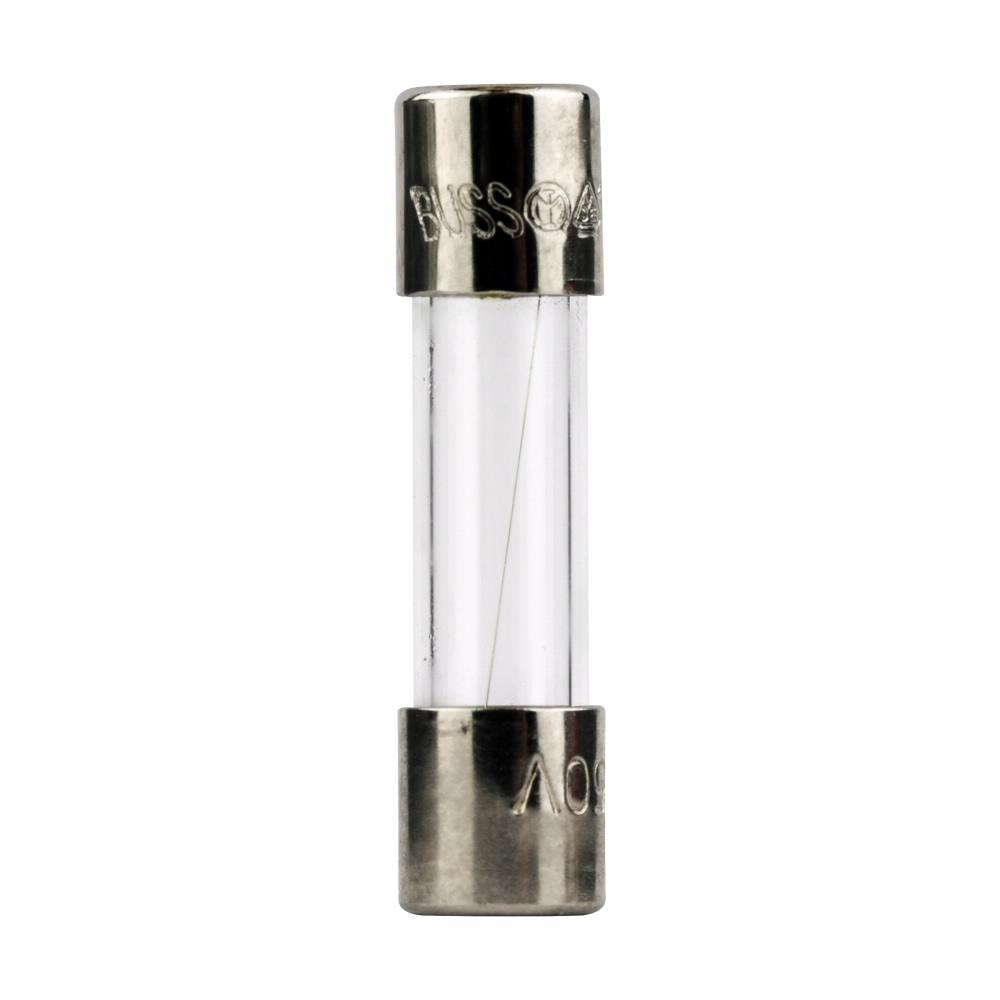

Bussmann S500-1-R Small Dimension Fast Acting Fuse, 1 A, 250 V AC/32 V DC, 35 A Interrupt, Cylindrical Body
Bussmann S500-1-R Small Dimension Fast Acting Fuse, 1 A, 250 VAC, 32 VDC, 35 A Interrupt, Cylindrical Body
-
BrandBussmann
-
UPC051712644037
-
Manufacturer Part NumberS500-1-R
-
CountryCanada
-
Terminal TypeFerrule
-
MaterialGlass
-
Frequency Rating50 Hz
-
Rejection/Non-RejectionNon-Rejection
-
Response Time60 min, 30 min, 300 ms, 50 ms, 20 ms, 10 ms, 2 s
-
TypeSmall Dimension
-
Mounting TypeClip/Holder
-
Voltage Rating250 V AC/32 V DC
-
Amperage Rating1 A
-
SeriesS500
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating35 A
-
Body Size5.2 mm Dia x 20 mm H
-
Body TypeCylindrical
-
ElementSingle
- Fast acting for maximum protection
- Low breaking capacity
- Nickel plated brass end caps
- Nickel plated end caps
- 35 A at 250 VAC interrupt rating
-
Alternative Part Number9491977
-
UNSPSC39121607
-
IDEA Index ID9491977
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|IEC 60127-2|cULus Guide JDYX, File No. E19180,2, JDYX8|CSA File No. 1803366|CCC File No. 2005010207155694|BSI File No. KM55676|VDE File No. 40014109|SEMKO File No. 414552|IMQ File No. CA03.00097
-
