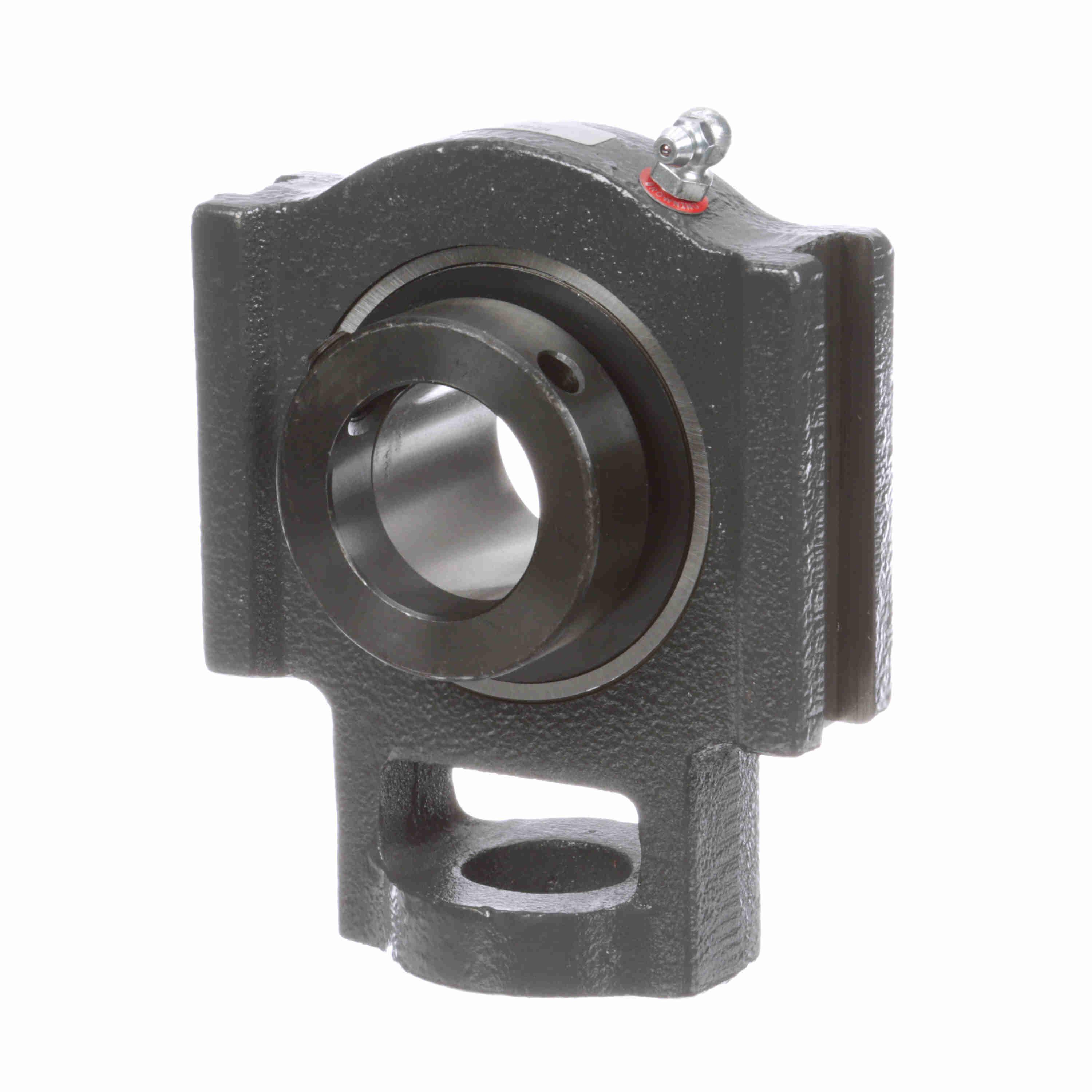

Browning® 767658 VTWE Non-Expansion Normal Duty Take-Up Ball Bearing Unit With Seal Flinger, 1-1/2 in Dia Bore, 5-19/32 in L x 2-1/8 in W x 4-1/2 in H, 7340 lb Dynamic/4467 lb Static Load
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289528219
-
Manufacturer Part Number767658
-
CountryUSA
-
Load Capacity7340 lb Dynamic/4467 lb Static
-
Temperature Rating-20 to 200 deg F
-
FinishBlack Oxide Coated
-
TypeNon-Expansion Normal Duty
-
Height4-1/2 in
-
Width2-1/8 in
-
SeriesVTWE
-
Bearing MaterialSteel
-
Length5-19/32 in
-
Bore Diameter1-1/2 in
-
Suitable For Use With18SF31, 3SF31, 6SF31, 9SF31, 12SF31 Frames
- Eccentric locking device
- Powder coat epoxy cast iron housing
-
Alternative Part NumberVTWE-224
-
UNSPSC31171516
-
Package DescriptionEACH
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
