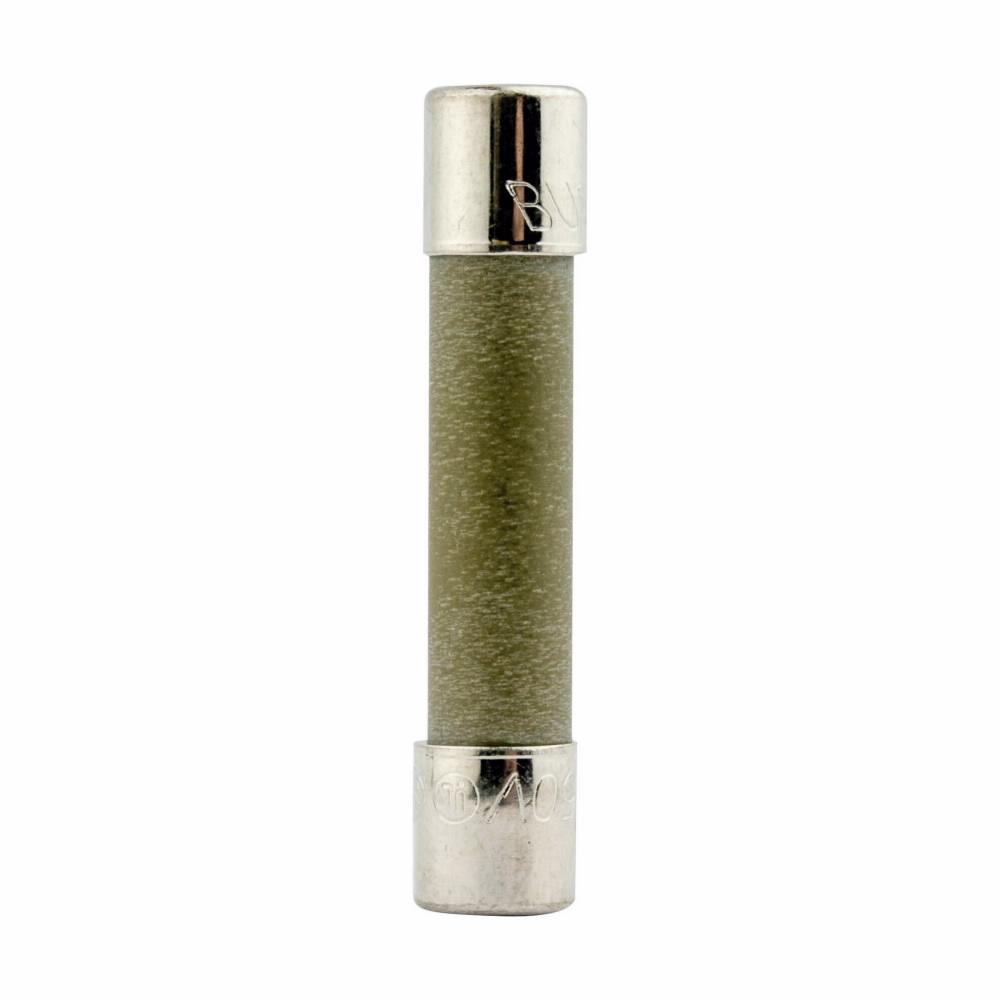

Edison ABC-8 Electronic Small Dimension Fast Acting Fuse With Nickel Plated Brass End Cap, 8 A, 250 VAC, 125 VDC, 200 A, 10 kA Interrupt, Cylindrical Body
Edison ABC-8 Electronic Small Dimension Fast Acting Fuse With Nickel Plated Brass End Cap, 8 A, 250 VAC, 125 VDC, 200 A, 10 kA Interrupt, Cylindrical Body
-
BrandEdison
-
UPC051712700085
-
Manufacturer Part NumberABC-8
-
CountryUSA
-
Terminal TypeFerrule
-
MaterialCeramic
-
Response Time4 hr, 60 min, 120 s
-
TypeElectronic Small Dimension
-
Mounting TypeHolder
-
Voltage Rating250 V AC/125 V DC
-
Amperage Rating8 A
-
SeriesABC
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating200 A, 10 kA
-
Body Size1/4 in Dia x 1-1/4 in L
-
Body TypeCylindrical
-
ElementSingle
- Ceramic body allows for higher amp/volt rating combinations
- 200 A at 250 VAC, 10 kA at 125 VAC/VDC interrupt rating
- 4 hr minimum at 100%, 60 min maximum at 135%, 120 s maximum at 200% response time
-
Alternative Part Number8407052
-
UNSPSC39121609
-
IDEA Index ID8407052
-
Package DescriptionEACH
-
Standards/ApprovalsCE Certified|Standard 248-14|UL Listed Guide JDYX|UL File No. E19180|CSA Class 1422-01/1422-30|CSA File No. 53787
-
