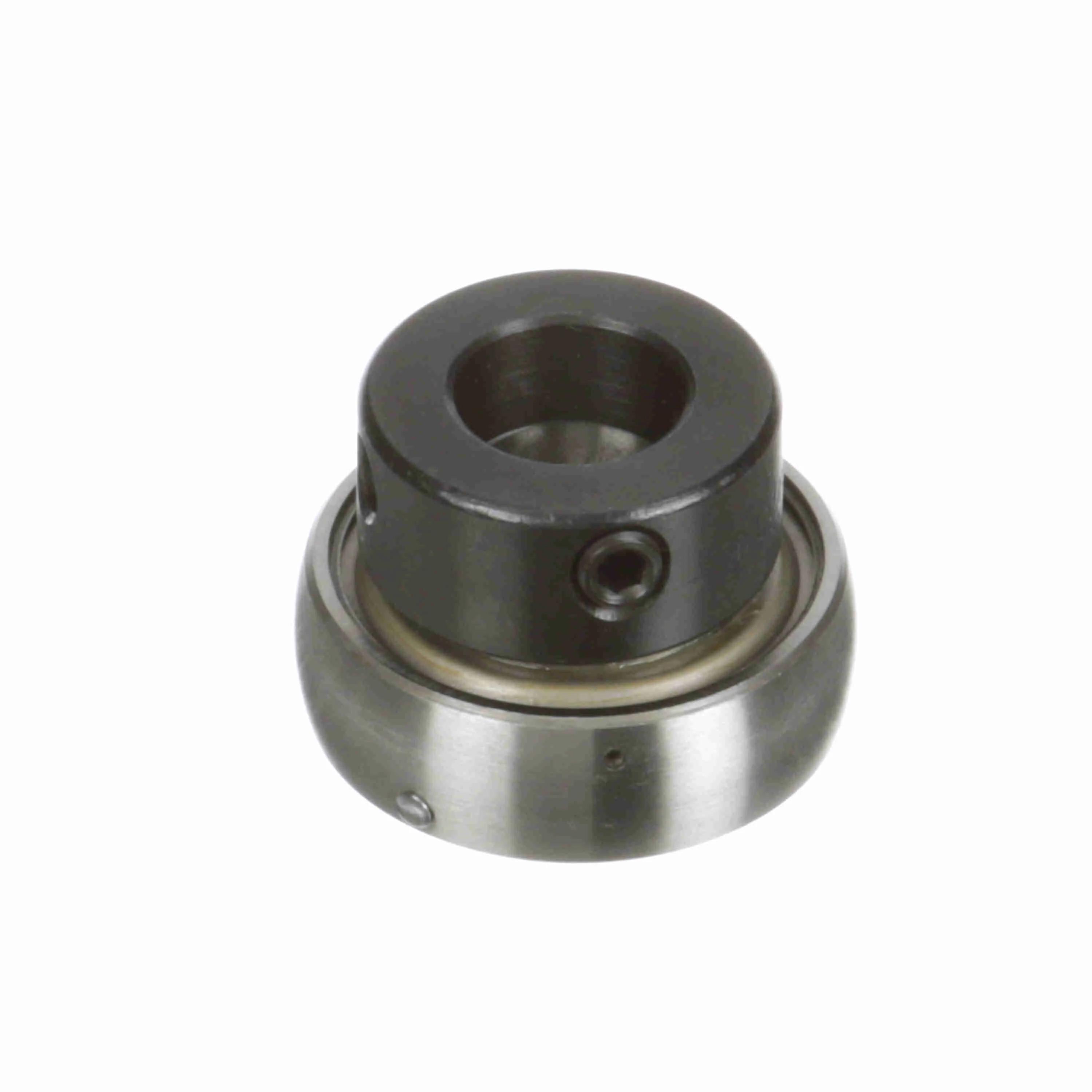

Browning® 767956 VE Series Light Duty Straight Bore Ball Bearing Insert, 5/8 in Dia Bore, 1.575 in OD, 1.188 in W, 2108 lb Dynamic/1117 lb Static Load
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289551095
-
Manufacturer Part Number767956
-
CountryUSA
-
Load Capacity2108 lb Dynamic/1117 lb Static
-
Cage MaterialPlastic
-
Temperature Rating-20 to 200 deg F
-
FinishBlack Oxide Coated
-
Maximum Speed5000 rpm
-
Closure TypeDouble Seal
-
TypeLight Duty Straight Bore
-
Width1.188 in
-
SeriesVE Series
-
Bearing MaterialSteel
-
Outside Diameter1.575 in
-
Bore Diameter5/8 in
- Eccentric locking device
- Contact seal
- Thru hardened inner race heat treat method
- Lithium complex NLGI #2 grease with an EP additive
- Spherical outer diameter
-
Alternative Part NumberVE-110
-
UNSPSC31171504
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
-
Catalog
-
Instruction/Installation Manual
