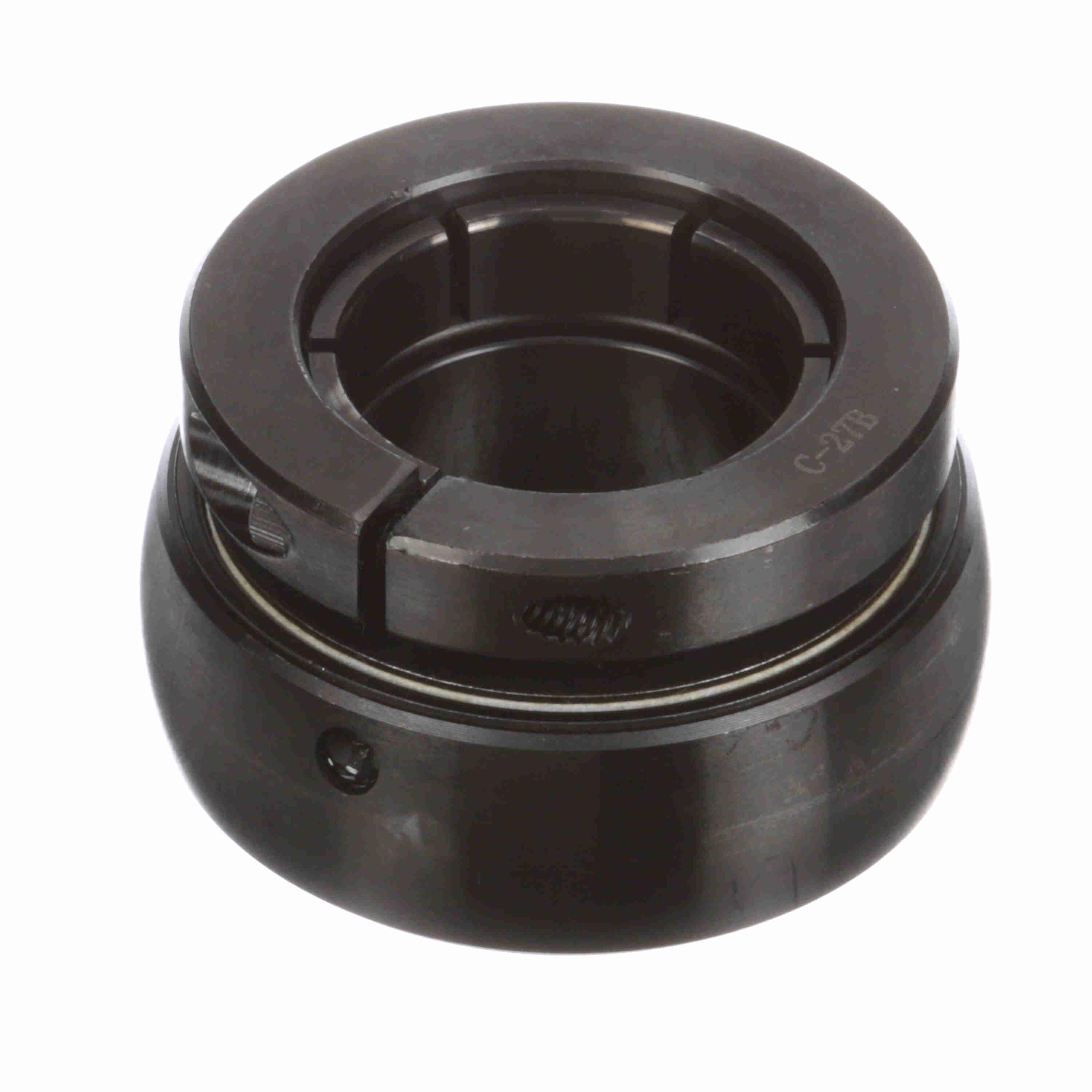

Sealmaster® 705320 Round Bore Standard Duty Ball Bearing Insert, 1-3/4 in Dia Bore, 3.3465 in OD, 2 in W, 7901 lb Dynamic/5139 lb Static Load
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.
-
BrandSealmaster®
-
UPC662461029183
-
Manufacturer Part Number705320
-
CountryUSA
-
Load Capacity7901 lb Dynamic/5139 lb Static
-
Cage MaterialBrass
-
Temperature Rating-20 to 220 deg F
-
FinishOxide Coated
-
Maximum Speed5300 rpm
-
Closure TypeDouble Seal
-
TypeRound Bore Standard Duty
-
Seal MaterialFelt
-
Width2 in
-
Bearing MaterialChrome Steel
-
Outside Diameter3.3465 in
-
Bore Diameter1-3/4 in
- Wide outer ring
- Lock pin and dimple system
- The felt seal with flinger provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
- Skwezloc® is a concentric locking collar clamp design that results in near perfect concentricity of the shaft to the bearing bore and maintains near perfect ball path roundness
- Zone hardened inner race
- Land riding retainer
- Lithium complex NLGI #2 grease with an EP additive
-
Alternative Part Number2-112T
-
UNSPSC31171537
-
Package DescriptionEACH
-
Instruction/Installation Manual
-
Specification Sheet
