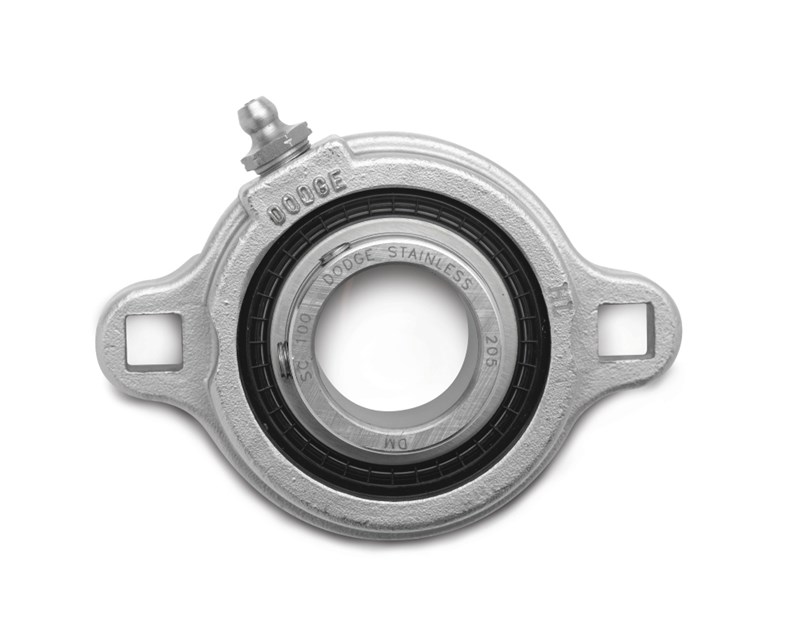

Dodge® 124648 206 Intermediate Duty Non-Expansion Single Lip Flange Mount Ball Bearing Unit, 1-3/16 in Dia Bore, 3.56 in L Bolt Center-to-Center, 2-Bolt Base Flange Mount, 4.44 in OAL/Dia
Dodge® 124648 206 Intermediate Duty Non-Expansion Single Lip Flange Mount Ball Bearing Unit, 1-3/16 in Dia Bore, 3.56 in L Bolt Center-to-Center, 2-Bolt Base Flange Mount, 4.44 in OAL/Dia
-
BrandDodge®
-
UPC782475510801
-
Manufacturer Part Number124648
-
CountryUSA
-
Load Capacity4368 lb Dynamic/2538 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating225 to 400 deg F
-
FinishPowder Coated
-
Flange Mounting Type2-Bolt Base
-
Maximum Speed6500 rpm
-
TypeIntermediate Duty Non-Expansion Single Lip
-
Seal MaterialNitrile Rubber
-
Series206
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length3.56 in
-
Bore Diameter1-3/16 in
-
Overall Depth1.45 in
-
Overall Height3-1/4 in
-
Overall Length/Diameter4.44 in
- 65 deg set screw locking system
- Precision-hardened and honed inner and outer rings
- Wide inner ring design
- Cooler operation for longer grease life
- Patented dual guard seal
- Stronger and more flexible cage
- Simplified anti-rotation device
- Light duty flange
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 100939306 |
| Motion Industries | 00582940 |
-
Alternative Part NumberLFT-SC-103
-
UNSPSC31171504
-
Package DescriptionEACH
-
WarrantyLimited
-
