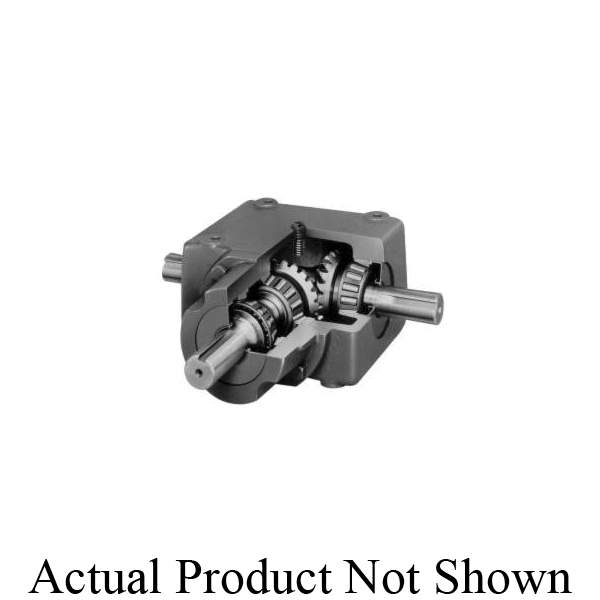

Browning BEVEL GEAR REDUCERS BRW 12-HSB-1-LR-10
Browning® cast iron bevel and spiral bevel gear reducers are constructed of rugged cast iron housings. These housings are line bored for precise gear and bearing alignment. To offer maximum performance, these reducers are designed with tapered roller and ball bearings. Browning® cast iron bevel and spiral bevel gear reducers are available in six sizes and ratios. These range from 1:1 to 3:1, with speed-up ratios available. Torque capacity ranges from 99 to 5942 in-lb.
-
BrandBrowning®
-
UPC662289159970
-
Manufacturer Part Number1251073
-
CountryUSA
-
Centre Distance2-13/16 in
-
MaterialCast Iron
-
Torque Rating36.013 in-lb Input/28.81 in-lb Output
-
Gear Ratio1:1
-
TypeType LR
-
Mounting TypeSurface
-
Horsepower1 hp
-
Input Maximum Speed1750 rpm
-
Input Size1-1/4 in Dia x 2-1/2 in L
-
Input TypeShaft
-
Dimensions12-1/4 in L x 11-11/32 x 5-5/8 in H
-
Keyway Size1/4 x 1/8 in
-
Output Maximum Speed1750 rpm
-
Output Size1-1/4 in Dia x 2-3/8 in L
-
Efficiency80 %
-
Output TypeShaft
- Rugged cast iron housings, line bored for precise gear and bearing alignment
- Carburized alloy steel straight or spiral gears manufactured to AGMA standard for long life and quite operation
- Double lip contact oil seals ride on hardened plunge ground shafts for leak free operation
- Size 12 gear reducer
-
Alternative Part Number12HSB1-LR10
-
UNSPSC26111542
-
Package Description1/PK
-
Warranty1 Year
-
Specification Sheet
